USB-C supply unit 30W PD Metal - 19298.M

Pdf
Vimar - 19298.M - USB-C supply unit 30W PD Metal
Vimar - 19298.M - USB-C supply unit 30W PD Metal
19298.M

Arké Metal / Devices / USB power units

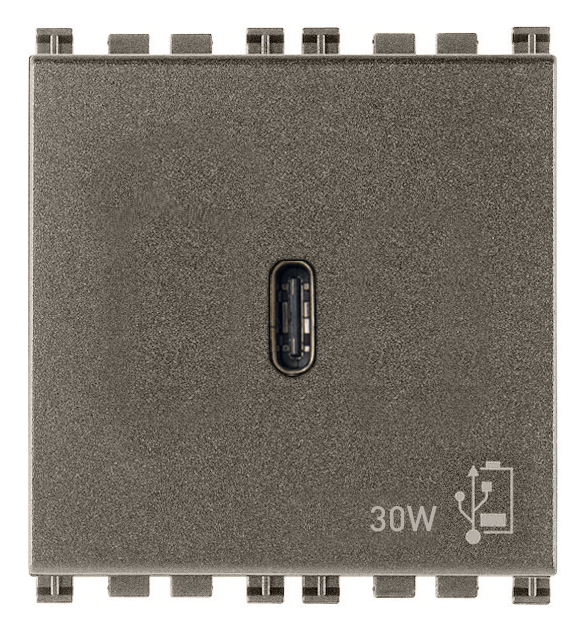

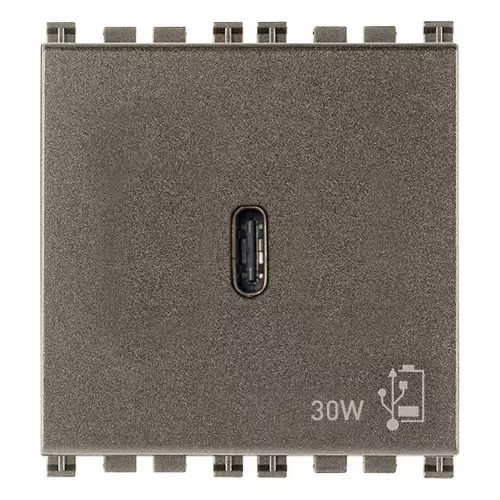

USB-C supply unit 30W PD Metal

  • Device which supports USB Power Delivery fast charge, which provides faster charge levels than conventional technologies

Product Status
3 - Active

Class group
Domestic switching devices
Class
USB power supply
Model
Other
Type of USB power supply
C
Number of outputs
1
Operating voltage
12000 - 24000 v
Frequency
50 - 60 HZ
Max. output current
3 mA
Output voltage
20 v
Connection type
Screwed terminal
Mounting method
Flush mounted (plaster)
Colour
Aluminium
RAL-number
9007
Height of device
4.900 mm
Min. depth of built-in installation box
37 mm
Suitable for degree of protection (IP)
IP40
Anti-bacterial treatment
No

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

43. UKCA mark - Great Britain

44. USB-IF mark

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352704183
1 NR
6x5.4x5.2 [cm]
77.2 [g]
Barcode Qty 10 NR
8007352704190
10 NR
28.1x13.1x6 [cm]
847.6 [g]
