TV-RD-SAT through-line male out.10dB gre - 19300.10

19300.10

Arké / Devices / 1-outlet TV/RD/SAT socket outlets

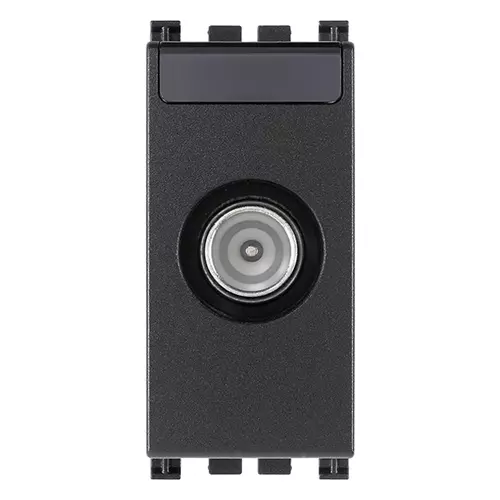

TV-RD-SAT through-line male out.10dB gre
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, through-line, with male connector, connection attenuation 10 dB, grey

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Video

• Arké lives in your time

---

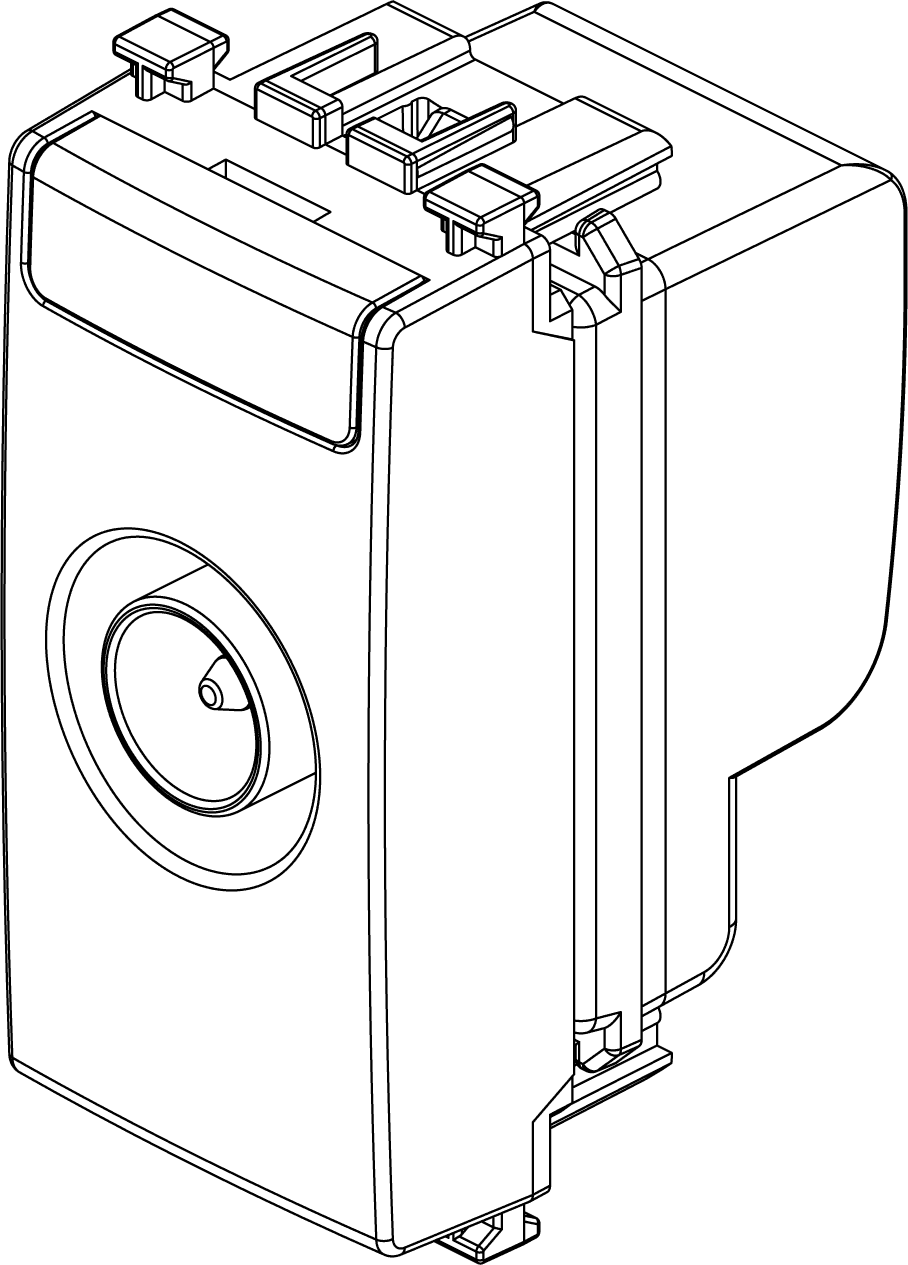

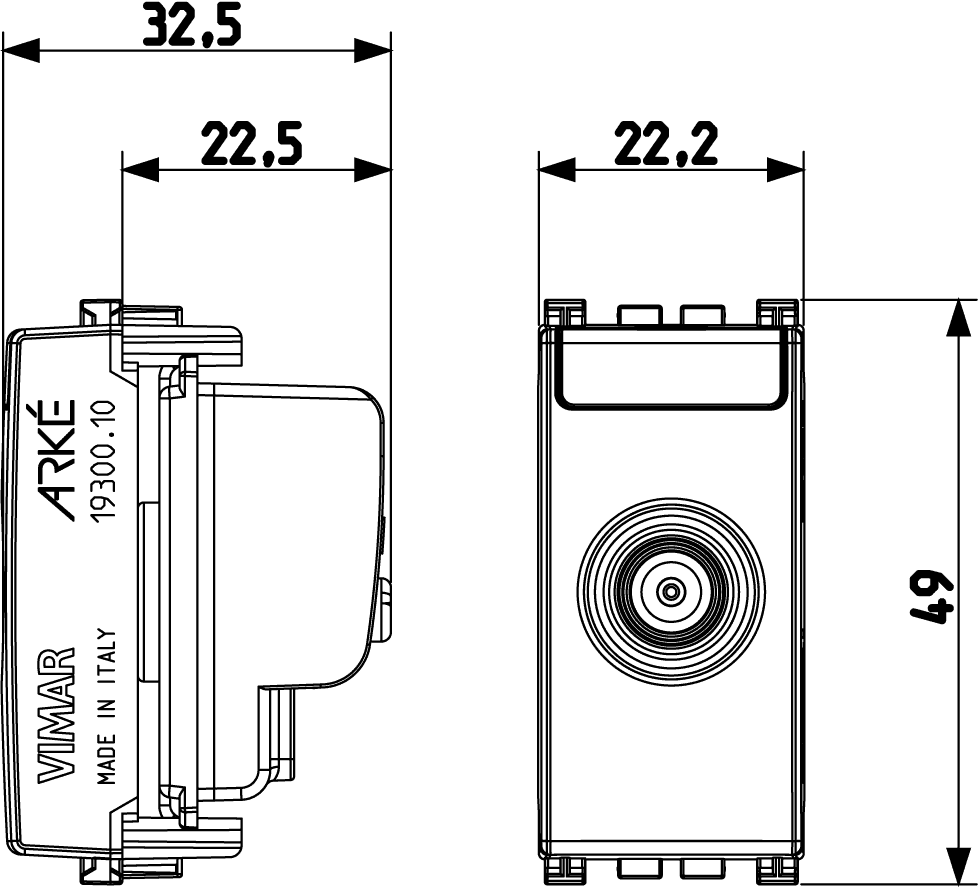

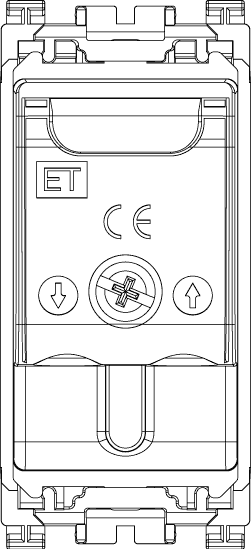

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
Loop-through socket

Cover
None

Tap loss at 860 MHz
10,60 dB

Tap loss at 2150 MHz
9,90 dB

Number of outlets
1

Through loss at 860 MHz
2,20 dB

Through loss at 2150 MHz
3,40 dB

Suitable for remote power supply
No

Type of fastening
Snap mounting (engagement)

Colour
Grey

RAL-number (similar)
7015

Surface protection
Untreated

Material
Plastic

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 20 NR

---

Barcode

8007352414549

1 NR

4.1x2.8x5.3 [cm]

50.1 [g]

8007352414556

20 NR

21.4x11.6x6 [cm]

1,061 [g]

8007352634947

200 NR

30.5x25.5x22.5 [cm]

11,070 [g]
