TV-RD-SAT through-line.out.2outs Metal - 19302.10.M

19302.10.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

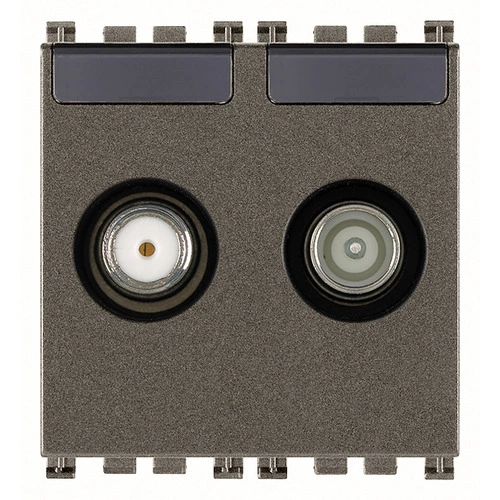

TV-RD-SAT through-line.out.2outs Metal
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, through-line, demix, 2 outputs with male (TV-RD) and female F-type (SAT) connectors, connection attenuation 10 dB, grey - 2 modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (905 kb)

Video

• Arké lives in your time

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
Loop-through socket

Cover
None

Tap loss at 860 MHz
11,20 dB

Tap loss at 2150 MHz
12,00 dB

Number of outlets
2

Suitable for remote power supply
No

Type of fastening
Snap mounting (engagement)

Colour
Aluminium

RAL-number (similar)
9007

Surface protection
Lacquered

Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

---

Barcode

8007352601390

1 NR

5.1x4.3x5.3 [cm]

79.2 [g]

8007352604216

10 NR

26.9x11.6x4.9 [cm]

855.7 [g]
