TV 40-862MHz through-line outlet 20dB w - 19314.B

Pdf
Vimar - 19314.B - TV 40-862MHz through-line outlet 20dB w
Vimar - 19314.B - TV 40-862MHz through-line outlet 20dB w

19314.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

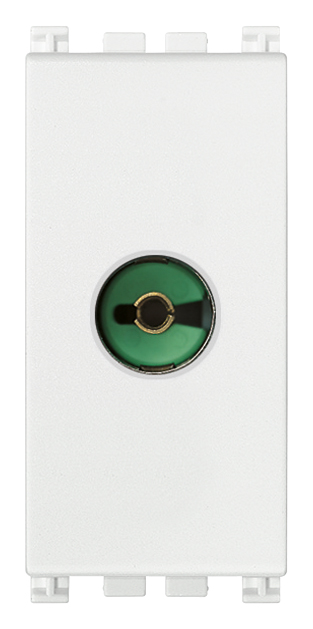

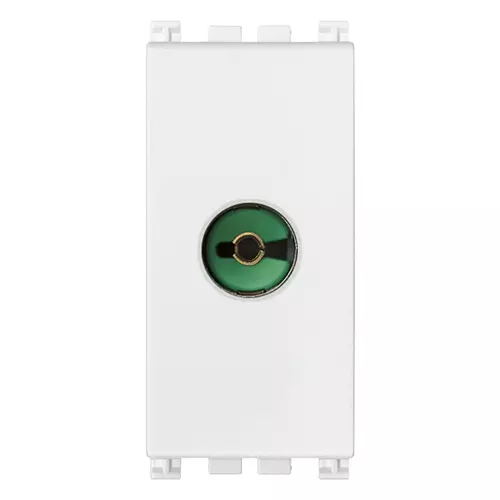

TV 40-862MHz through-line outlet 20dB w
Coaxial TV 40-862 MHz socket outlet, through-line, with IEC 60169-2 female connector, throughpass attenuation 3 dB, connection attenuation 20 dB, white

Product Status
2 - Will be discontinued

Class group
Antenna and satellite technique
Class
Antenna socket box
Model
Loop-through socket
Cover
None
Tap loss at 860 MHz
20,00 dB
Number of outlets
1
Through loss at 860 MHz
3,00 dB
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Colour
White
RAL-number (similar)
9016
Material
Plastic

00. CE Marking - EU

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352471443
1 NR

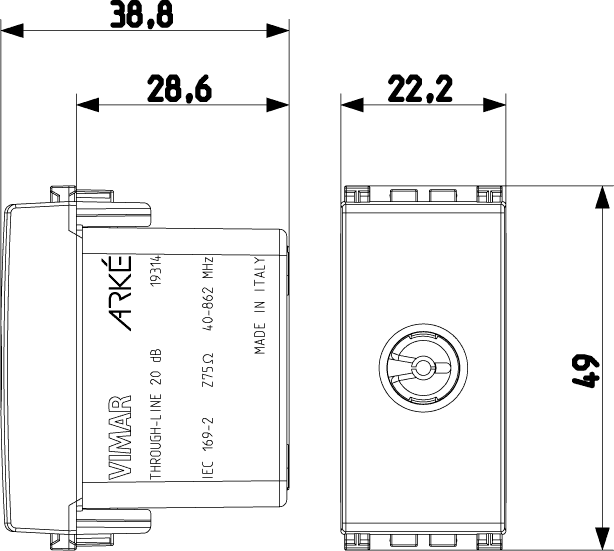

4.1x2.8x5.3 [cm]
28.2 [g]
Barcode Qty 20 NR
8007352471450
20 NR
21.4x11.6x6 [cm]
624.6 [g]
