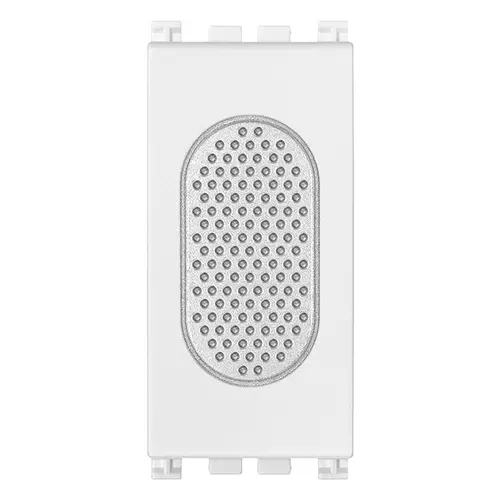

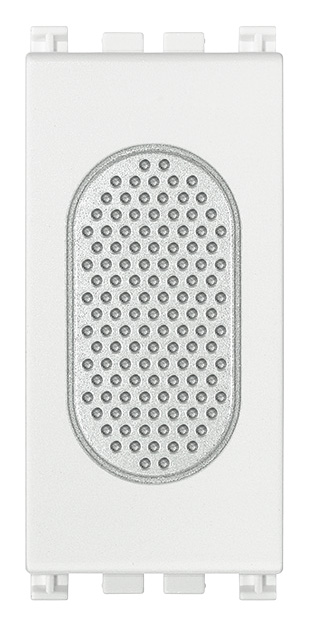

Bell/buzzer 120V 50-60Hz whiteCode 19372.SR.B
- 19372.SR.B
- Wiring devices / Traditional wiring devices / ARKÉ / Devices
- Bell/buzzer 120V 50-60Hz white
- Product Status
- 3 - Active

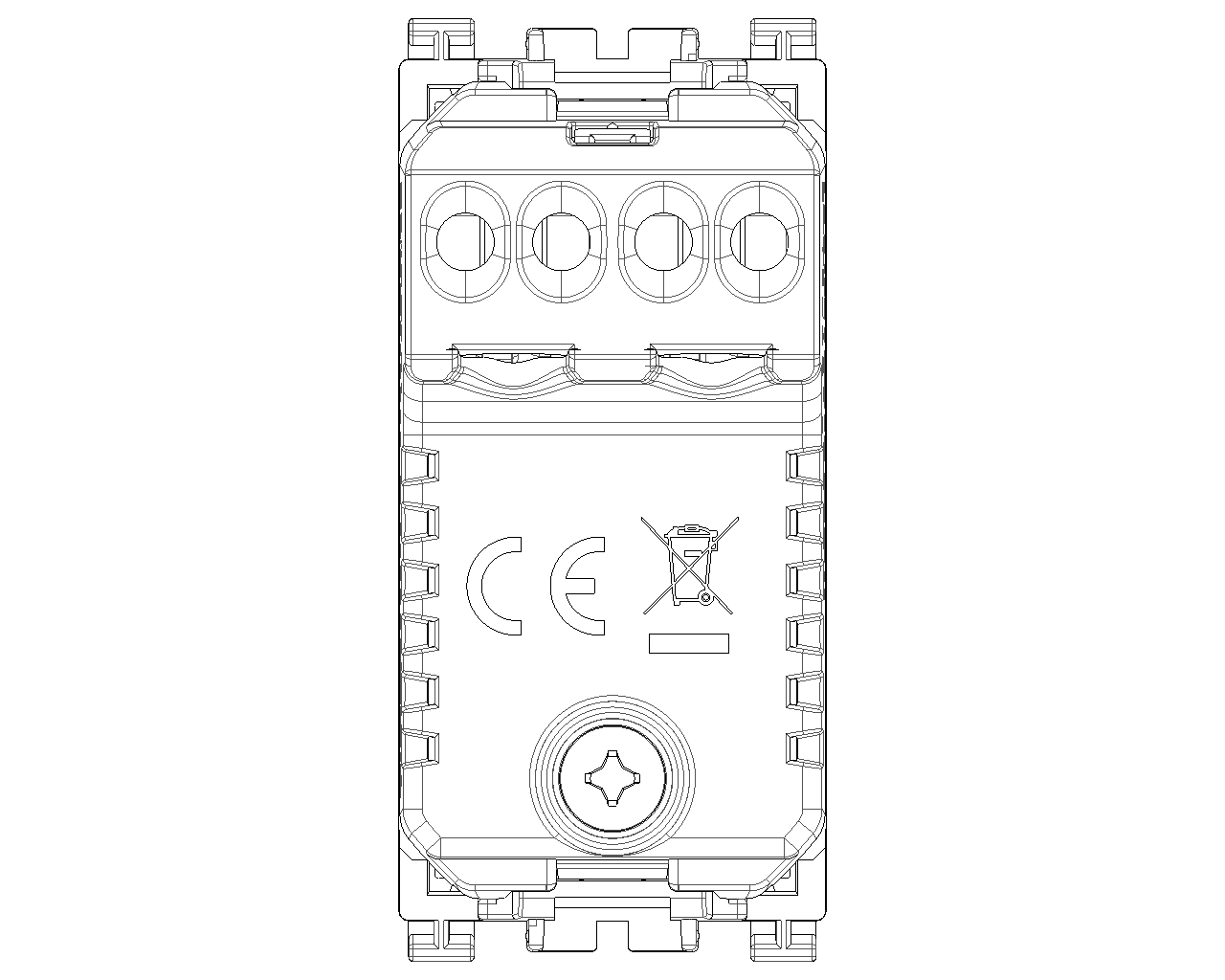

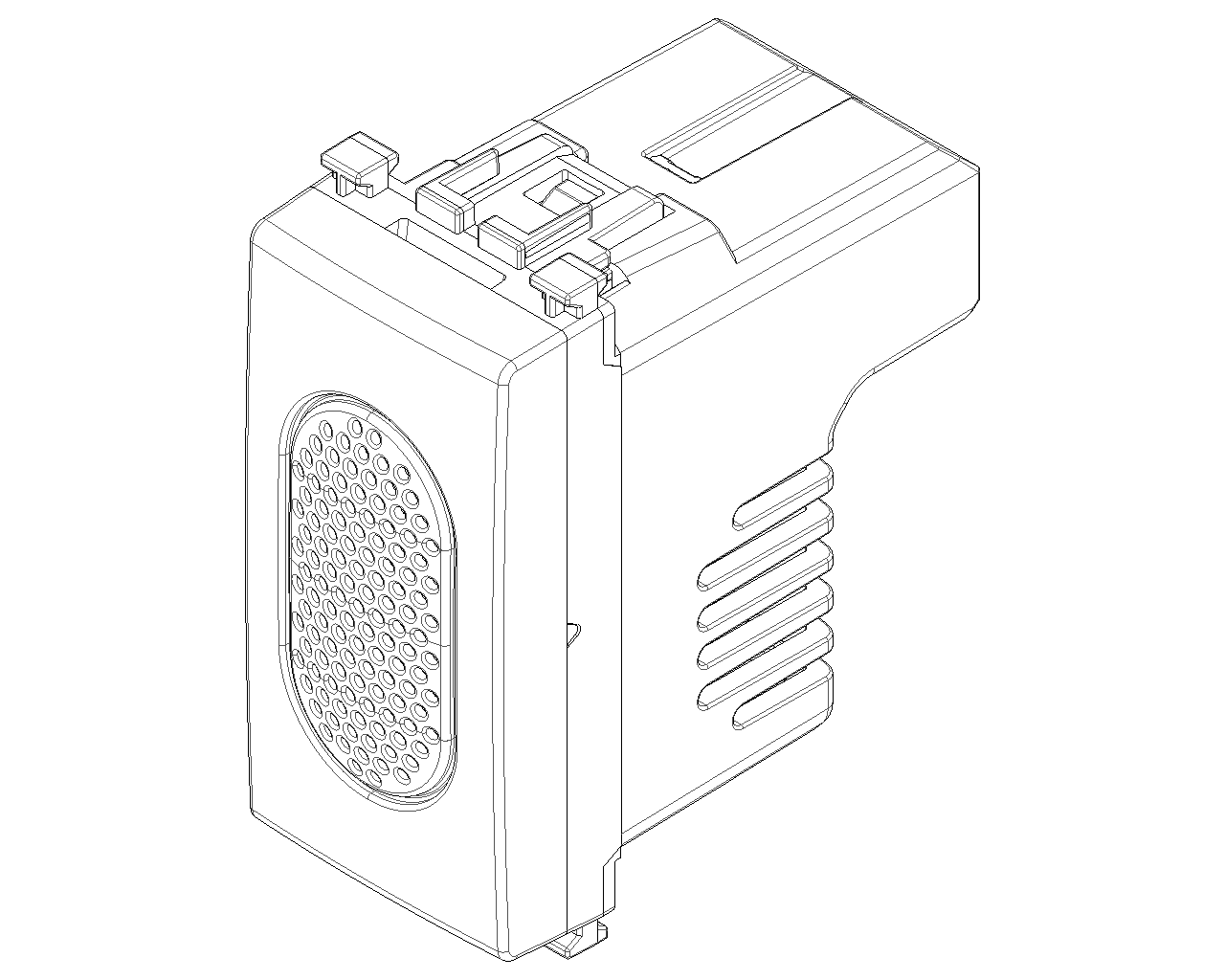

Drawings
Class group
Optical and acoustic signalling equipment
Optical and acoustic signalling equipment
Class
Bell gong
Bell gong
Housing colour
White
White
Nominal voltage
120,00 - 120,01 V
120,00 - 120,01 V
Type of current
AC
AC
Built-in battery
No
No
Wireless
No
No
Degree of protection (IP)
IP40
IP40
Mounting method
Flush-mounted
Flush-mounted
Width
22,30 mm
22,30 mm
Height
49,00 mm
49,00 mm
Depth
42,40 mm
42,40 mm
Minimum order quantity: 10 NR
Barcode
8007352739970
1 NR
4.6x2.7x5.6 [cm]
43.22 [g]
8007352739987
10 NR
14.8x10x6.8 [cm]
480.57 [g]
8007352739994
120 NR
31x22x21 [cm]
6,014.84 [g]
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
