1P+N C16 10mA RCBO Metal - 19411.16.M

Pdf
Vimar - 19411.16.M - 1P+N C16 10mA RCBO Metal
Vimar - 19411.16.M - 1P+N C16 10mA RCBO Metal

19411.16.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

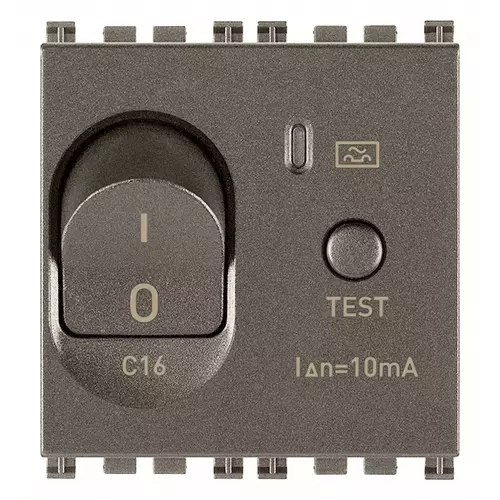

1P+N C16 10mA RCBO Metal
1P+N C 16 residual current breaker with overcurrent protection, supply voltage 120-230 V~ 50-60 Hz, IΔn 10 mA, breaking capacity 3000 A, Metal - 2 modules

Product Status
3 - Active

Class group
Circuit breakers and fuses
Class
Earth leakage circuit breaker
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 V
Rated current
16 A
Rated fault current
16 A
Leakage current type
A
Current limiting class
1
Rated short-circuit breaking capacity Icn according to EN 61009-1
3,00 kA
Surge current capacity
3,00 kA
Voltage type
AC
Frequency
50/60 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
Over voltage category
3
Built-in depth
38,00 mm
Flush-mounted installation
Yes
Anti-nuisance tripping version
No
Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352594890
1 NR
6x5.4x5.3 [cm]
97.8 [g]
Barcode Qty 5 NR
8007352594906
5 NR
17.2x13.1x6 [cm]
548.3 [g]
