19486
Smart systems&products / By-me Plus / ARKÉ / Devices

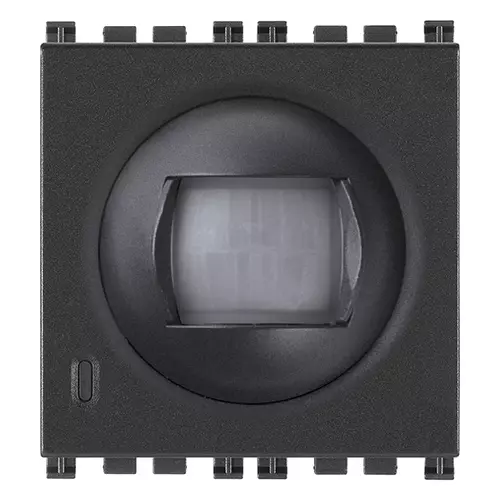

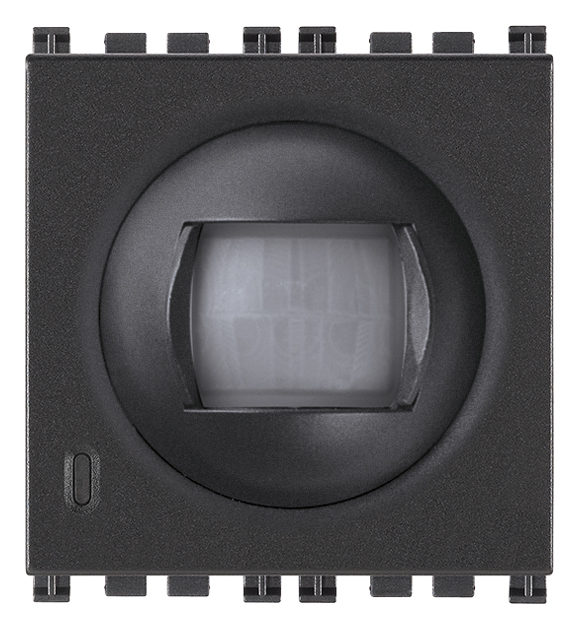

IR-orientable-detector grey
Orientable passive infrared motion detector, grey - 2 modules

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Movement detector for danger detection system
Type of messaging
Passive infrared
Mounting method
Built-in
Detection range
112
Operating current
10,00 mA
Operating voltage
29,00 - 29,01 V

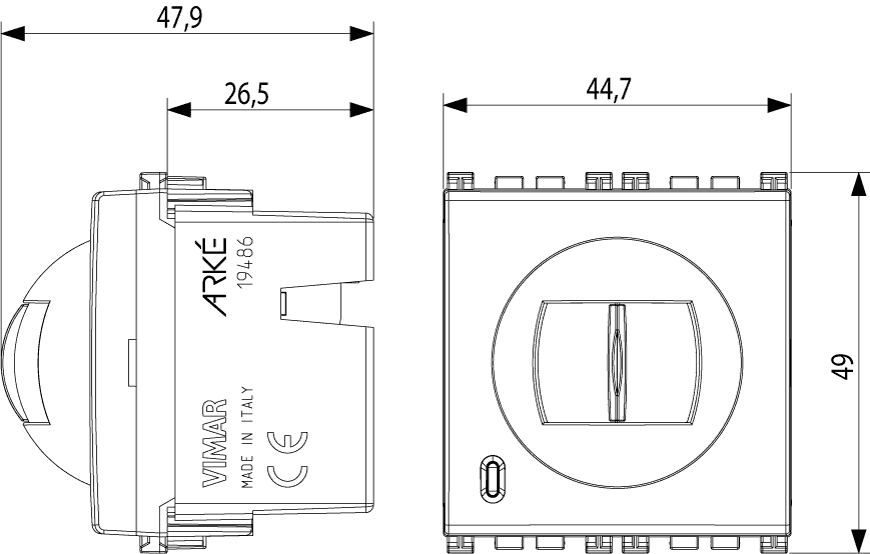

Height
49,00 mm
Width
44,80 mm
Depth
47,90 mm
Characteristic
Other
Cover monitoring
No
Radio system
No

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352451032
1 NR
11.2x9.6x9.8 [cm]
107.3 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
