Frame RF device Round plate grey - 19507.RN

Pdf
Vimar - 19507.RN - Frame RF device Round plate grey
Vimar - 19507.RN - Frame RF device Round plate grey
19507.RN

Arké / Mounting frames / Special mounting frames

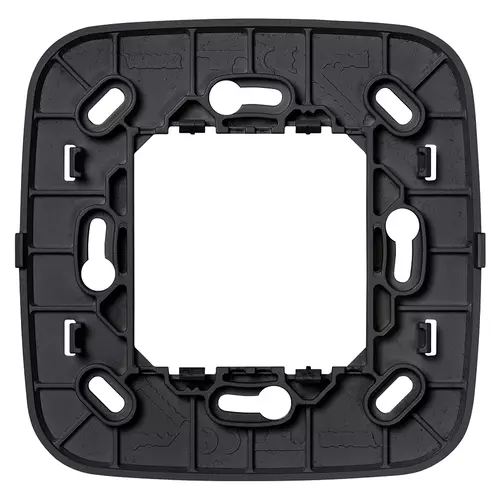

Frame RF device Round plate grey
Frame RF device Round plate grey

  • Thanks to the central slots, the support can be fixed onto the wall level

Product Status
3 - Active

Drawings

view encumbered art. 19507.RN
PNG DXF
rear view art. 19507.RN
PNG DXF
3D view art. 19507.RN
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
2
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated

00. CE Marking - EU

29. QCERT - Colombia

43. UKCA mark - Great Britain

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352620407
1 NR
8.8x8.8x0.5 [cm]
19.2 [g]
Barcode Qty 10 NR
8007352624269
10 NR
18.8x13.8x7 [cm]
261.8 [g]
