Domotic temperature probe white - 19538.B

Pdf
19538.B

Arké white / Systems / Comfort - climate devices

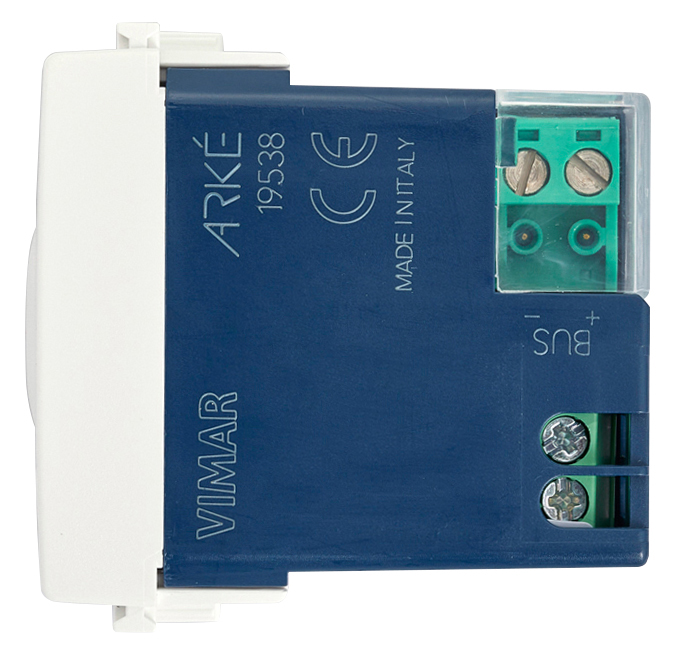

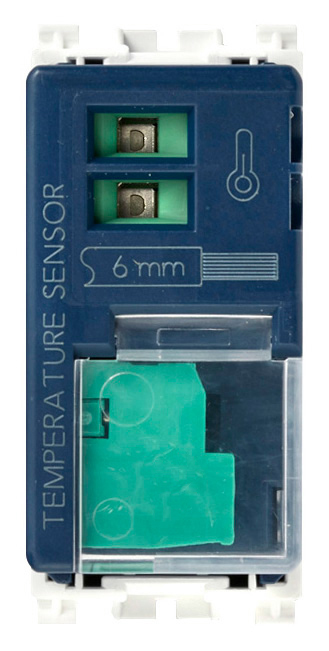

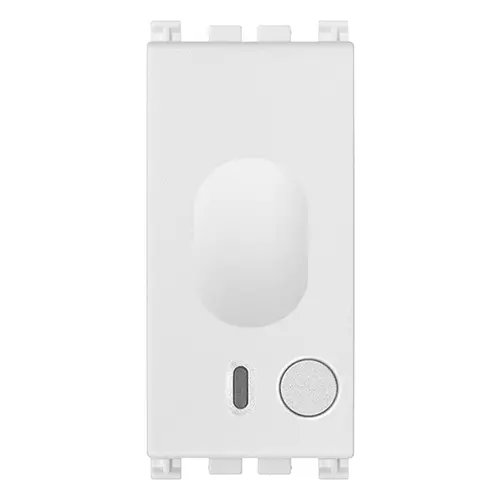

Domotic temperature probe white
Temperature probe for ambient temperature control (heating and air-conditioning), 2 and 4 pipe system management, 3-speed and proportional fan-coil control, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, 1 input for flush-mounting or wired NTC temperature sensor, for By-me home automation system, can be interfaced with actuator with proportional analogue outputs 01466 to make a class V modulating room thermostat (contribution 3%), white

Product Status
4 - Active

Class group
Stats, switches and controllers
Class
Room thermostat
Model
Other
With receiver
No
External sensor
Yes
Mounting method
Flush mounted (plaster)
With display
No
Colour
White
RAL-number
9016
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352512504
1 NR
6x2.8x5.3 [cm]
38.2 [g]
Barcode Qty 10 NR
8007352512511
10 NR
14.4x13.1x6 [cm]
429.4 [g]
Barcode Qty 200 NR
8007352657205
200 NR
50.5x20x28 [cm]
8,588 [g]
