Speaker connector white - 19583.B

Pdf

19583.B
Smart systems&products / By-me Plus / ARKÉ / Devices

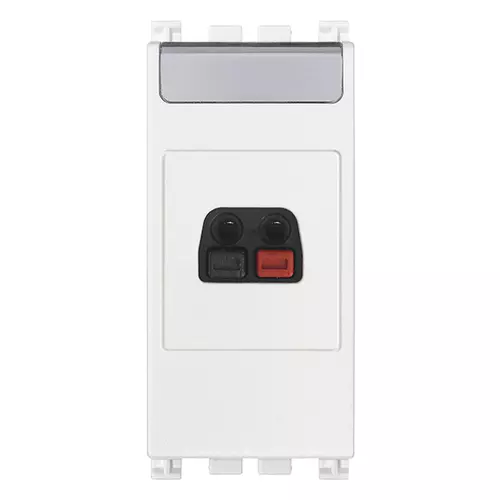

Speaker connector white
Spring connector for speaker, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
Other
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
Yes
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Type of fastening
Engage (snap)
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20

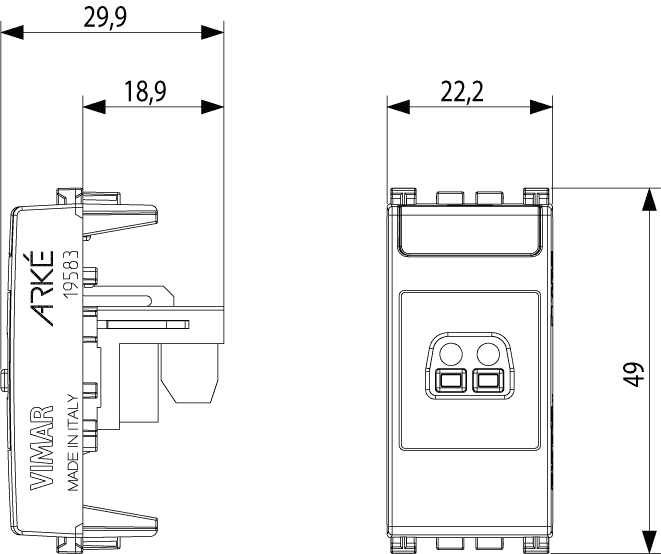

Device width
22,30 mm
Device height
49,00 mm
Device depth
29,90 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352457454
1 NR
5.1x4.3x5.3 [cm]
22.1 [g]
Barcode Qty 10 NR
8007352457461
10 NR
26.9x11.6x4.9 [cm]
294.5 [g]
Barcode Qty 200 NR
8007352648319
200 NR
47.5x27x29 [cm]
6,420 [g]
