1P 16AX 2-way switch 2M white - 20005.2.B

Pdf

Vimar - 20005.2.B - 1P 16AX 2-way switch 2M white

20005.2.B
Wiring devices / Traditional wiring devices / EIKON / Devices

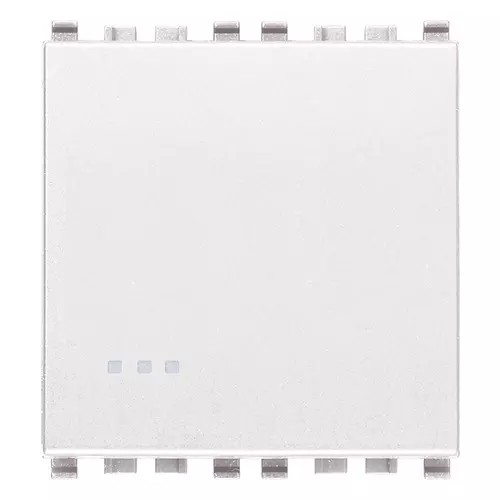

1P 16AX 2-way switch 2M white
1P 16 AX 250 V~ 2-way switch, lightable, replaceable button, white - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 20005.2.B

PNG DXF

rear view art. 20005.2.B

PNG DXF

3D view art. 20005.2.B

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Two-way switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
2

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
White

RAL-number (similar)
9016

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
44,80 mm

Device height
49,00 mm

Device depth
35,90 mm

Built-in depth
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

13. SNI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

8007352316324

1 NR

5.1x4.3x5.3 [cm]

36.8 [g]

8007352316331

20 NR

26.9x11.6x9 [cm]

817.07 [g]

8007352647244

240 NR

38x28.5x35.5 [cm]

10,332 [g]
