1P NO 10A push-button 2M white - 20008.2.B

Pdf
Vimar - 20008.2.B - 1P NO 10A push-button 2M white
Vimar - 20008.2.B - 1P NO 10A push-button 2M white
20008.2.B

Eikon white / Devices / Basic devices

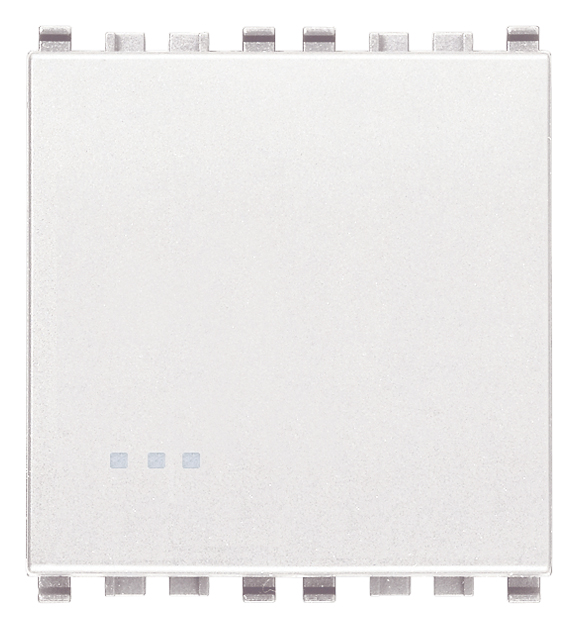

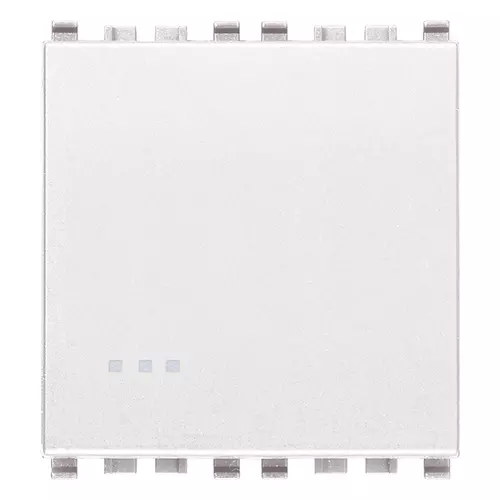

1P NO 10A push-button 2M white
1P NO 10 A 250 V~ push button, lightable, replaceable button, white - 2 modules

Product Status
3 - Active

Drawings

view encumbered art. 20008.2.B
PNG DXF
rear view art. 20008.2.B
PNG DXF
3D view art. 20008.2.B
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
200
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
44,80 mm
Device height
49,00 mm
Device depth
36,10 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

13. SNI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352316386
1 NR
5.1x4.3x5.3 [cm]
34.2 [g]
Barcode Qty 20 NR
8007352316393
20 NR
26.9x11.6x9 [cm]
771.8 [g]
Barcode Qty 240 NR
8007352646810
240 NR
38x28.5x35.5 [cm]
9,600 [g]
