1P NO 10A push button light symb.2M Next - 20008.2.L.N

Pdf

20008.2.L.N
Wiring devices / Traditional wiring devices / EIKON / Devices

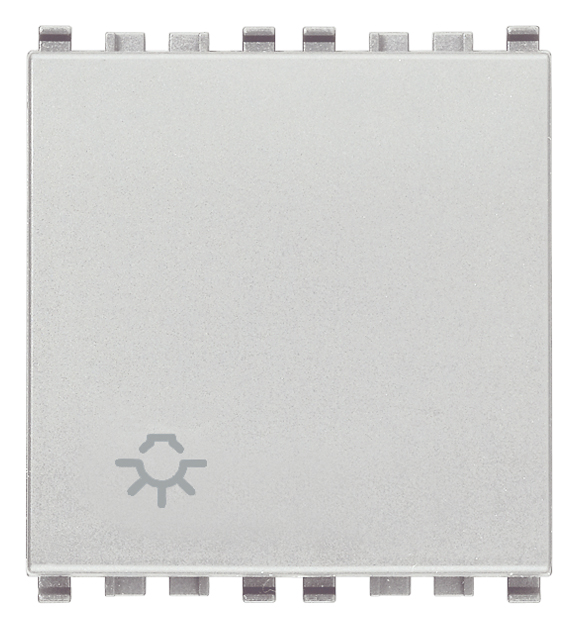

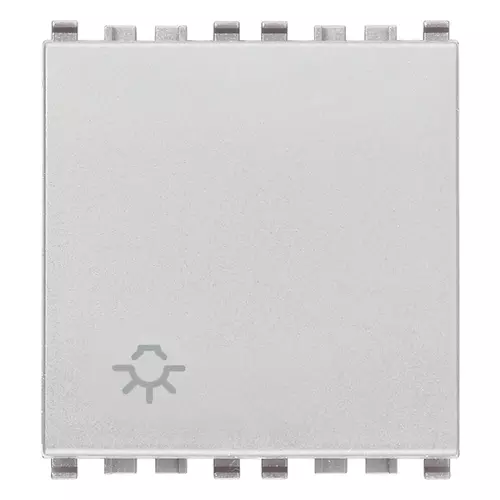

1P NO 10A push button light symb.2M Next
1P NO 10 A 250 V~ push button, lightable light symbol, replaceable button, Next - 2 modules

Product Status
3 - Active

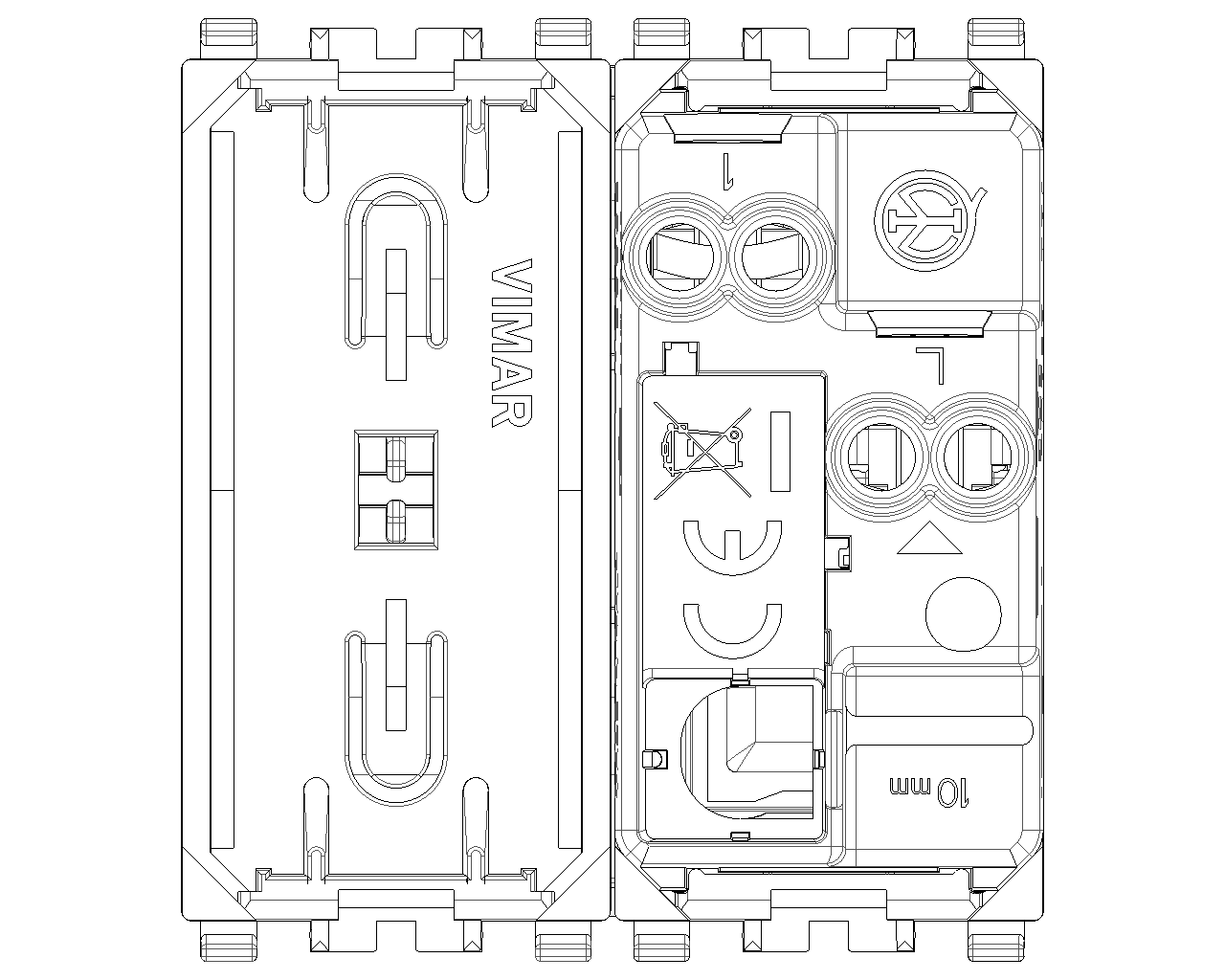

Drawings

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
200
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40

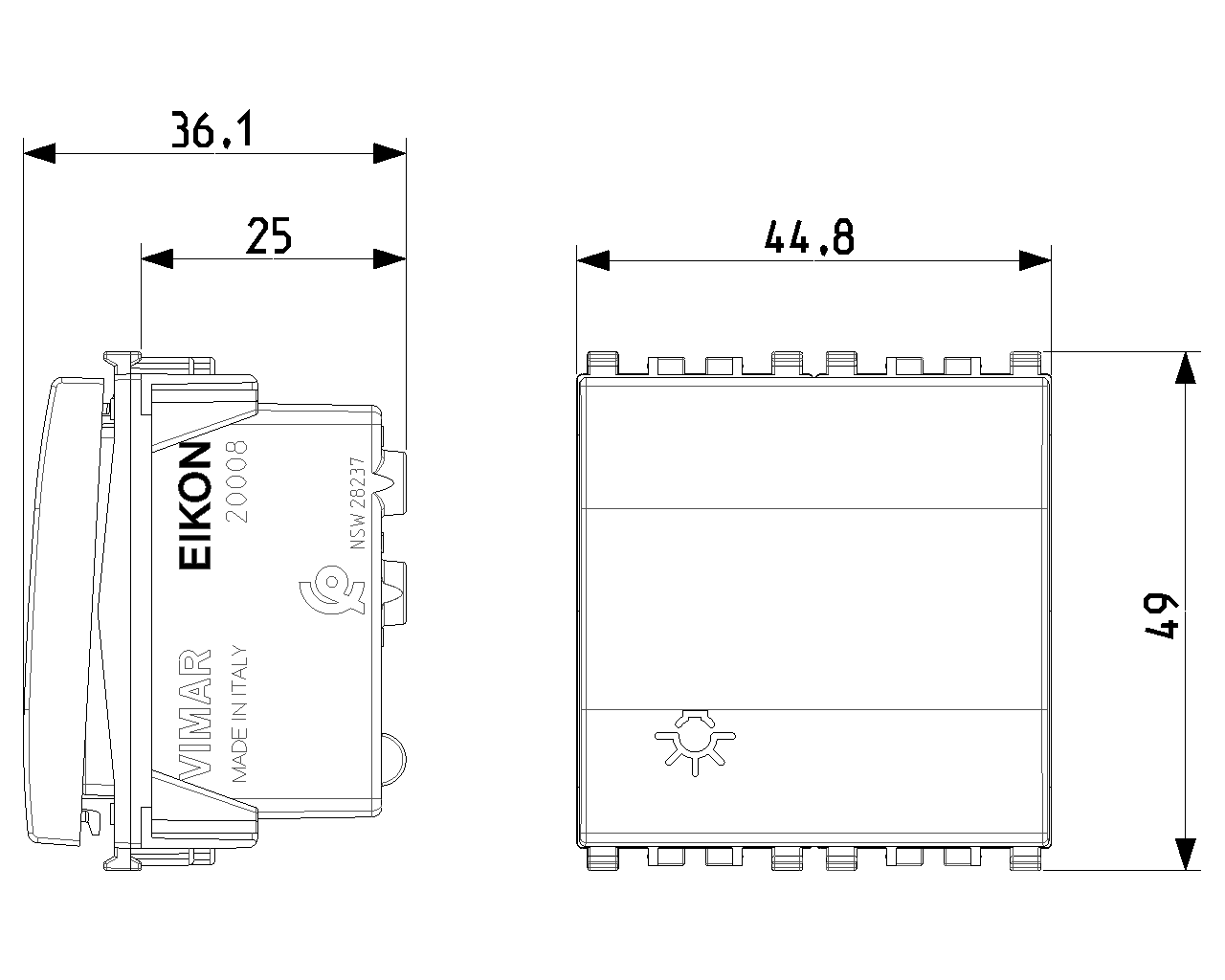

Device width
44,80 mm
Device height
49,00 mm
Device depth
36,10 mm

00. CE Marking - EU

14. TSE - Turkey

19. NOM - Mexico

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352285552
1 NR
5.1x4.3x5.3 [cm]
34.8 [g]
Barcode Qty 20 NR
8007352285569
20 NR
26.9x11.6x9 [cm]
782.73 [g]
