1P NO 10A push button Next - 20008.N

Pdf

20008.N
Wiring devices / Traditional wiring devices / EIKON / Devices

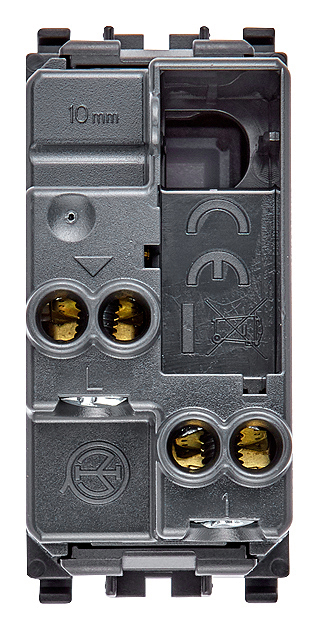

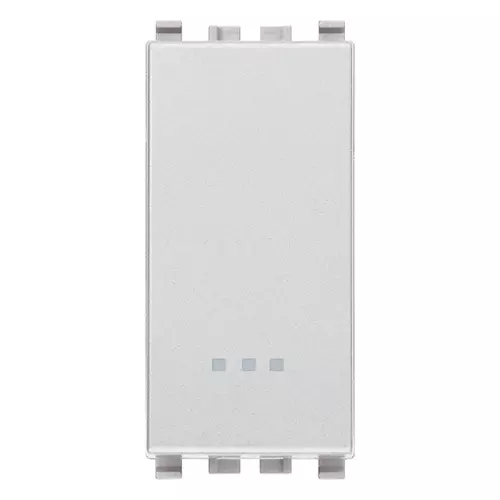

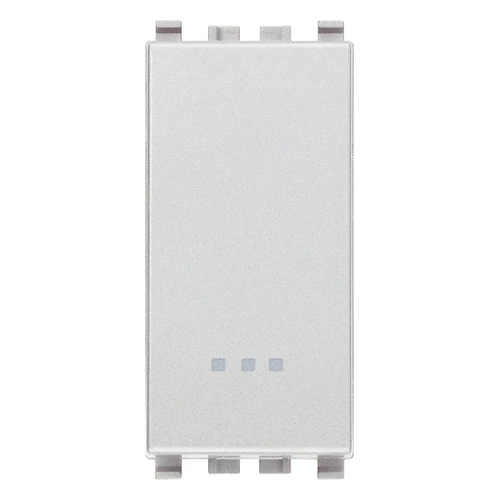

1P NO 10A push button Next
1P NO 10 A 250 V~ push button, lightable, replaceable button, Next

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
49,00 mm
Device depth
36,10 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

13. SNI - Indonesia

19. NOM - Mexico

20. IQC - Argentina

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

50. Product Environm. Profile

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352285699
1 NR
4.1x2.8x5.3 [cm]
26 [g]
Barcode Qty 50 NR
8007352285705
50 NR
21.4x11.6x14.2 [cm]
1,357 [g]
Barcode Qty 500 NR
8007352352124
500 NR
57.5x22.5x30 [cm]
14,530 [g]
Barcode Qty 10,500 NR
8007352750760
10,500 NR
120x80x105 [cm]
284,970 [g]
