1P 10AX reversing switch screwless grey - 20009.FX

Pdf

20009.FX
Wiring devices / Traditional wiring devices / EIKON / Devices

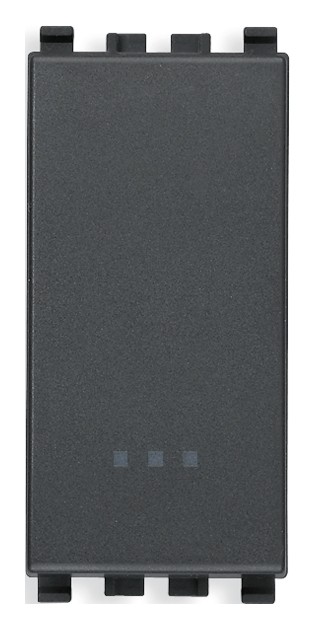

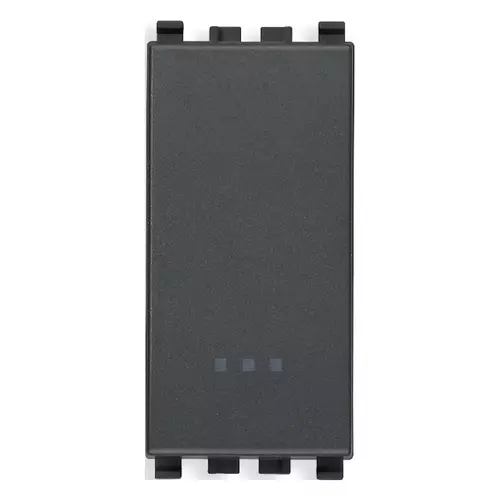

1P 10AX reversing switch screwless grey
1P 10 AX 250 V~ reversing switch, screwless terminals, lighTable, replaceable button, grey. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

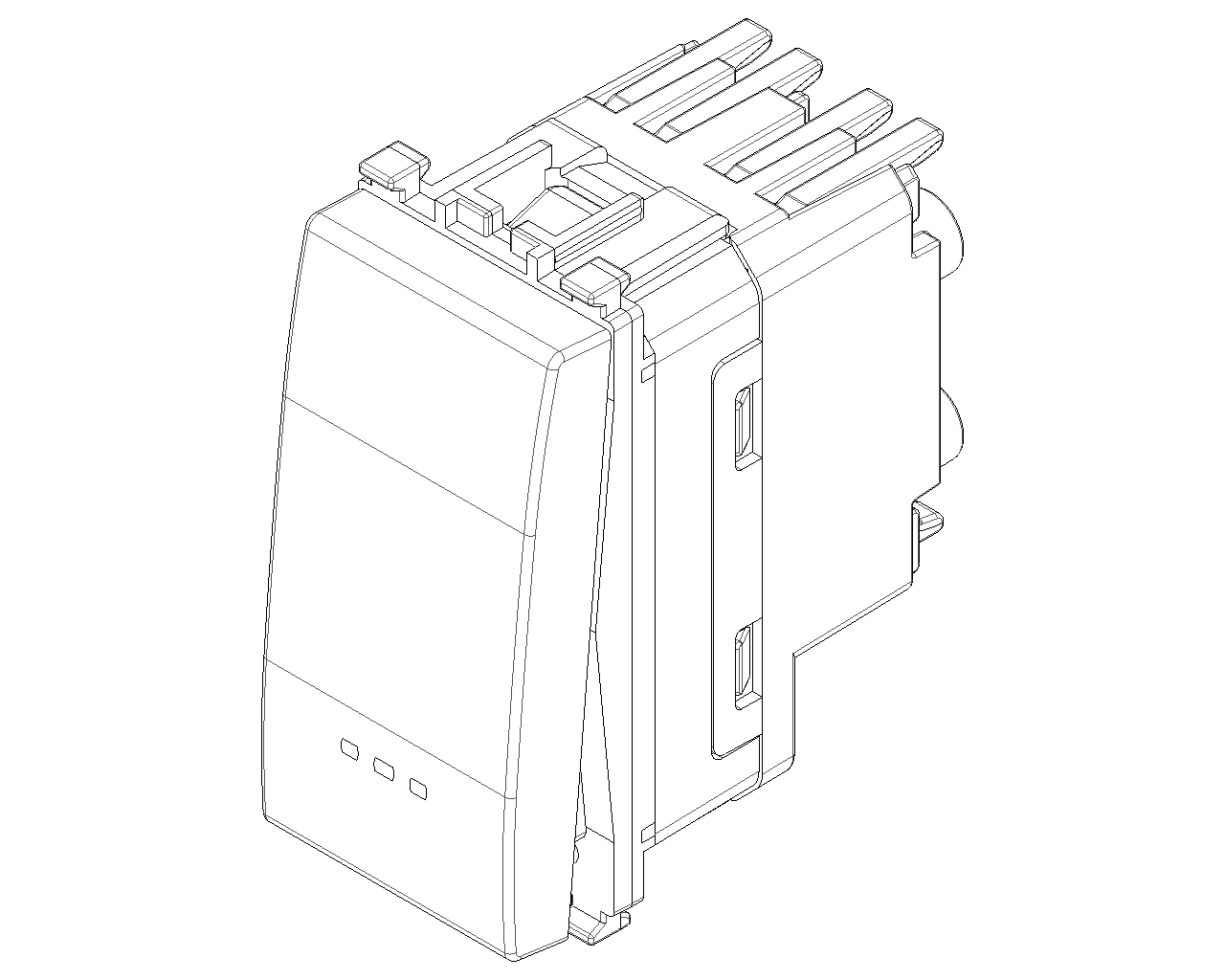

Drawings

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Intermediate switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
10,00 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No
Connection type
Push-in clamp
Washing machine switch
No
Device width
22,30 mm
Device height
49,00 mm
Device depth
38,30 mm
Built-in depth
26,90 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352630475
1 NR
5.1x2.8x5.3 [cm]
30.2 [g]
Barcode Qty 50 NR
8007352630482
50 NR
27x15x12 [cm]
1,649 [g]
