1P NC 10A push button mechanism - 20010.0

Pdf

20010.0
Wiring devices / Traditional wiring devices / EIKON / Devices

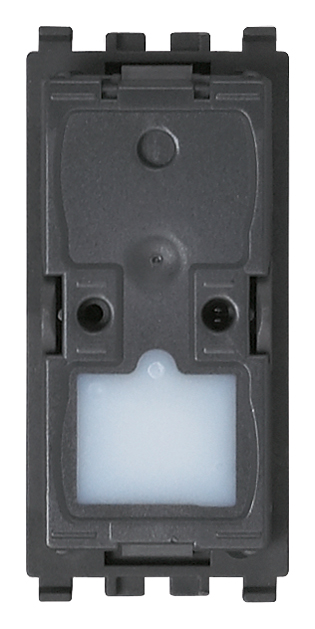

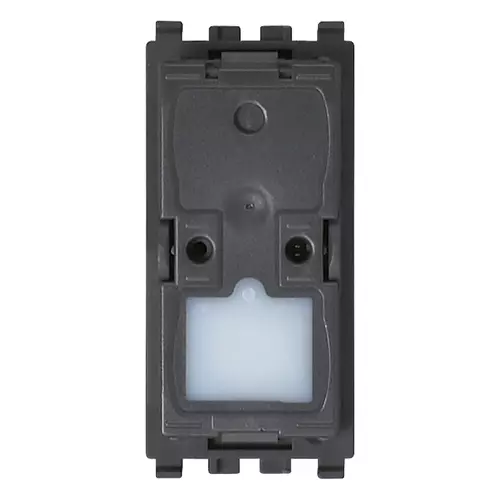

1P NC 10A push button mechanism
1P NC 10 A 250 V~ push button mechanism, lightable, to complete with 1, 2 or 3-module button

Product Status
3 - Active

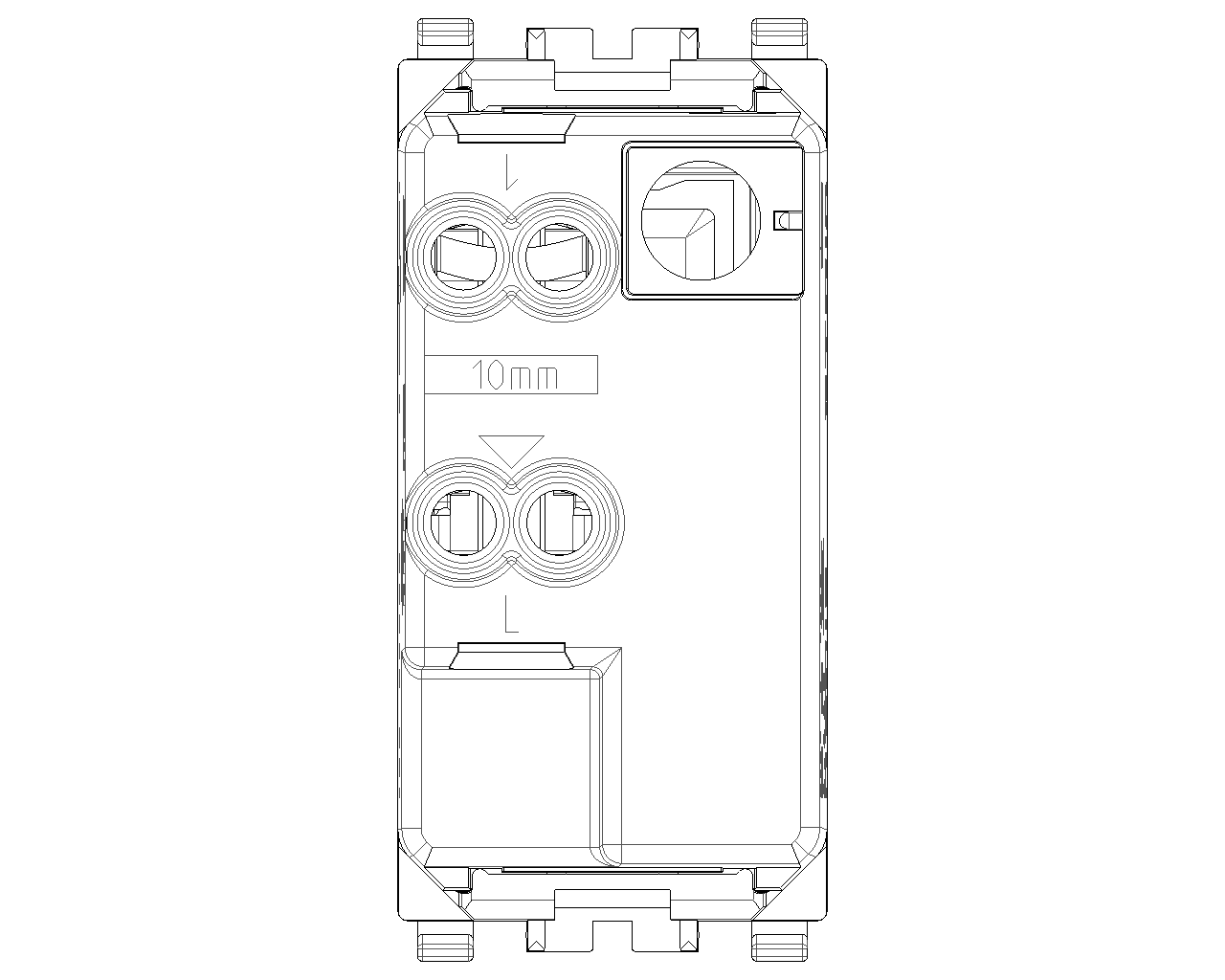

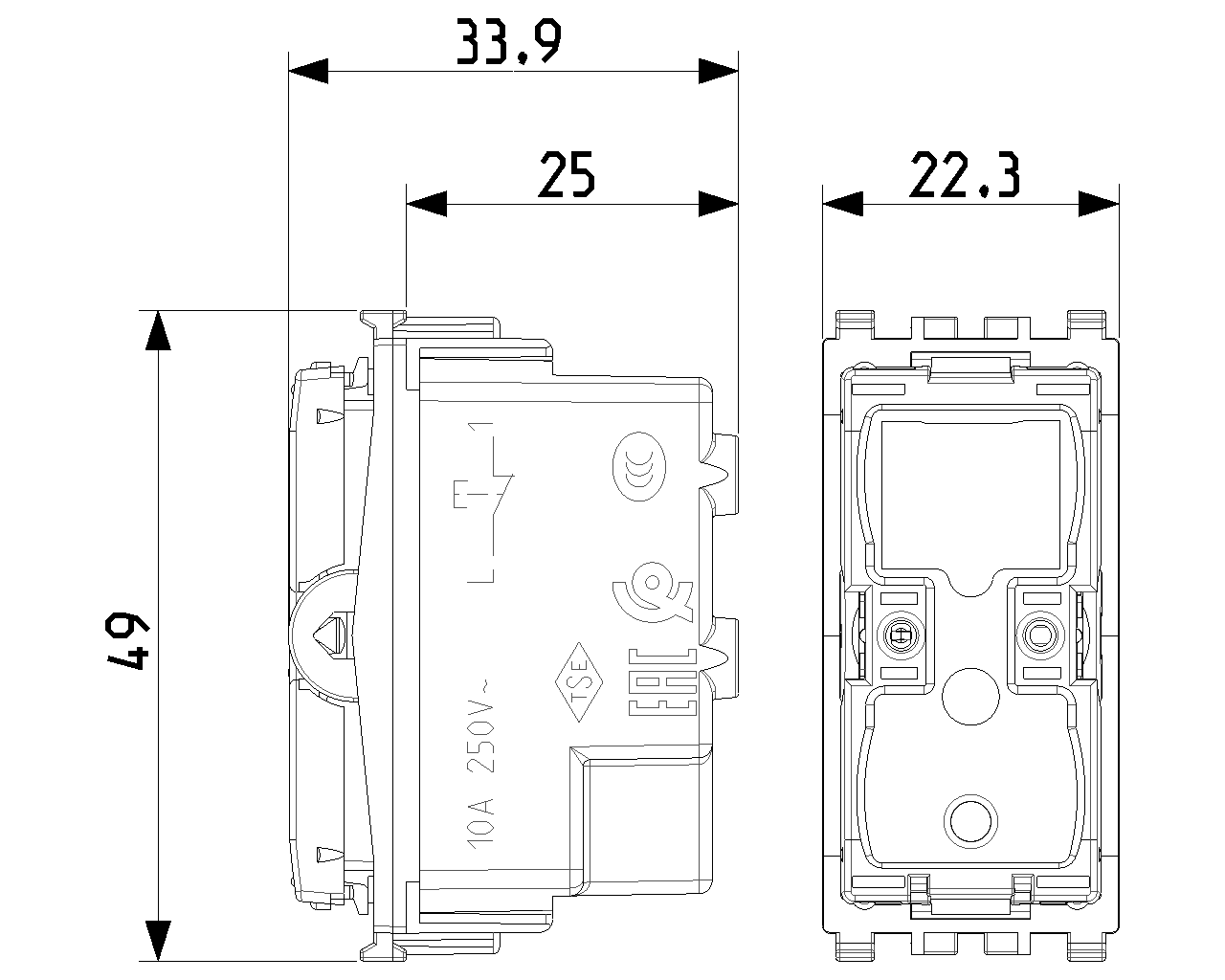

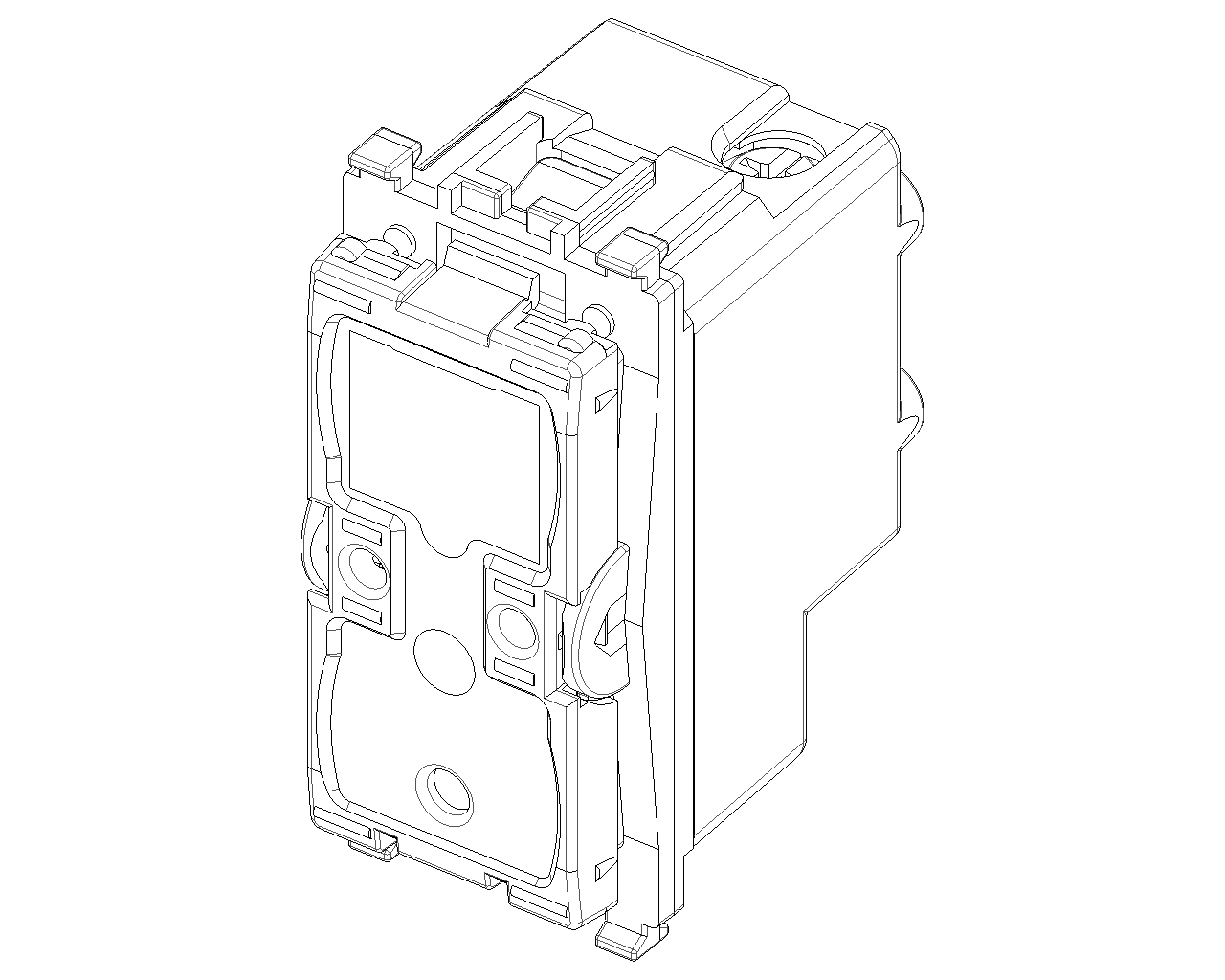

Drawings

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
7024
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
49,00 mm
Device depth
36,15 mm

00. CE Marking - EU

14. TSE - Turkey

19. NOM - Mexico

20. IQC - Argentina

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352250963
1 NR
4.1x2.8x5.3 [cm]
23.53 [g]
Barcode Qty 10 NR
8007352250970
10 NR
14.4x9x6 [cm]
276.33 [g]
