1P NC 10A push button Next - 20010.N

Pdf

Vimar - 20010.N - 1P NC 10A push button Next

20010.N
Wiring devices / Traditional wiring devices / EIKON / Devices

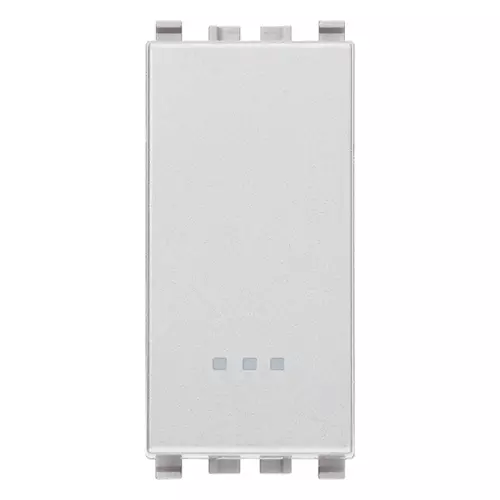

1P NC 10A push button Next
1P NC 10 A 250 V~ push button, lightable, replaceable button, Next

Product Status
3 - Active

Drawings

rear view art. 20010.N

PNG DXF

3D view art. 20010.N

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
Yes

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Matt

Colour
Silver

RAL-number (similar)
9022

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
36,15 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

8007352285750

1 NR

4.1x2.8x5.3 [cm]

26.33 [g]

8007352285767

20 NR

21.4x11.6x6 [cm]

584.07 [g]

8007352649200

300 NR

37x28.5x25 [cm]

9,222 [g]
