Blank module Next - 20041.N

Pdf
Vimar - 20041.N - Blank module Next
Foto gallery #1
Foto gallery #2
Vimar - 20041.N - Blank module Next
20041.N

Eikon Next / Accessories / Blank module and cable outlet

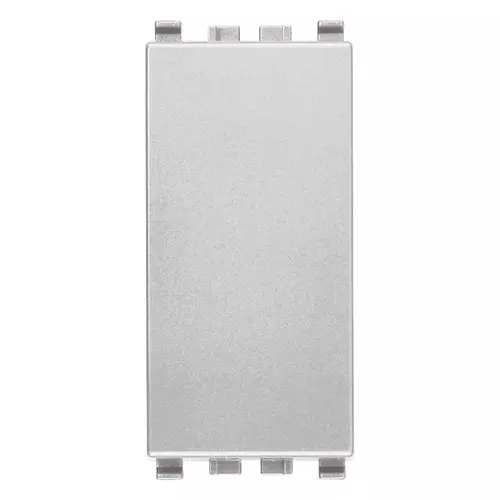

Blank module Next
Blank module, Next

Product Status
3 - Active

Drawings

view encumbered art. 20041.N
PNG DXF

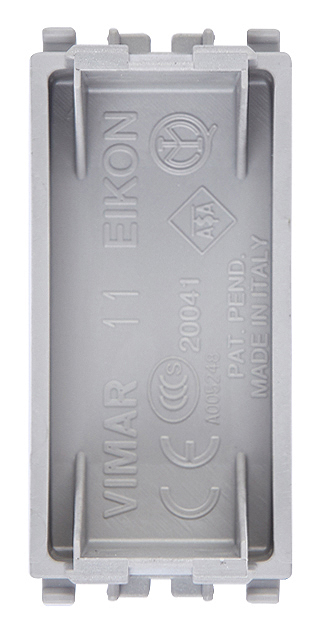

rear view art. 20041.N
PNG DXF
3D view art. 20041.N
PNG DXF
Class group
Domestic switching devices
Class
Push-switch button
Method of operation
Other
Number of modules (module system)
1
Nominal voltage
0 v
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with claw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Transparent
No
Label space/information surface
Yes
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
20,50 mm

01. IMQ - Italy

08. ASTA - UK

15. CCC - China

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352284654
1 NR
2.2x4.9x2 [cm]
5 [g]
Barcode Qty 10 NR
8007352286146
10 NR
22x4.9x2 [cm]
51.33 [g]
Barcode Qty 100 NR
8007352284661
100 NR
28.2x11.1x10 [cm]
606.73 [g]
Barcode Qty 1,000 NR
8007352352148
1,000 NR
57.5x22.5x30 [cm]
6,611.33 [g]
Barcode Qty 21,000 NR
8007352352414
21,000 NR
80x120x103 [cm]
150,000 [g]
