1P NC 10A cord-operated pushbutton white - 20053.B

Pdf
Vimar - 20053.B - 1P NC 10A cord-operated pushbutton white
Vimar - 20053.B - 1P NC 10A cord-operated pushbutton white
20053.B

Eikon white / Devices / Devices - other functions

1P NC 10A cord-operated pushbutton white
1P NC 10 A 250 V~ cord-operated push button, with 1,5 m cord, white

Product Status
3 - Active

Drawings

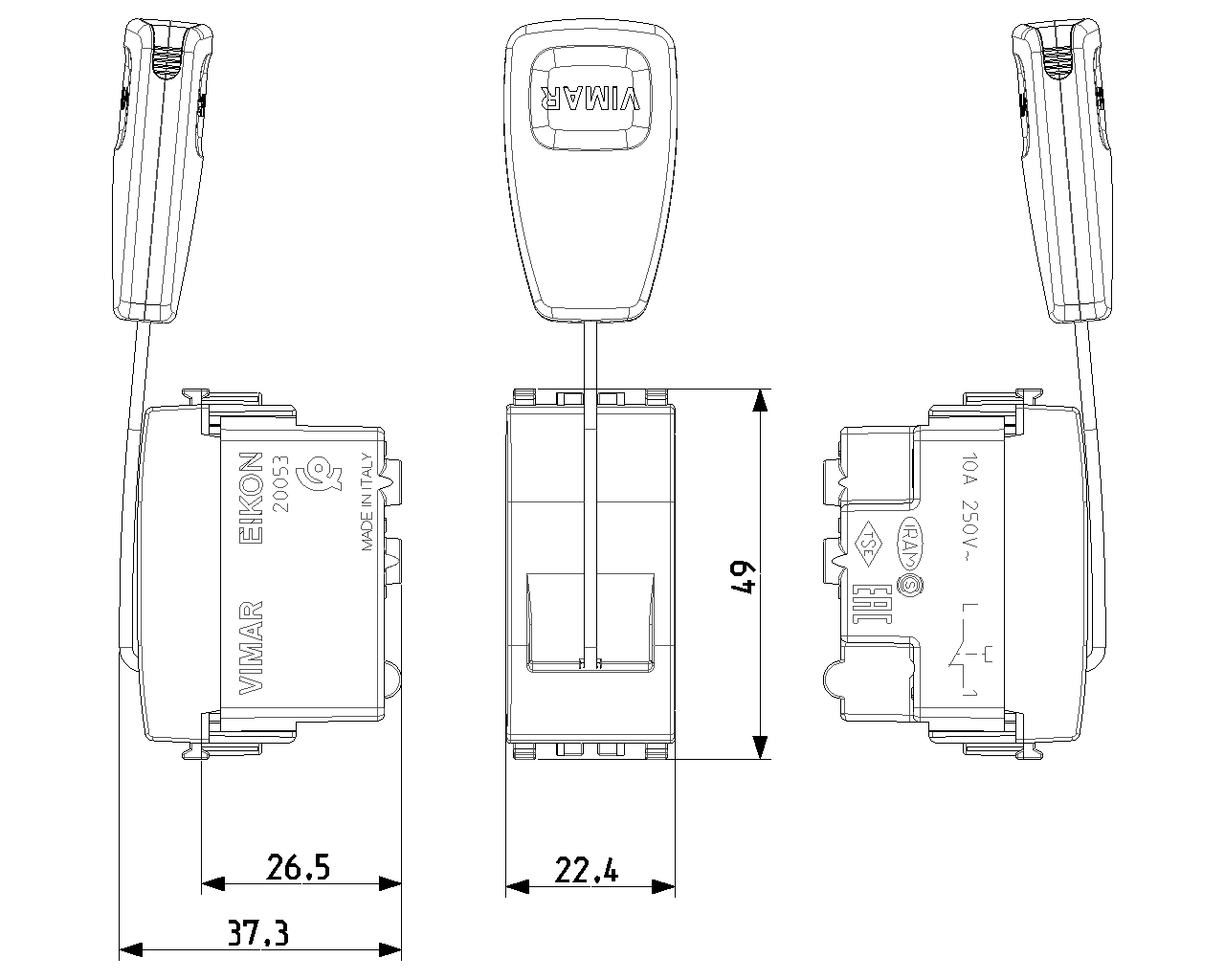

view encumbered art. 20053.B
PNG DXF

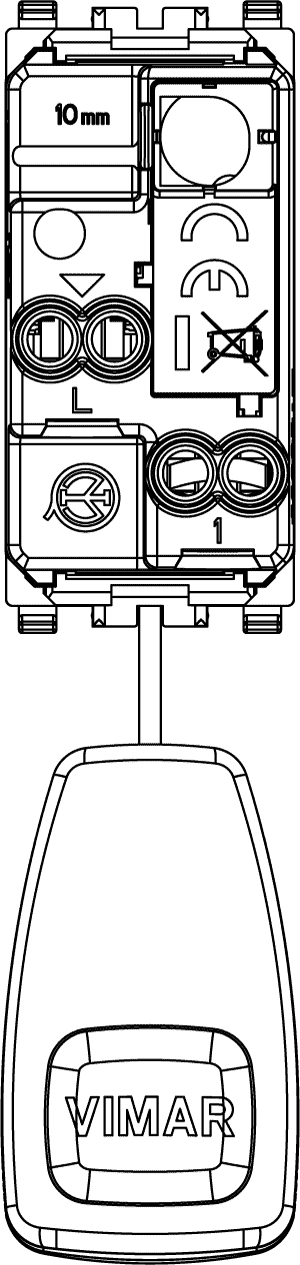

rear view art. 20053.B
PNG DXF

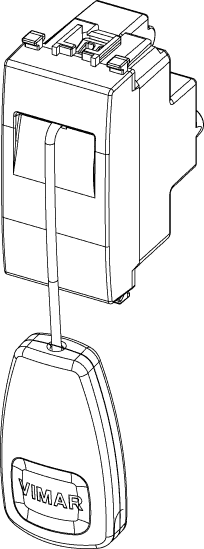

3D view art. 20053.B
PNG DXF
Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
0
Number of modules (module system)
1
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
35,70 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

19. NOM - Mexico

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352315570
1 NR
6x2.8x5.3 [cm]
33 [g]
Barcode Qty 10 NR
8007352315587
10 NR
14.4x13.1x6 [cm]
377.4 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
