1P NO+NC 10A pushbutton OFF symbol white - 20056.33.B

Pdf
20056.33.B

Eikon white / Devices / Devices - other functions

1P NO+NC 10A pushbutton OFF symbol white
1P 10 A 250 V~ push button, NO+NC contacts, OFF symbol, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
1
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40

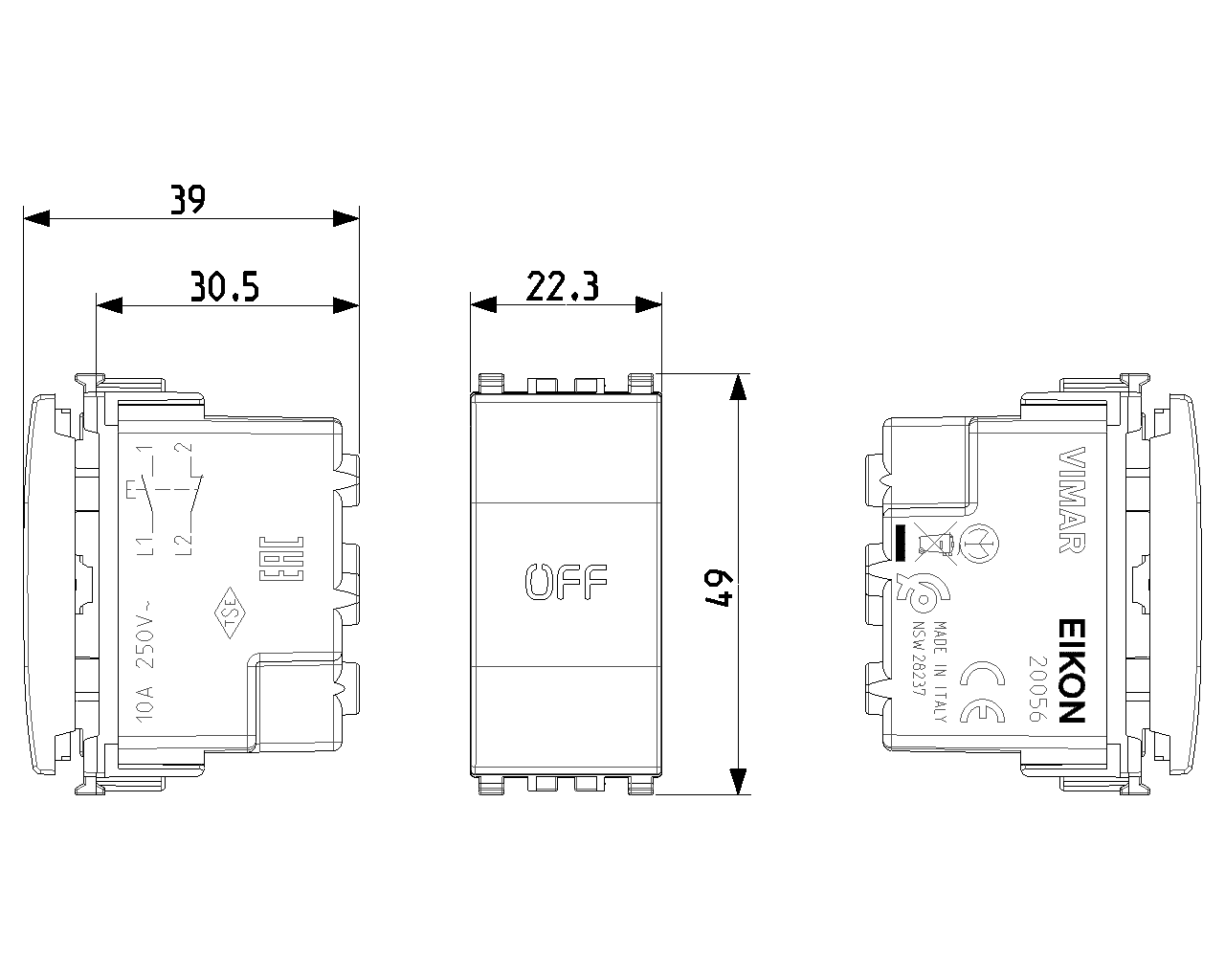

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
29,50 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

19. NOM - Mexico

36. ISI - India

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352315594
1 NR
4.1x2.8x5.3 [cm]
33.27 [g]
Barcode Qty 10 NR
8007352315600
10 NR
14.4x9x6 [cm]
369.53 [g]
