2P 10AX 2-way switch white - 20060.B

Pdf

20060.B
Wiring devices / Traditional wiring devices / EIKON / Devices

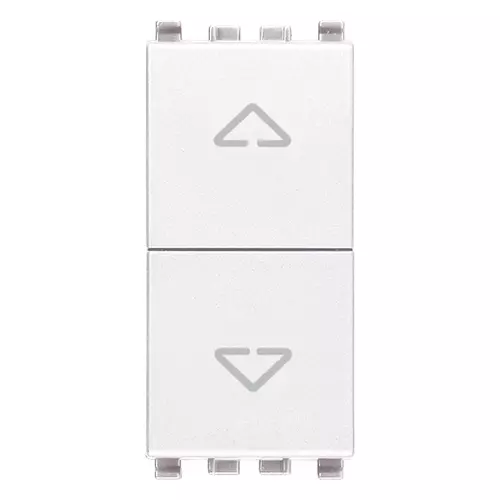

2P 10AX 2-way switch white
2P 10 AX 250 V~ (6 terminals) two-button switch, with directional arrows and central OFF position, white. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

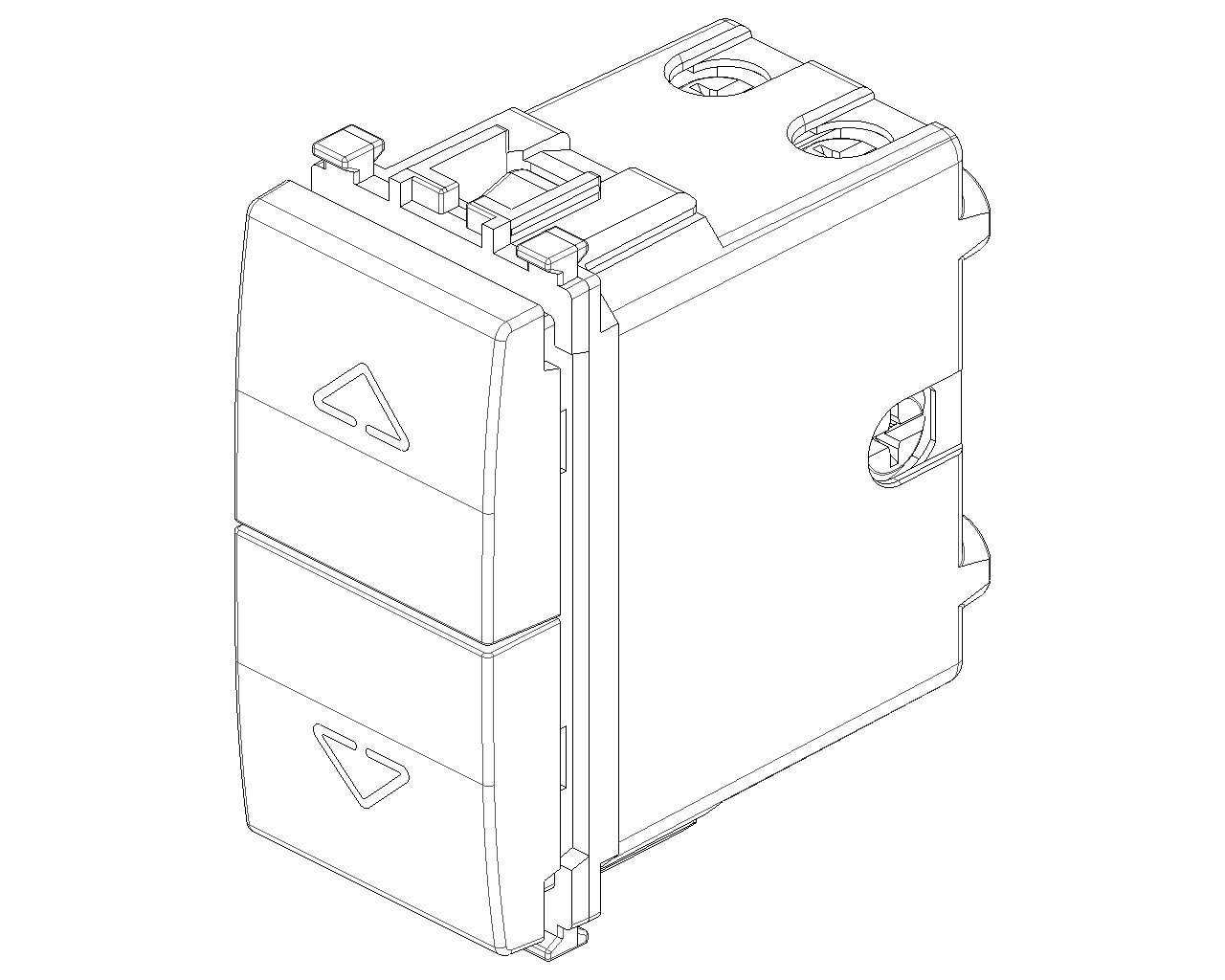

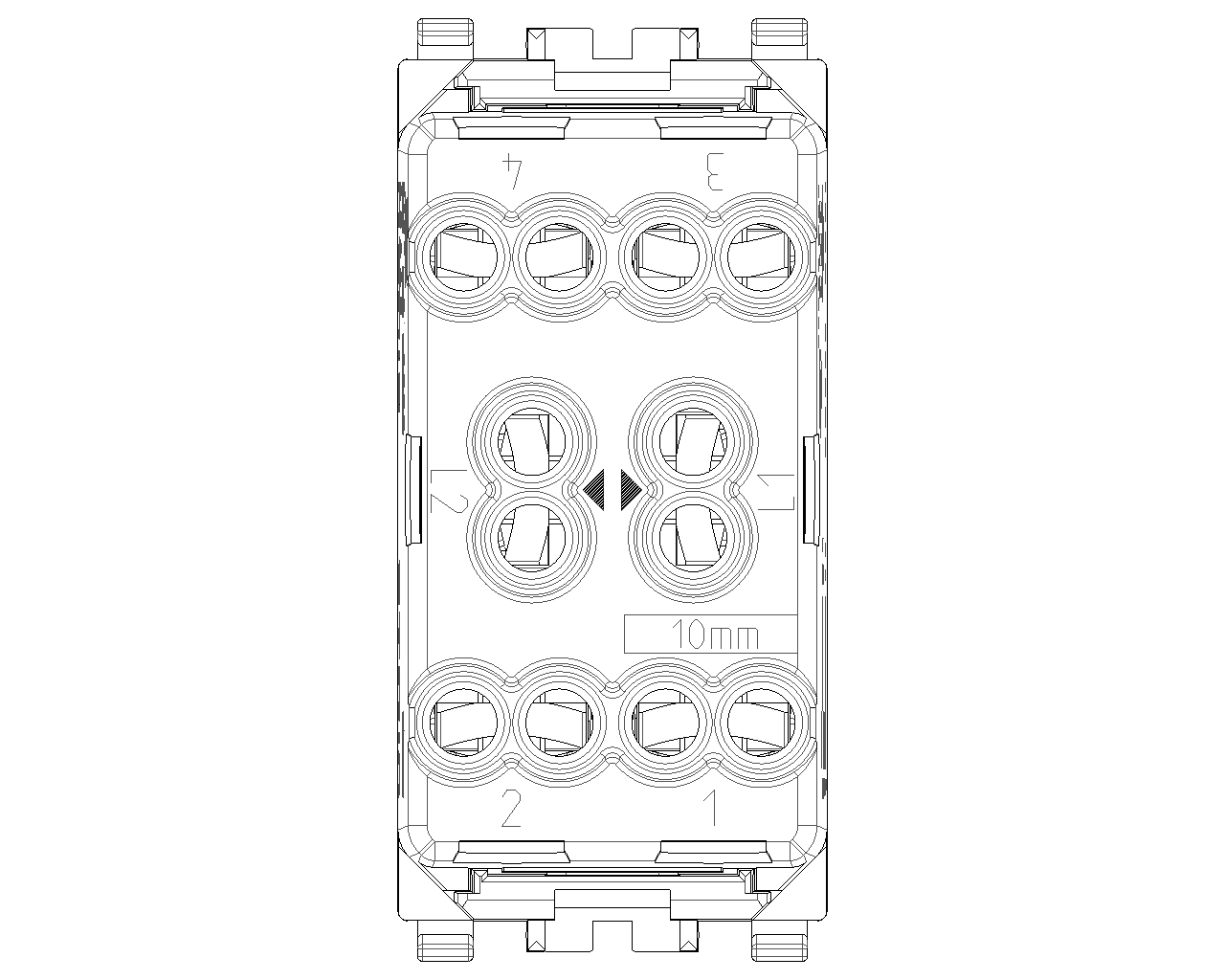

Drawings

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Other
Number of rockers
1
Number of modules (module system)
100
Number of poles
2
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40

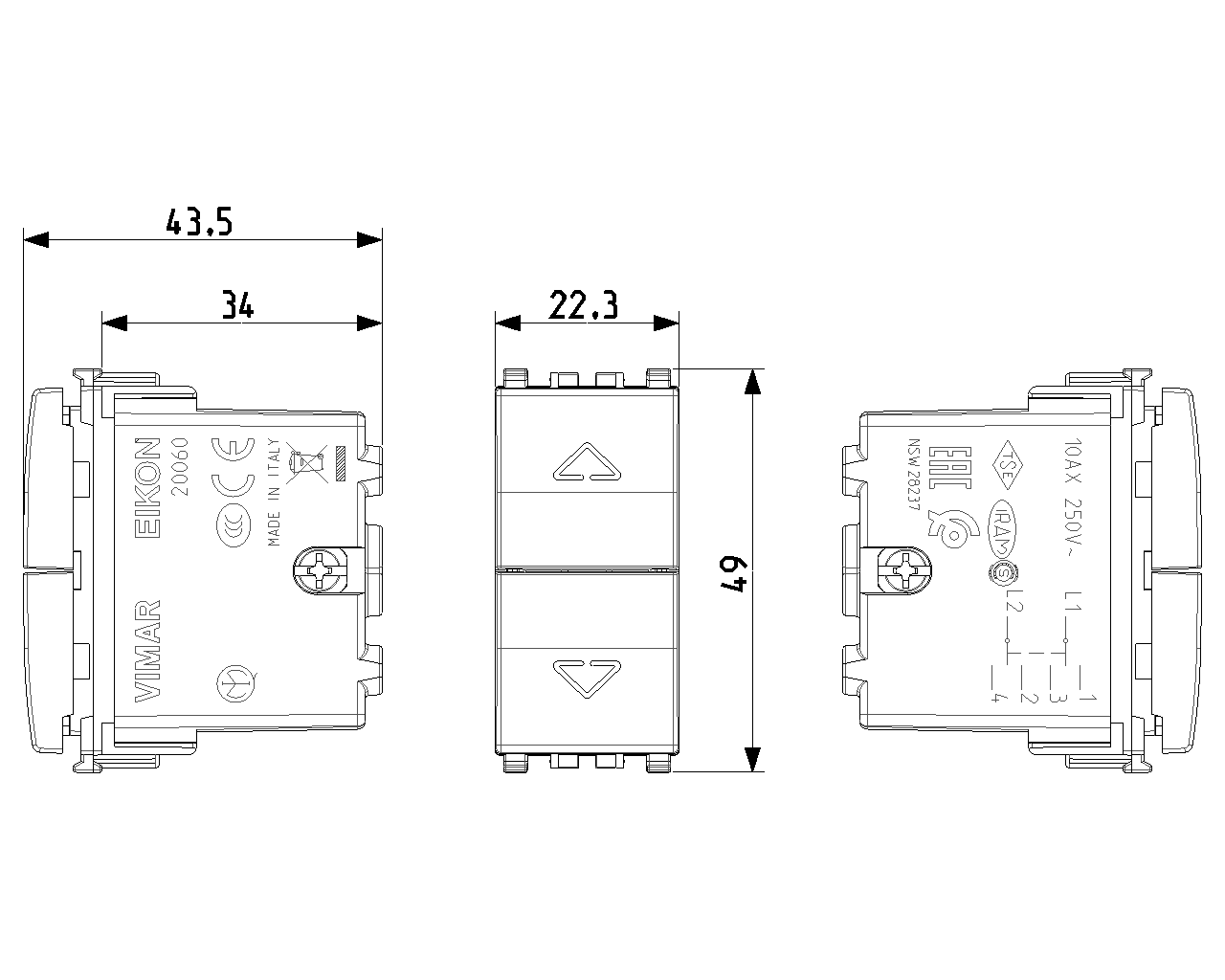

Device width
22,30 mm
Device height
49,00 mm
Device depth
43,50 mm

00. CE Marking - EU

14. TSE - Turkey

20. IQC - Argentina

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352315655
1 NR
5.1x2.8x5.3 [cm]
43.33 [g]
Barcode Qty 10 NR
8007352315662
10 NR
14.4x11.6x6 [cm]
479.47 [g]
Barcode Qty 120 NR
8007352637849
120 NR
36.5x33x13.5 [cm]
6,180 [g]
Question: Can the product be fully opened by pressing the push button once?
Answer: Yes. Upon pressure, the product even remains on after you release it, allowing the continuous closure of the circuit to which it is connected without having to hold it down.
