1P NO 10A push +white indicator white - 20068.B.B

Pdf
Vimar - 20068.B.B - 1P NO 10A push +white indicator white
Vimar - 20068.B.B - 1P NO 10A push +white indicator white
20068.B.B

Eikon white / Devices / Devices - other functions

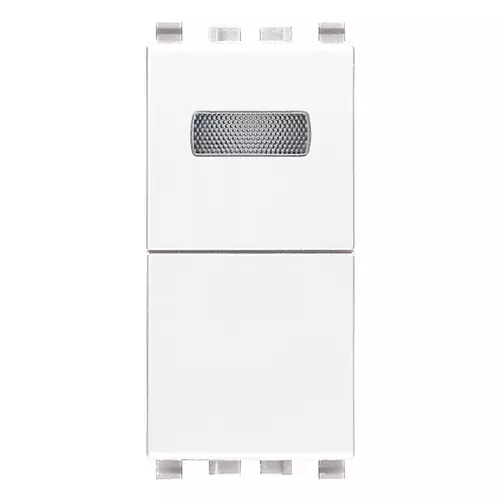

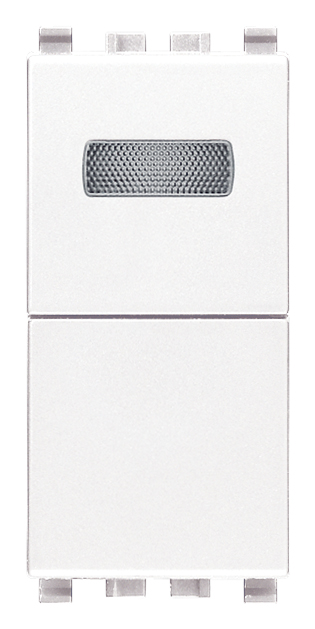

1P NO 10A push +white indicator white
1P NO 10 A 250 V~ push button + indicator unit for signalling unit, white diffuser, white. Provided without signalling unit

Product Status
3 - Active

Drawings

view encumbered art. 20068.B.B
PNG DXF
rear view art. 20068.B.B
PNG DXF
3D view art. 20068.B.B
PNG DXF
Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
1
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,50 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352315730
1 NR
4.1x2.8x5.3 [cm]
31.2 [g]
Barcode Qty 10 NR
8007352315747
10 NR
14.4x9x6 [cm]
349.8 [g]
Barcode Qty 160 NR
8007352647435
160 NR
37.5x30x13.5 [cm]
5,944 [g]
