SET/RESET device Next - 20183.N

Pdf

20183.N
Wiring devices / Traditional wiring devices / EIKON / Devices

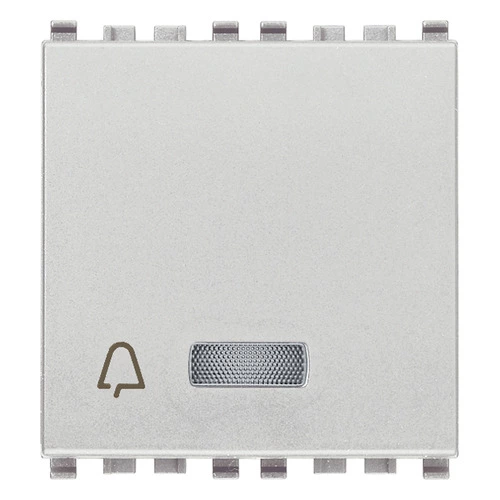

SET/RESET device Next
SET/RESET push button for emergency call system, visible in darkness, 2 NO 5 A 250 V~ relay outputs for acoustic and optical signalling, supply voltage 12 V~ 50-60 Hz or 12-24 V d.c. (SELV), Next - 2 modules. SET with built-in or from peripheral NC push buttons connected in series. RESET with peripheral NC push buttons connected in series

Product Status
3 - Active

Sheets, Manuals, Documentation


Drawings

Class group
Domestic switching devices
Class
Electronic insert for domestic switching devices
Model
Other
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Radio-controlled
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Transparent
No

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352291348
1 NR
11.2x9.6x9.8 [cm]
147.53 [g]
