2P+E 16A Universal+USB-C outlet white - 20210.USB.B

Download as PDF PDF Add to portfolio
Immagine 20210.USB.B
Foto gallery 1
Foto gallery 2
download product photo

20210.USB.B
Wiring devices / Traditional wiring devices / EIKON / Devices

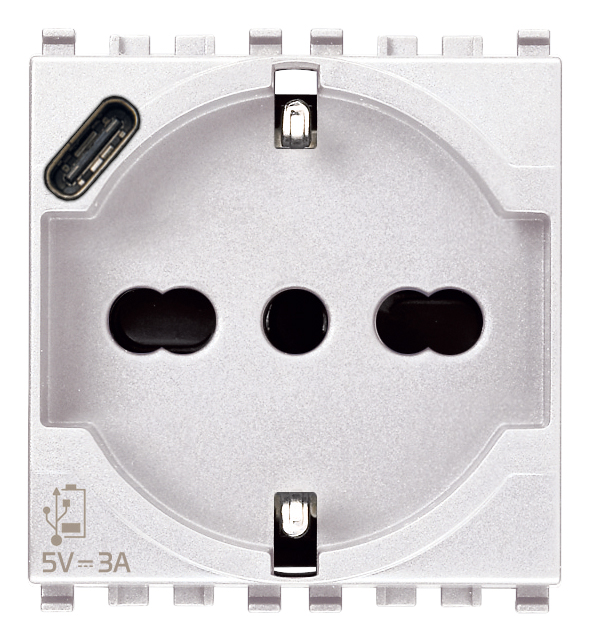

2P+E 16A Universal+USB-C outlet white
SICURY 2P+E 16 A 250 V~ universal socket outlet, Italian standard P40, USB 15 W 3 A 5 V power supply unit with 1 type C output for electronic devices, white - 2 modules

  • Device on 2 modules capable of simultaneously charging 2 devices, thanks to the universal socket outlet and the type C 3A USB socket outlet

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of active contacts (round)
0
Number of active contacts (flat)
0
With signal lamp
No
Number of socket outlets
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
2
Imprint/indication
Other
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
Yes
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
With loop through function
Yes
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Device width
44,80 mm
Device height
49,00 mm
Device depth
52,00 mm
Min. depth of built-in installation box
48,00 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
For heavy conditions according to VDE
No

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352707009
1 NR
6x5.4x5.2 [cm]
80.2 [g]
Barcode Qty 60 NR
8007352769458
60 NR
37.5x30x13.5 [cm]
5,172 [g]
