2P+E 5A English SICURY outlet Next - 20214.N

Pdf
Vimar - 20214.N - 2P+E 5A English SICURY outlet Next
Vimar - 20214.N - 2P+E 5A English SICURY outlet Next

20214.N
Wiring devices / Traditional wiring devices / EIKON / Devices

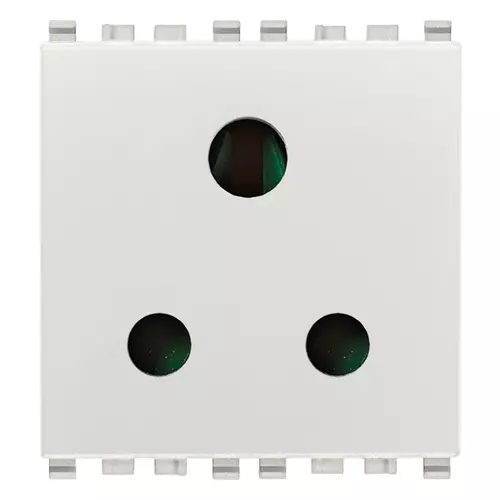

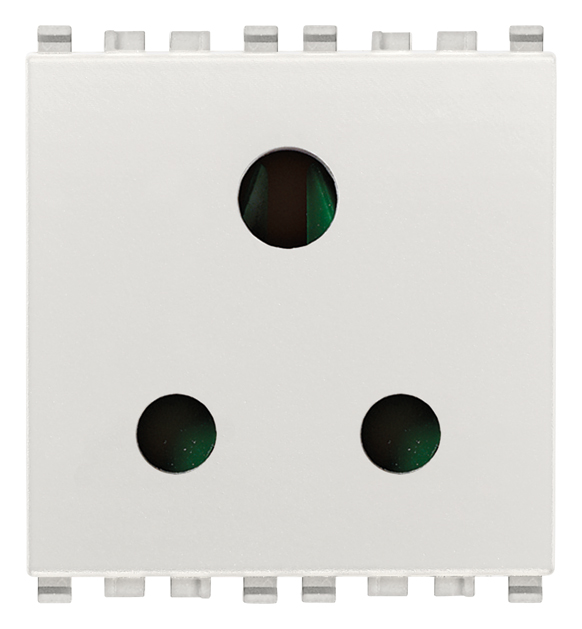

2P+E 5A English SICURY outlet Next
2P+E 5 A 250 V~ SICURY socket outlet, English standard, Next 2 - modules

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 20214.N
PNG DXF
rear view art. 20214.N
PNG DXF
3D view art. 20214.N
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
British Standard
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Silver
RAL-number (similar)
9022
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
5 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
27,30 mm

00. CE Marking - EU

08. ASTA - UK

10. EAC Eurasian Customs Union

30. G-Mark - Gulf Countries

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352471740
1 NR
5.1x4.3x5.3 [cm]
42.3 [g]
Barcode Qty 5 NR
8007352471757
5 NR
14.4x11.6x6 [cm]
243.1 [g]
