2P+E 5A English switch.socket+pilot Next - 20215.L.N

Pdf
Vimar - 20215.L.N - 2P+E 5A English switch.socket+pilot Next
Vimar - 20215.L.N - 2P+E 5A English switch.socket+pilot Next

20215.L.N
Wiring devices / Traditional wiring devices / EIKON / Devices

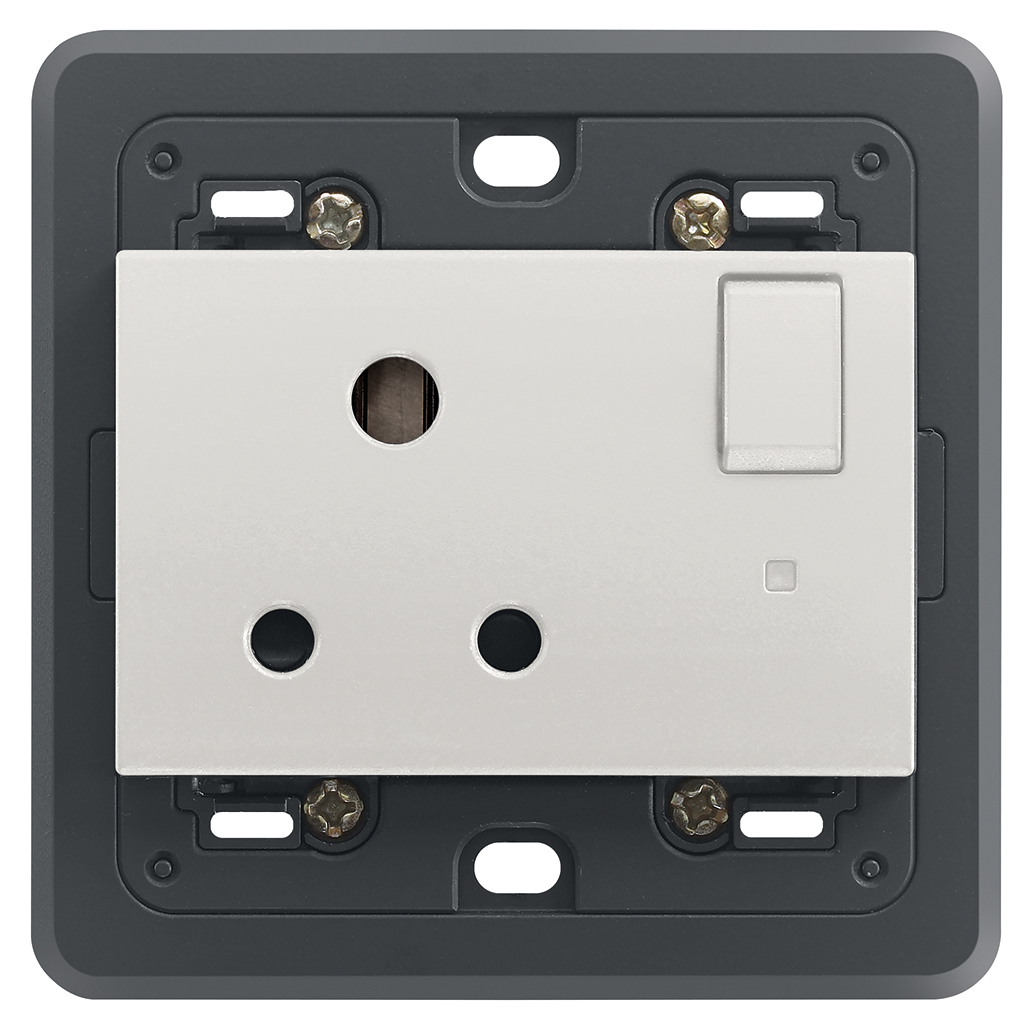

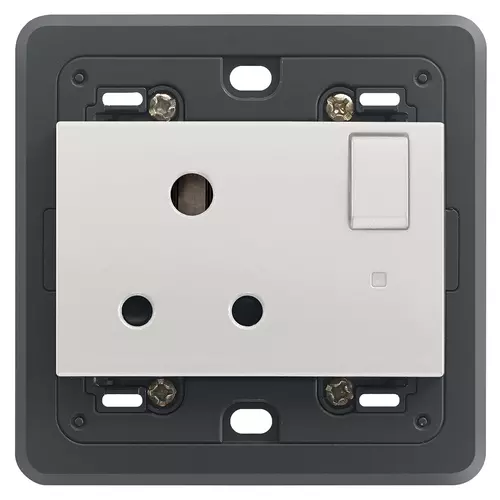

2P+E 5A English switch.socket+pilot Next
2P+E 5 A 250 V~ SICURY socket outlet, English standard, 2P 1-way switch, indicator unit, with built-in mounting frame for 3-module British standard installation, Next

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
British Standard
Number of units
2
Number of modules (module system)
2
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Silver
RAL-number (similar)
9022
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
5 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
82,50 mm
Device height
82,50 mm
Device depth
29,50 mm

00. CE Marking - EU

08. ASTA - UK

30. G-Mark - Gulf Countries

37. Marking - Morocco

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352399853
1 NR
8.5x3.9x8.6 [cm]
102.1 [g]
Barcode Qty 10 NR
8007352399860
10 NR
20.7x18.5x9.6 [cm]
1,120 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
