Switched 2P+E 15A English outlet Next - 20217.L.N

Pdf
20217.L.N

Eikon Next / Devices / Controlled socket outlets

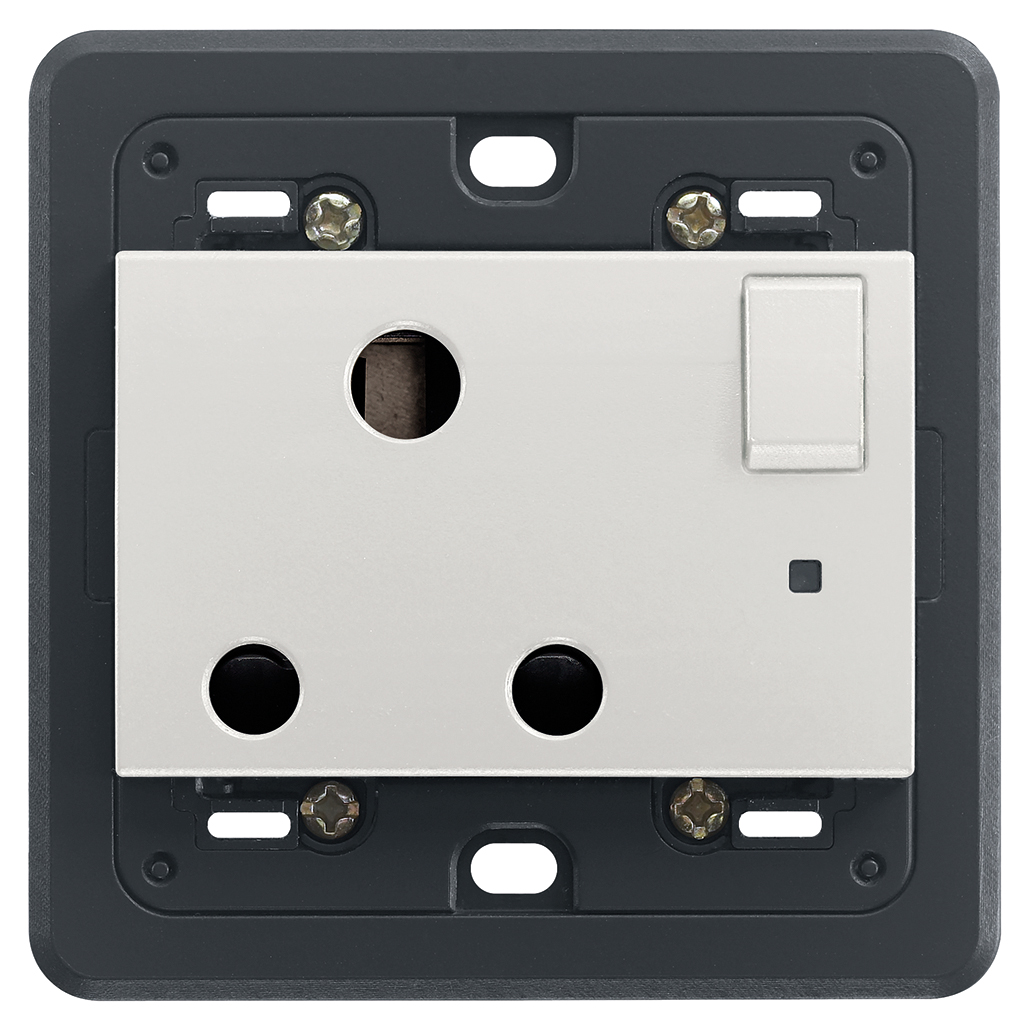

Switched 2P+E 15A English outlet Next
2P+E 15 A 250 V~ SICURY socket outlet, English standard, 2P 1-way switch, indicator unit, with built-in mounting frame for 3-module British standard installation, Next

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
British Standard
With built-in USB power supply
No
Number of units
2
Number of modules (module system)
2
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Silver
RAL-number (similar)
9022
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
With on/off switch
Yes
With loop through function
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Width of device
82,50 mm
Height of device
82,50 mm
Depth of device
37,60 mm
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352399952
1 NR
8.5x3.9x8.6 [cm]
104.4 [g]
Barcode Qty 10 NR
8007352399969
10 NR
20.7x18.5x9.6 [cm]
1,141.4 [g]
