A+C-USB supply unit 15W 3A 5V 2M white - 20295.AC.B

Pdf
Vimar - 20295.AC.B - A+C-USB supply unit 15W 3A 5V 2M white
Vimar - 20295.AC.B - A+C-USB supply unit 15W 3A 5V 2M white

20295.AC.B
Wiring devices / Traditional wiring devices / EIKON / Devices

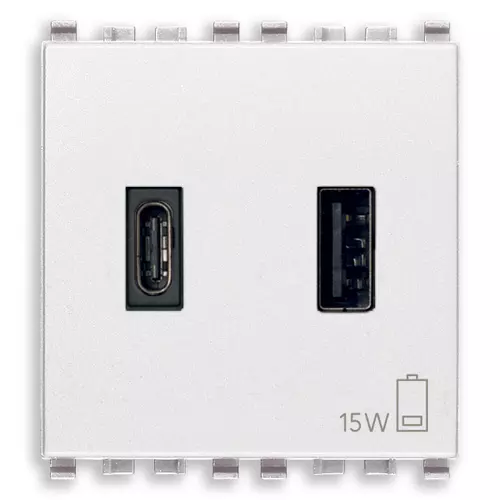

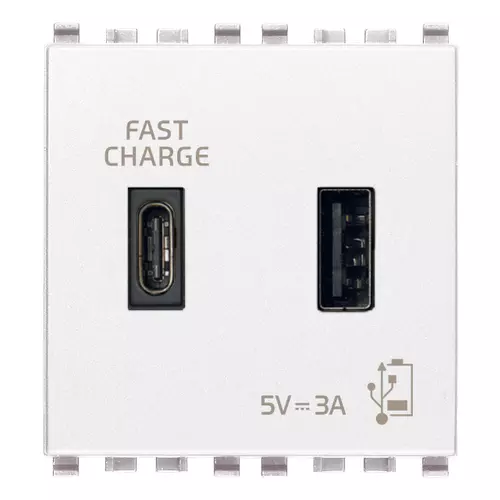

A+C-USB supply unit 15W 3A 5V 2M white
5 V 3 A USB power supply unit for electronic devices, 1 A-USB and C-USB ports providing a total of 3 A for charging a device up to 3 A (e.g. tablet) or simultaneously two devices (e.g. tablet, smartphone), supply voltage 120-240 V~ 50/60 Hz, white - 2 modules

  • The type C USB socket outlet is a standard used in latest-generation devices; since it is reversible, it can be inserted either way round
  • Type C outputs are designed for fast charging the device with currents up to 3 A on a single output

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

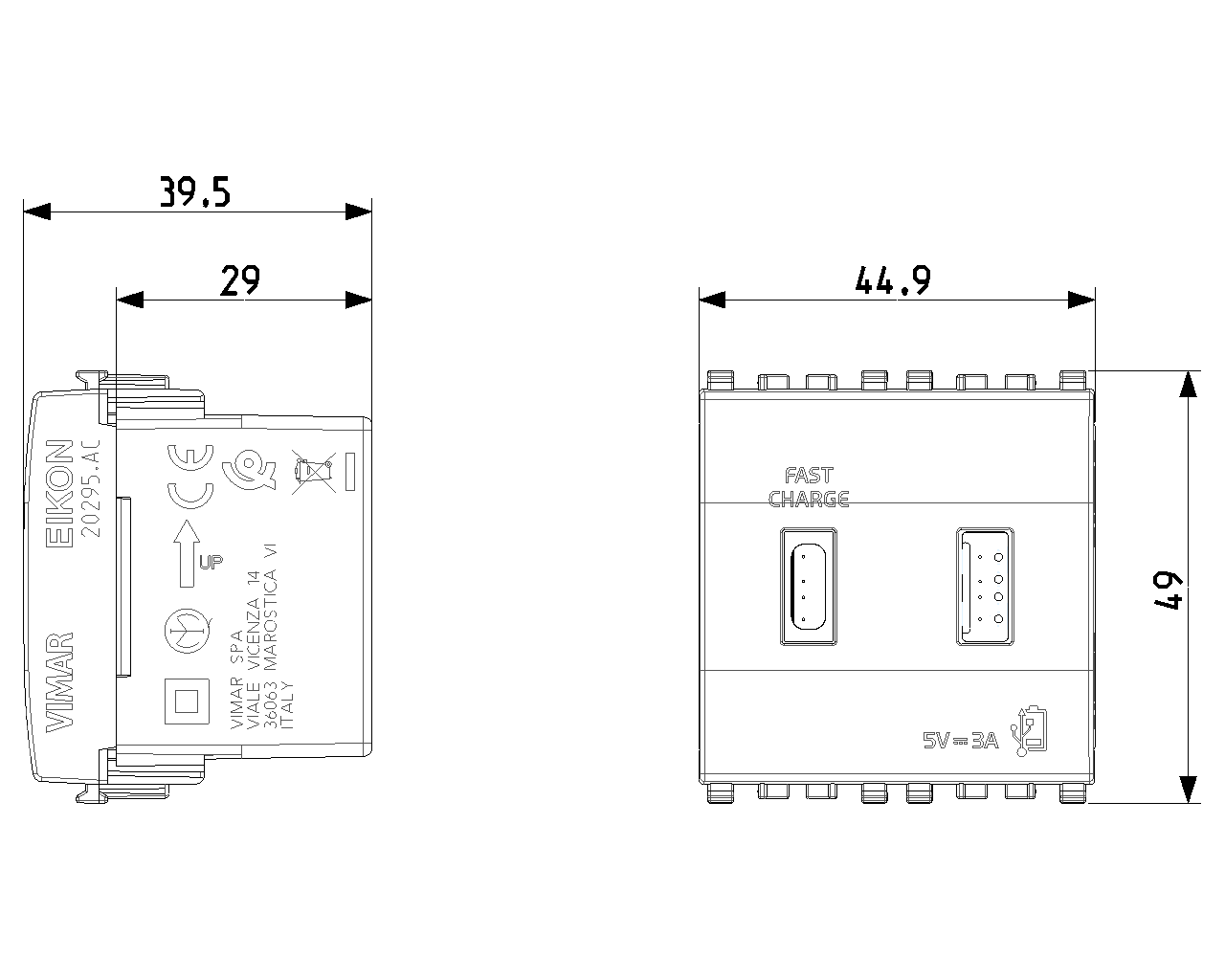

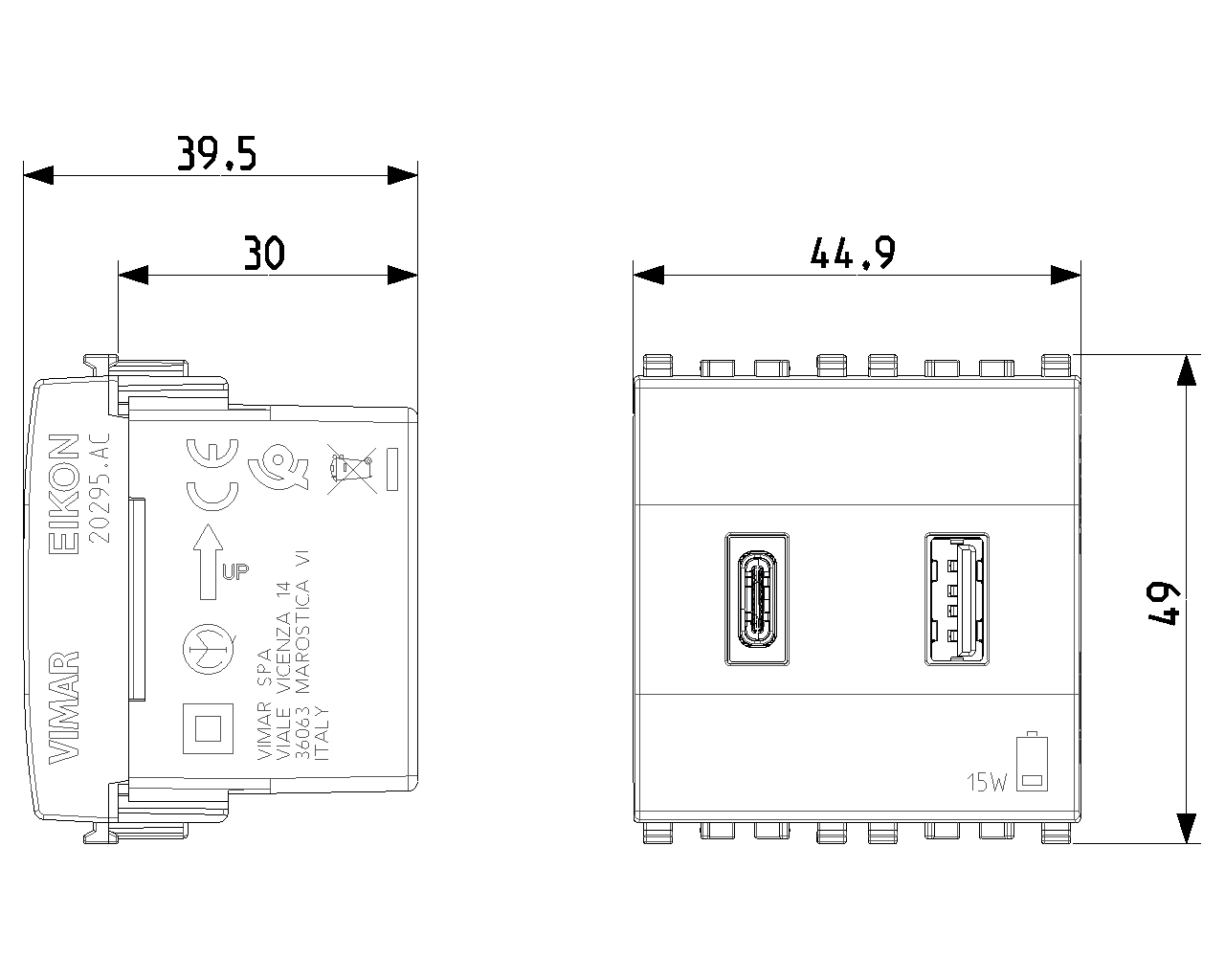

view encumbered art. 20295.AC.B
PNG DXF

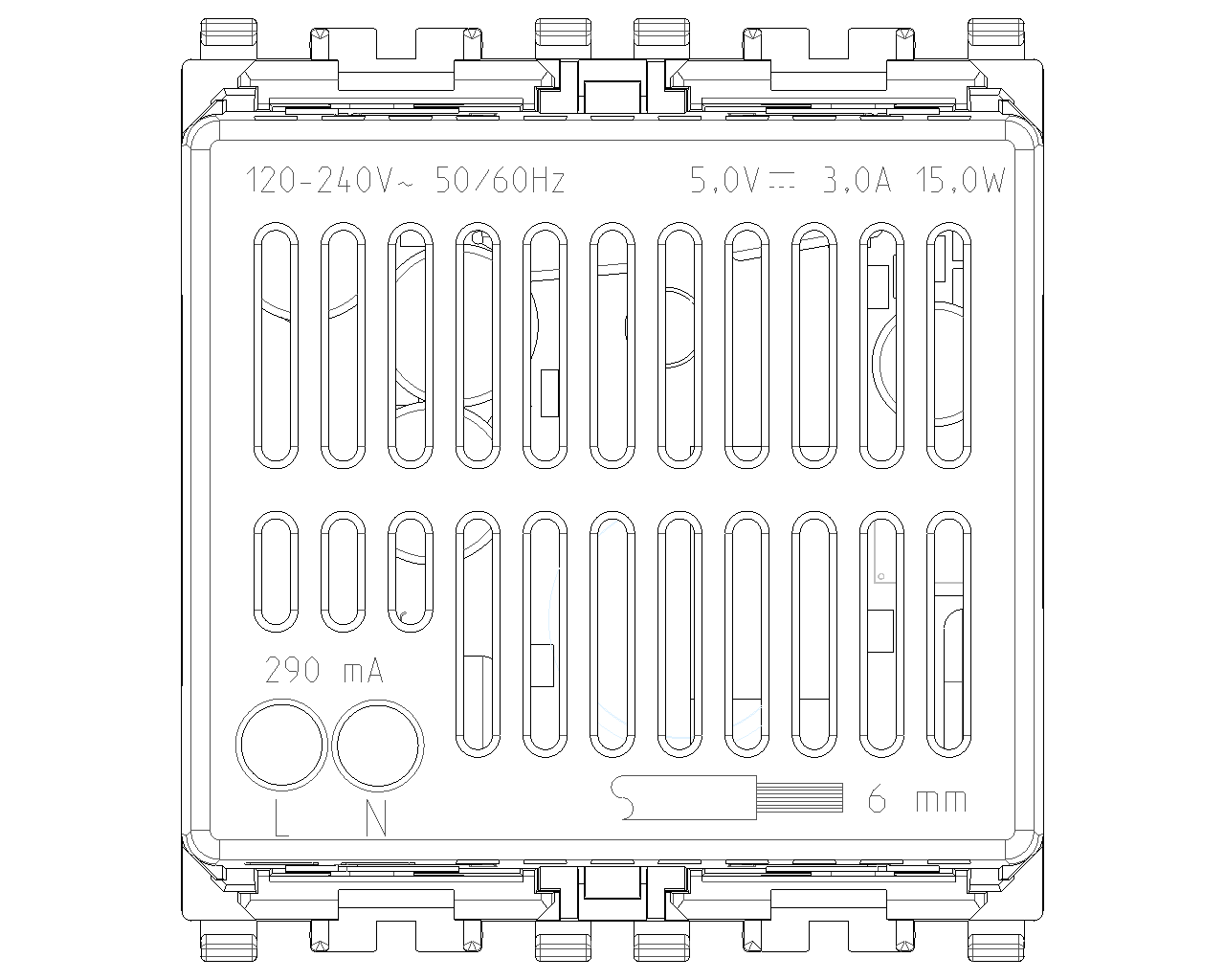

rear view art. 20295.AC.B
PNG DXF

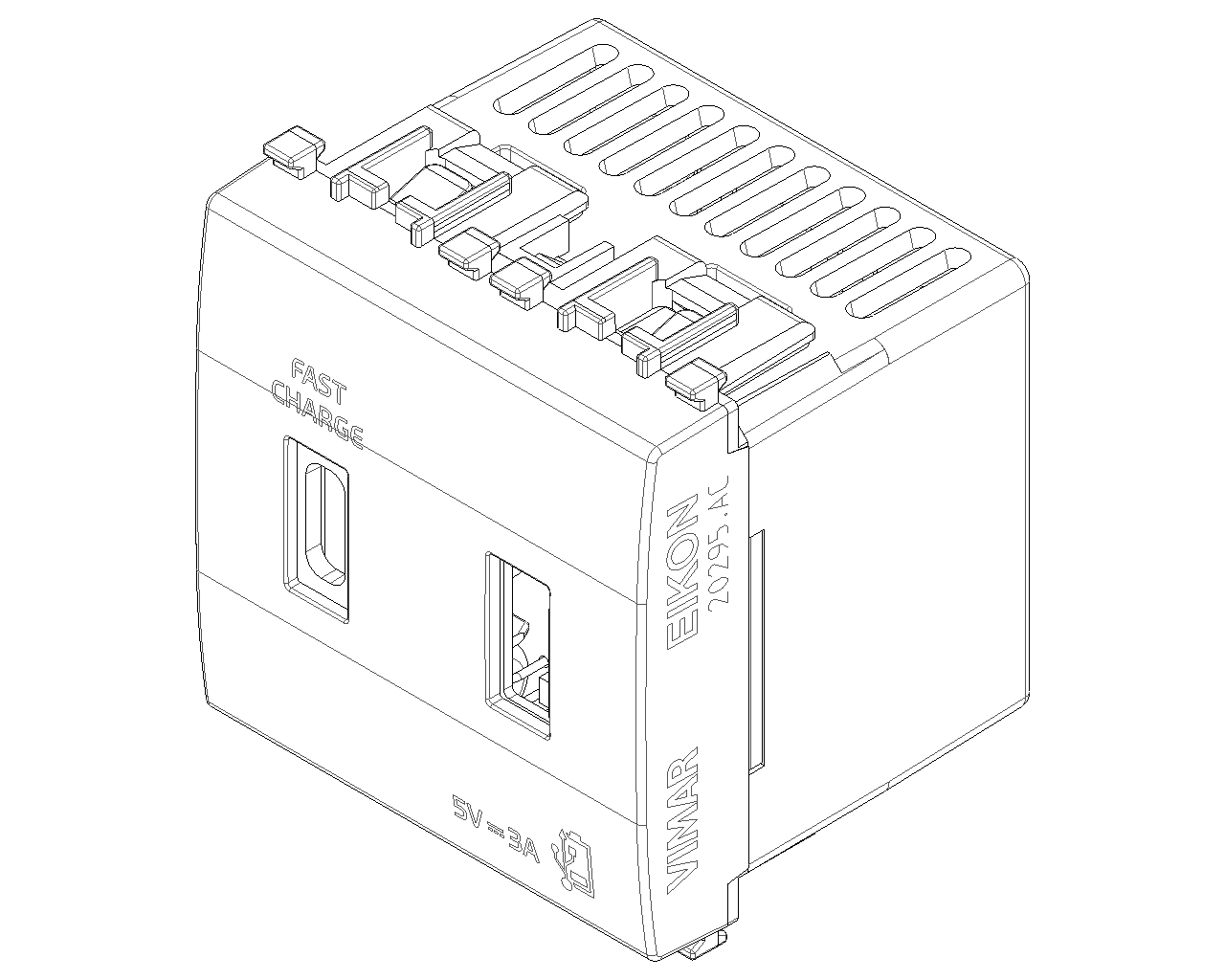

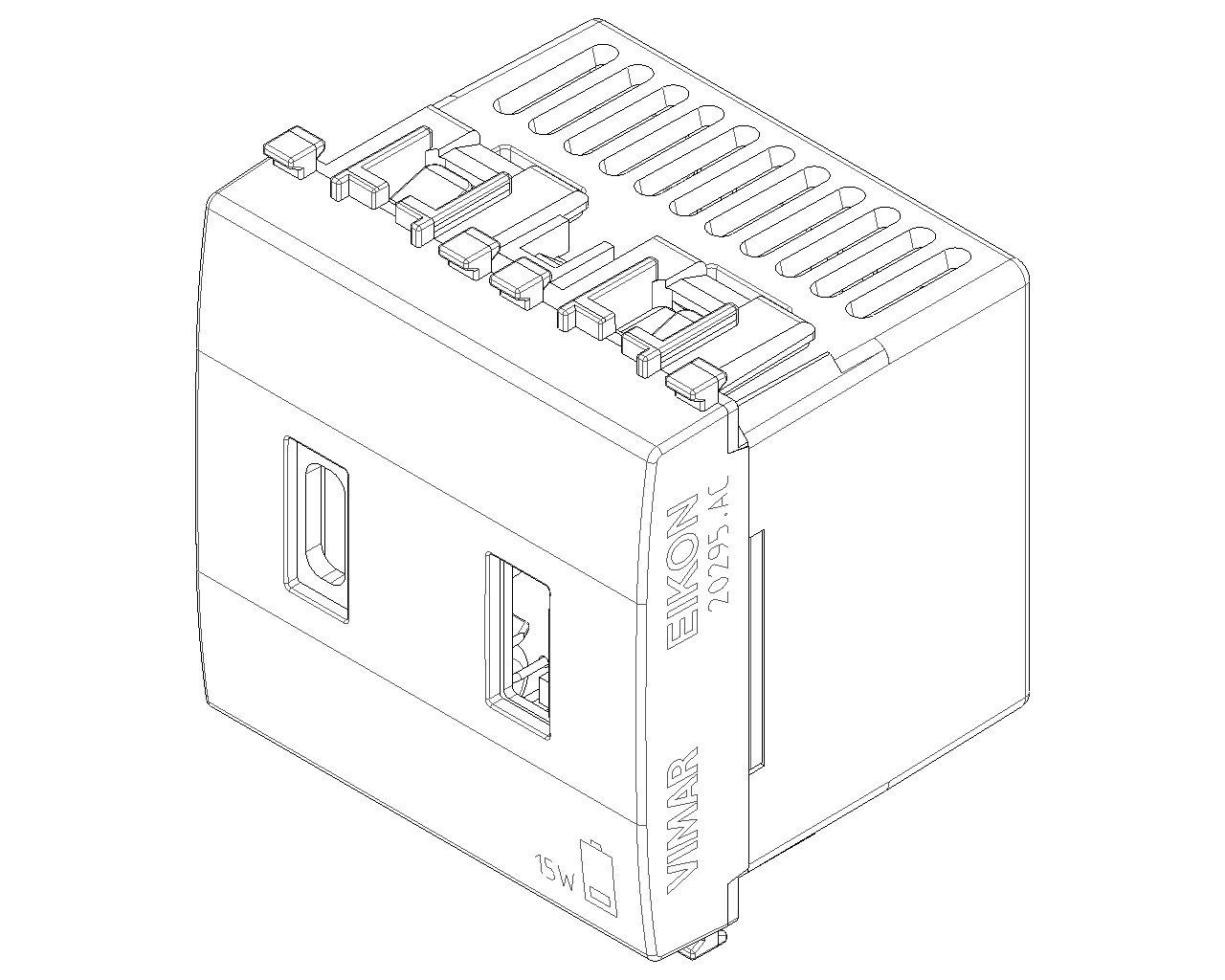

3D view art. 20295.AC.B
PNG DXF
Class group
Domestic switching devices
Class
USB power supply
Model
Bus
Mounting method
Flush-mounted
Colour
White
RAL-number
0

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352647152
1 NR
6x5.4x5.3 [cm]
65.6 [g]
Barcode Qty 10 NR
8007352647169
10 NR
28.1x13.1x6 [cm]
736 [g]
Barcode Qty 120 NR
8007352686762
120 NR
38.5x29x30 [cm]
9,409 [g]
