RJ45 Cat5e UTP Avaya outlet white - 20338.1.B

20338.1.B
System infrastructure / Netsafe structured wiring / EIKON / Devices

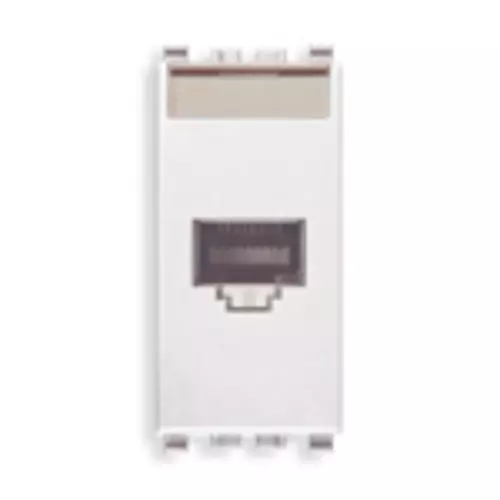

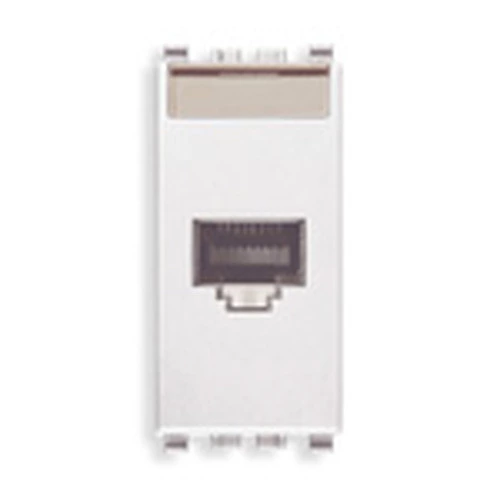

RJ45 Cat5e UTP Avaya outlet white
RJ45 outlet with AT&T/Lucent Technologies/Avaya (MPS100E) connector, Cat. 5e, unshielded, T568A/B universal wiring, 8 contacts, insulation-piercing terminals, white

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• FI - Foglio istruzioni ZIS_49400385A0 (297 kb)

---

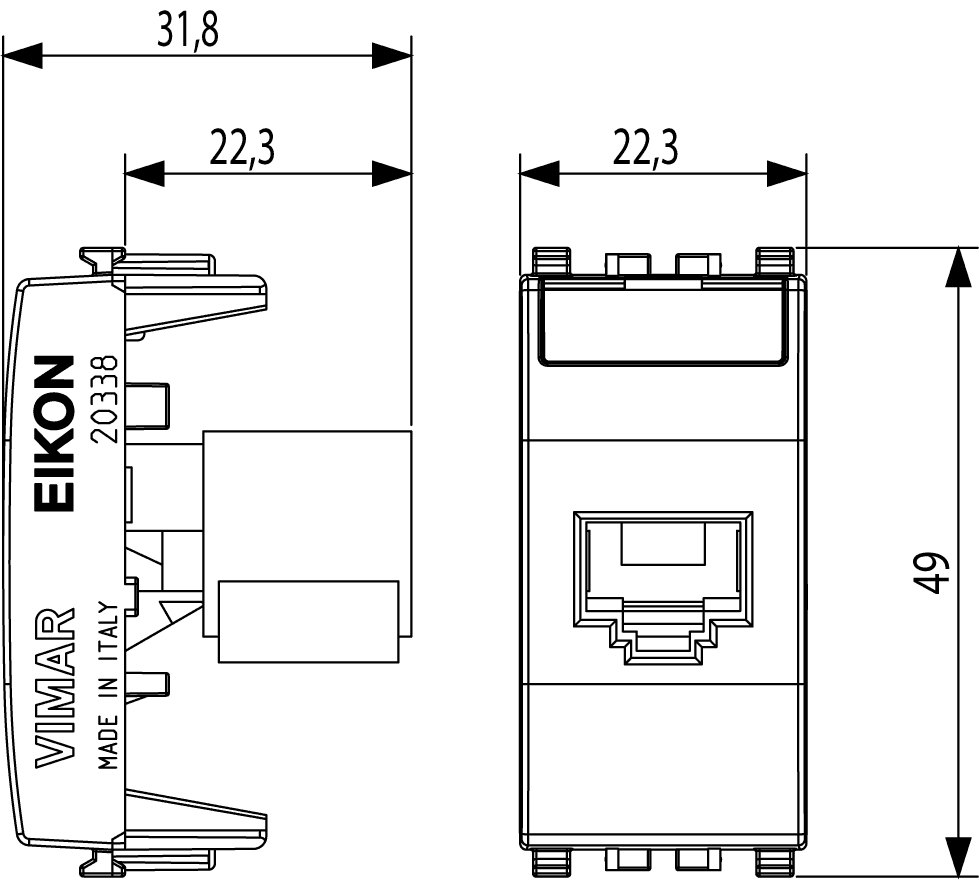

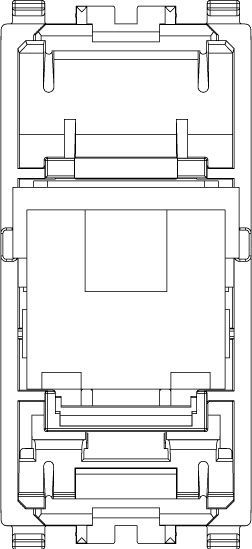

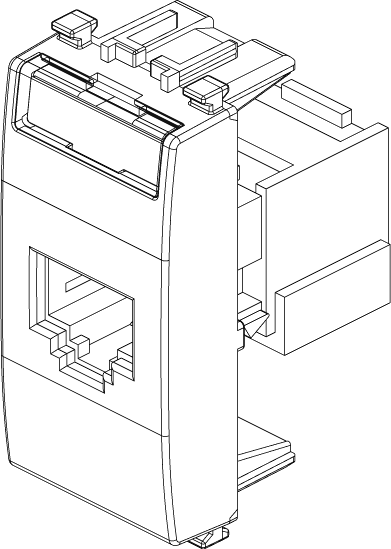

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Data and telecommunication

Class
Modular connector

Model
Bus (jack)

Type of connector
RJ45 8(8)

Screened
No

Category
5E

Connection type
Crimp

Special tool necessary
Yes

Suitable for round cable
Yes

Suitable for flat cable
Yes

Suitable for litz wire conductor
No

Colour
White

00. CE Marking - EU

43. UKCA mark - Great Britain

Minimum order quantity: 10 NR

---

Barcode

8007352313712

1 NR

5.1x2.8x5.3 [cm]

18.53 [g]

8007352313729

10 NR

14.4x11.6x6 [cm]

235.3 [g]
