Vimar - 20340.1.N - RJ45 Cat5e Panduit UTP outlet Next

20340.1.N

Eikon Next / Devices / RJ/EDP socket outlets

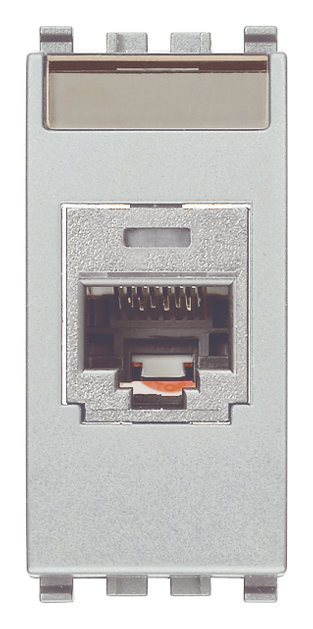

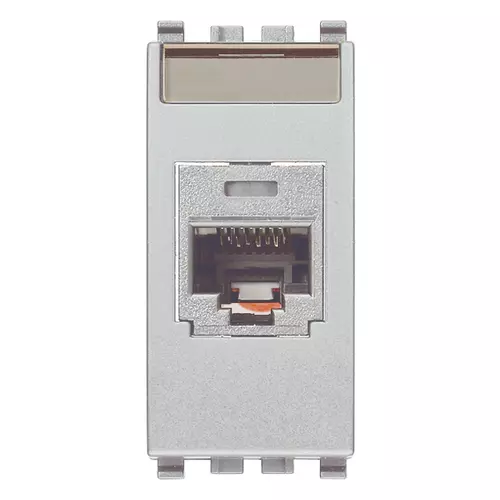

RJ45 Cat5e Panduit UTP outlet Next
RJ45 outlet with Panduit (MINI-COM) connector, Cat. 5e, unshielded, T568A/B universal wiring, 8 contacts, 110-type insulation-piercing terminals, Next

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data
• Ask a question

Sheets, Manuals, Documentation

• Instruction sheet (365 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Data and telecommunication

Class
Modular connector

Model
Bus (jack)

Type of connector
RJ45 8(8)

Screened
No

Category
5E

Connection type
Crimp

Special tool necessary
Yes

Suitable for round cable
Yes

Suitable for flat cable
No

Suitable for litz wire conduct
No

Suitable for solid core
No

Colour
Silver

00. CE Marking - EU

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 10 NR

---

Barcode

8007352289802

1 NR

6x2.8x5.3 [cm]

18.13 [g]

8007352289819

10 NR

14.4x13.1x6 [cm]

238.47 [g]
