LED-emergency lamp 1M 230V Next - 20382.N

Pdf
Vimar - 20382.N - LED-emergency lamp 1M 230V Next
Vimar - 20382.N - LED-emergency lamp 1M 230V Next
20382.N

Eikon Next / Devices / Emergency lighting fittings

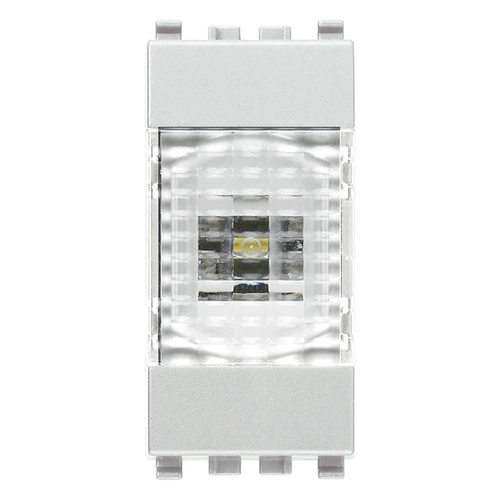

LED-emergency lamp 1M 230V Next
Lamp with high-efficiency LED, supply voltage 230 V~ 50-60 Hz, automatic emergency device, replaceable rechargeable Ni-MH battery, 2 hours of operating time, Next

Product Status
3 - Active

Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Monitoring equipment
None
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Material housing
Plastic
Colour housing
Silver
Material cover
Without cover
Voltage type
AC
Nominal voltage
230,00 - 230,01 v
Degree of protection (IP)
IP40
Protection class
II
Max. system power
1,00 W
Rated luminous flux according to IEC 62722-2-1
3
Width
22,30 mm
Height/depth
47,20 mm
Built-in height/depth
37,00 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352286955
1 NR
5.1x2.8x5.3 [cm]
48.27 [g]
Barcode Qty 10 NR
8007352286962
10 NR
14.4x11.6x6 [cm]
526.87 [g]
Barcode Qty 120 NR
8007352657038
120 NR
36.5x33x13.5 [cm]
6,744 [g]
