Green prismatic indicator unit - 20387.V

Pdf

20387.V
Wiring devices / Traditional wiring devices / EIKON / Devices

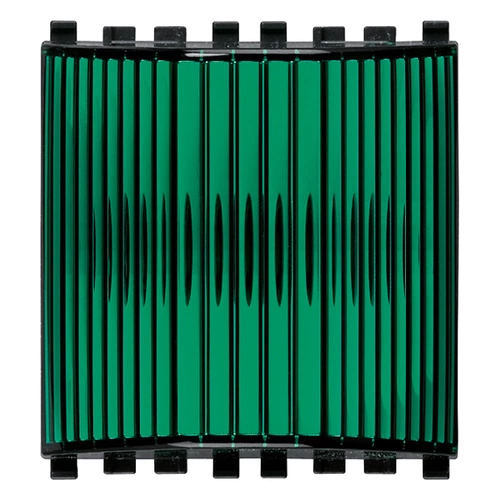

Green prismatic indicator unit
Prismatic indicator unit for lamps 230 V~ 3 W max, 14770, 14771, 14776 and 14777, vert diffuser - 2 modules. Lamp not provided

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Lamp holder
E10
With light source
No
Lamp type
Incandescent lamp
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
6029
Transparent
No
Colour light source
Green
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 V
Max. lamp power
3 W

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352265301
1 NR
6x5.4x5.3 [cm]
43.2 [g]
Barcode Qty 5 NR
8007352265318
5 NR
17.2x13.1x6 [cm]
277.27 [g]
