1P+N C10 10mA RCBO Next - 20411.10.N

Pdf
20411.10.N

Eikon Next / Devices / Residual current breakers (RCBOs)

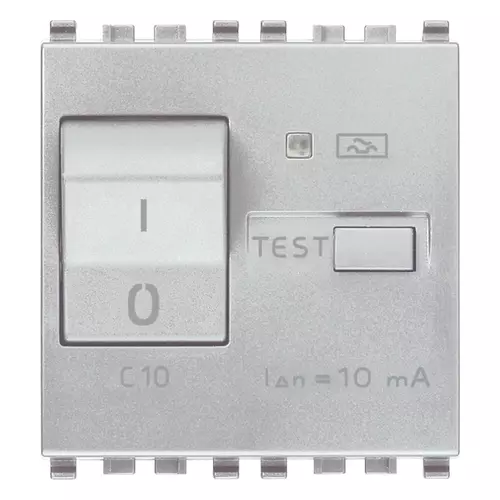

1P+N C10 10mA RCBO Next
1P+N C 10 residual current breaker with overcurrent protection, supply voltage 120-230 V~ 50-60 Hz, IΔn 10 mA, breaking capacity 3000 A, Next - 2 modules

Product Status
3 - Active

Class group
Circuit breakers and fuses
Class
Earth leakage circuit breaker
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 v
Rated current
10 A
Rated fault current
10 A
Leakage current type
A
Current limiting class
1
Rated short-circuit breaking capacity Icn acc. EN 61009-1
3.000,00 kA
Surge current capacity
3,00 kA
Voltage type
AC
Frequency
50/60 Hz
Release characteristic
C
Concurrently switching N-neutral
Yes
Over voltage category
3
Built-in depth
38,00 mm
Suitable for flush-mounted installation
Yes
Anti-nuisance tripping version
No
Degree of protection (IP)
IP40
Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352286429
1 NR
6x5.4x5.3 [cm]
97.73 [g]
Barcode Qty 5 NR
8007352286436
5 NR
17.2x13.1x6 [cm]
550.8 [g]
