IR motion detector white - 20485.B

Pdf
20485.B

Eikon white / Systems / Domotics - devices

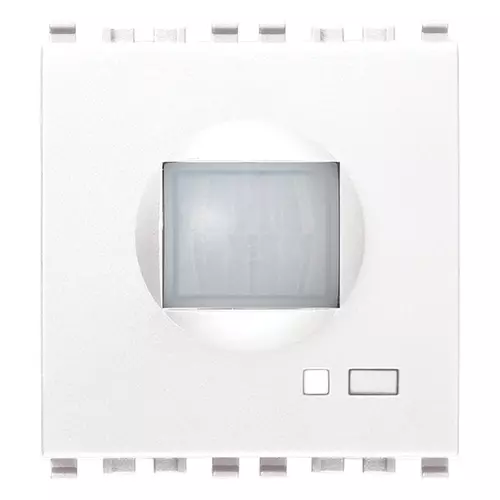

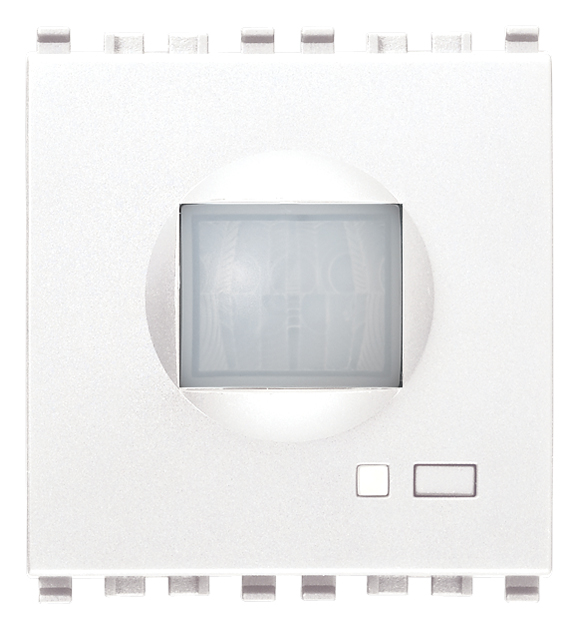

IR motion detector white
Passive infrared motion detector, white - 2 modules

Product Status
4 - Active

Class group
Installation bus systems
Class
Movement sensor for bus system
Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Model
Movement sensor
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
No
Operation mode switch
No
Animal zone
No
Staircase monitoring
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
No
DALI-2 certified
No
Optimum mounting height
1,20 m
Max. transmission range sideways
0,00 m
Max. transmission range frontally
10 m
Diameter detection range on floor
0 m
Detection angle vertical
36
Detection angle horizontal
112
Number of digital inputs
0
Number of channels
1
Switching power
0 W
Min. switch-on time
10 s
Max. duty cycle
250 min
Min. depth of built-in installation box
30 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352313286
1 NR
11.2x9.6x9.8 [cm]
116.27 [g]
