Table frame 8M Next - 20788.N

Pdf
Vimar - 20788.N - Table frame 8M Next
Foto gallery #1
Foto gallery #2
Foto gallery #3
Foto gallery #4
Foto gallery #5
Foto gallery #6
Vimar - 20788.N - Table frame 8M Next
20788.N

Eikon Next / Mounting boxes / Table mounting

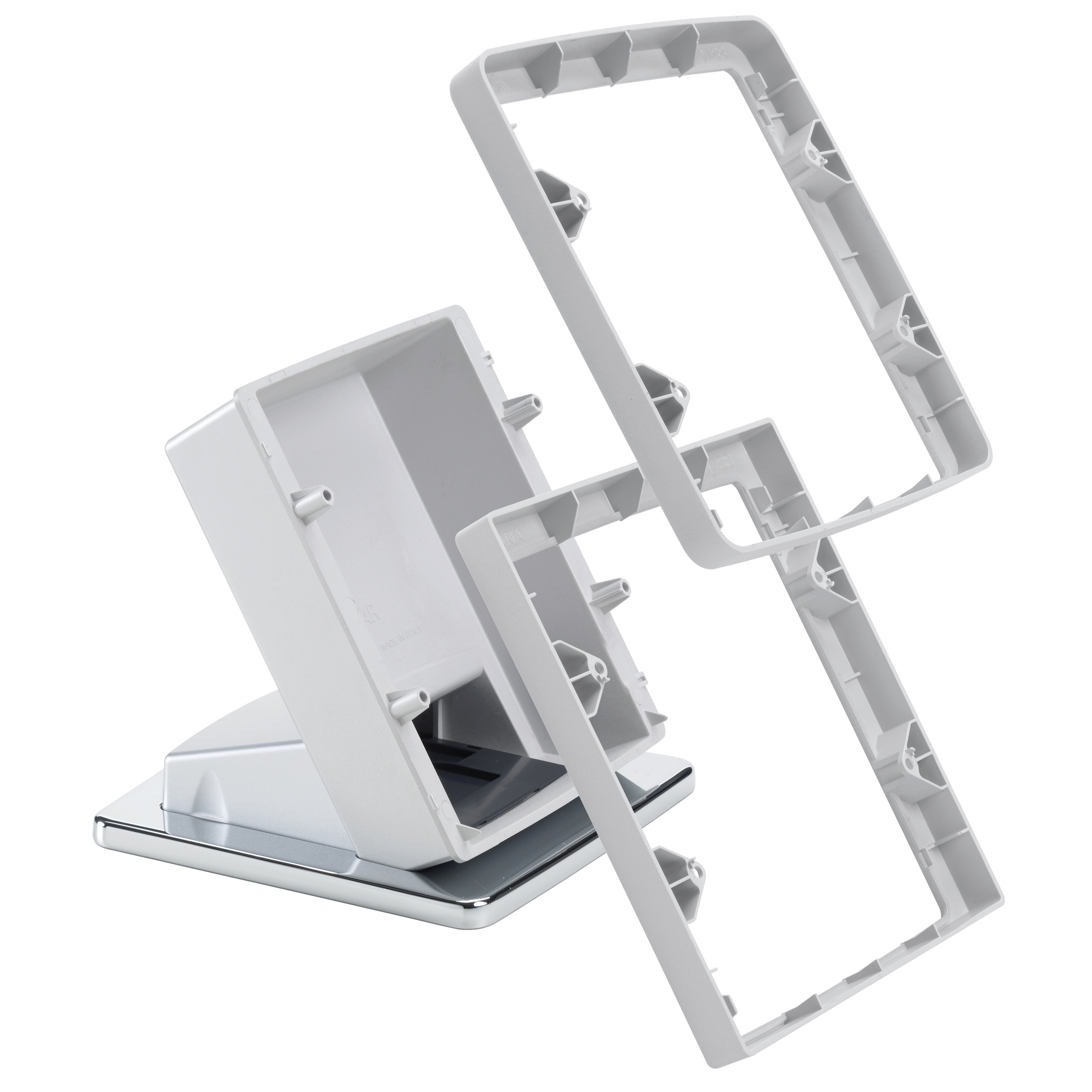

Table frame 8M Next
Table mounting, 8 (4+4) modules, Next. Delivered with frame for Eikon Classic or Round cover plate

Product Status
2 - Will be discontinued

Drawings

view encumbered art. 20788.N
PNG DXF
rear view art. 20788.N
PNG DXF
3D view art. 20788.N
PNG DXF
Class group
Domestic switching devices
Class
Surface mounted box for flush-mounted switching equipment
Assembly arrangement
Other
Suitable for modular domestic switching devices
Yes
Number of modules (module system)
8
Number of units
8
Mounting direction
Horizontal
Material
Plastic
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9022
Transparent
No
With cover frame
No
With duct entry
No
With cable entry
Yes
With screw gland entry
No
Shock resistant
Yes
Degree of protection (IP)
IP20
Device width
142,30 mm
Device height
150,30 mm
Device depth
134,00 mm

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352353978
1 NR
19x16.5x13 [cm]
1,004.1 [g]
