20850.B
Eikon white / Systems / KNX

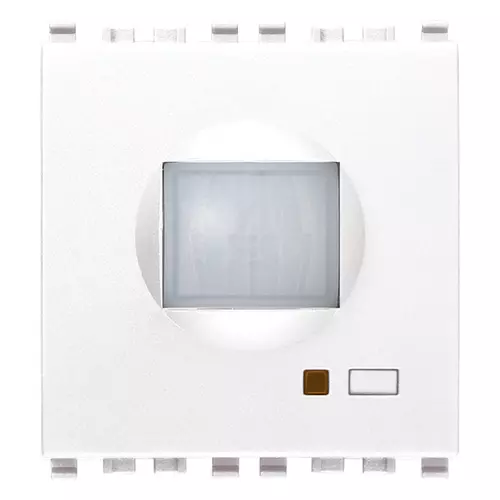

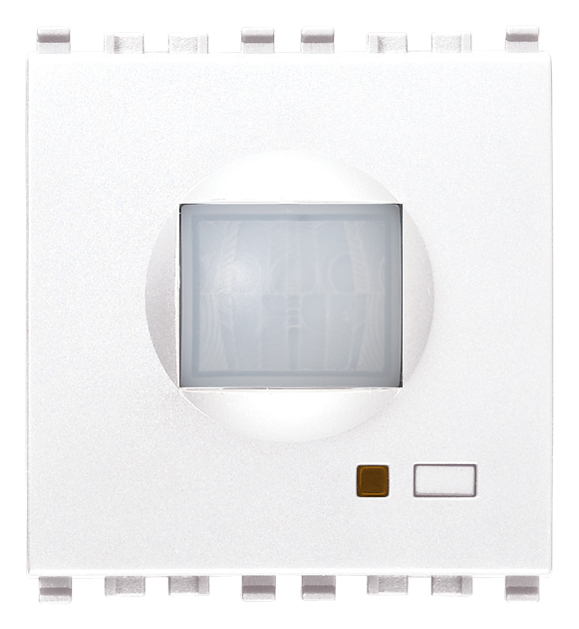

KNX IR presence detector white
Passive infrared motion detector, KNX standard, white - 2 modules
Product Status
4 - Active
Sheets, Manuals, Documentation
Product Software
Drawings
Class group
Installation bus systems
Class
Movement sensor for bus system
Bus system KNX
Yes
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
Model
Movement sensor
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Surface finishing
Matt
Colour
White
RAL-number (akin)
9016
Transparent
No
Bus connection included
Yes
Staircase monitoring
Yes
Response value luminosity adju
Yes
Max. transmission range sidewa
10,00 m
Detection angle vertical
-30 - 6
Detection angle horizontal
-56,00 - 56,00
Minimum order quantity: 1 NR
Barcode
8007352390362
1 NR
11.2x9.6x9.8 [cm]
106.3 [g]
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see conditions of use.
