21665.70
Smart systems&products / By-me Plus / Shared components / Cover plates

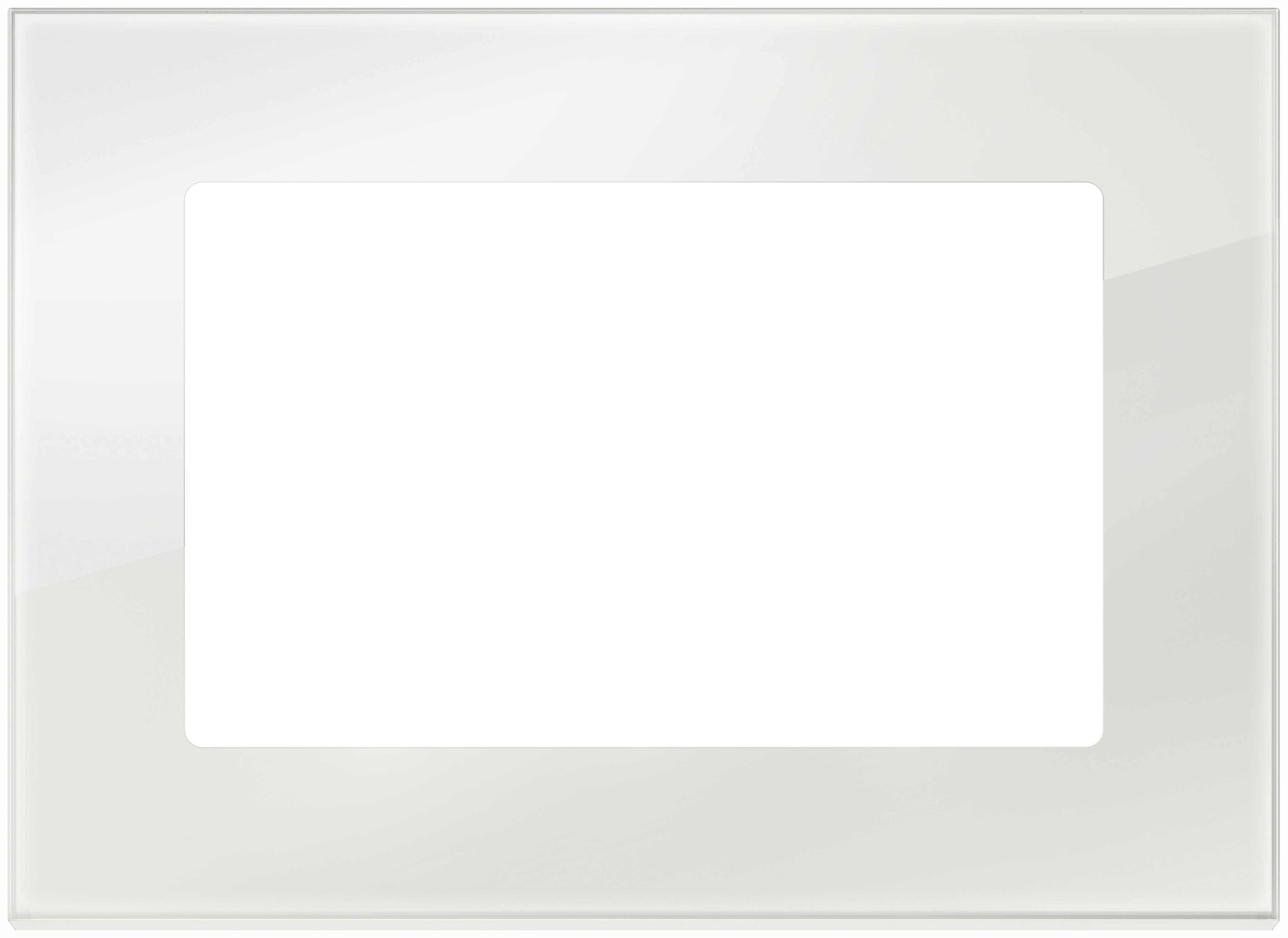

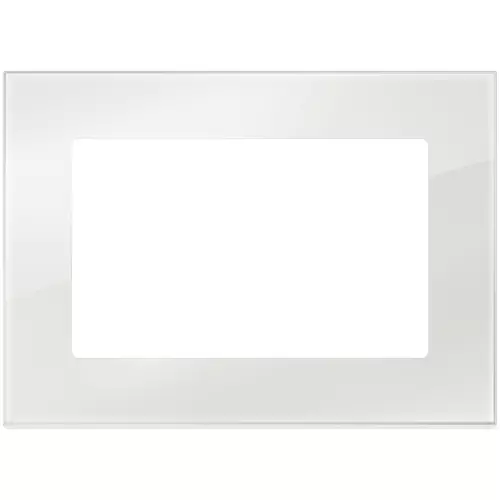

Plate 10in crystal white diamond
10 in cover plate, crystal, white diamond
Product Status
3 - Active
Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Cover frame for domestic switching devices
Cover frame for domestic switching devices
Number of units
1
1
Mounting direction
Horizontal and vertical
Horizontal and vertical
Number of units horizontal
1
1
Number of units vertical
1
1
Number of modules horizontal (module system)
1
1
Number of modules vertical (module system)
1
1
With mounting grid
Yes
Yes
Suitable for subfloor installation duct box
Yes
Yes
Suitable for wall duct
Yes
Yes
Suitable for built-in installation
Yes
Yes
Label space/information surface
Yes
Yes
Material
Glass
Glass
Material quality
Glass
Glass
Halogen free
Yes
Yes
Surface protection
Other
Other
Surface finishing
Glossy
Glossy
Colour
White
White
RAL-number (similar)
9016
9016
Transparent
No
No
With hinged lid
No
No
Degree of protection (IP)
IP00
IP00
Type of fastening
Clamp mounting
Clamp mounting
Width
345,00 mm
345,00 mm
Height
250,00 mm
250,00 mm
Depth
16,20 mm
16,20 mm
Built-in width
345,00 mm
345,00 mm
Built-in height
250,00 mm
250,00 mm
Diameter bore hole (opening)
0 mm
0 mm
Minimum order quantity: 1 NR
Barcode
8007352423848
1 NR
40.5x30x7 [cm]
1,098 [g]
| Question: | What is the related completion cover plate? |
|---|---|
| Answer: | The correct code is 21665.70 |
