1P 10AX 2M axial reversing switch mech. - 30012.2

Pdf
Vimar - 30012.2 - 1P 10AX 2M axial reversing switch mech.
Vimar - 30012.2 - 1P 10AX 2M axial reversing switch mech.

30012.2
Wiring devices / Traditional wiring devices / LINEA / Devices

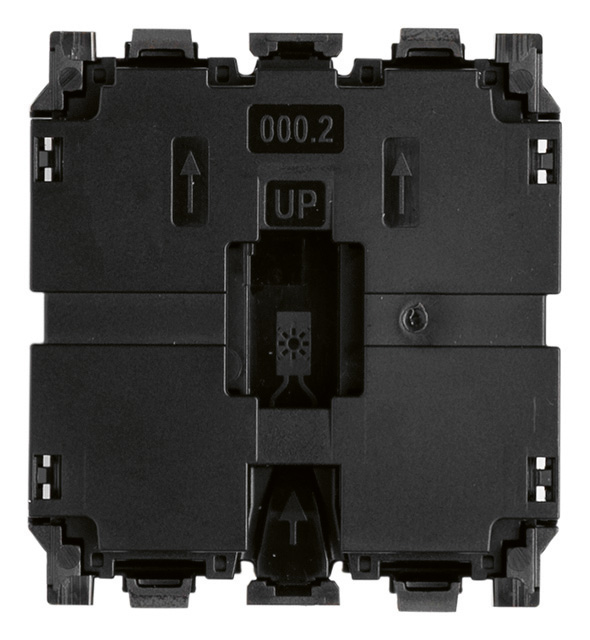

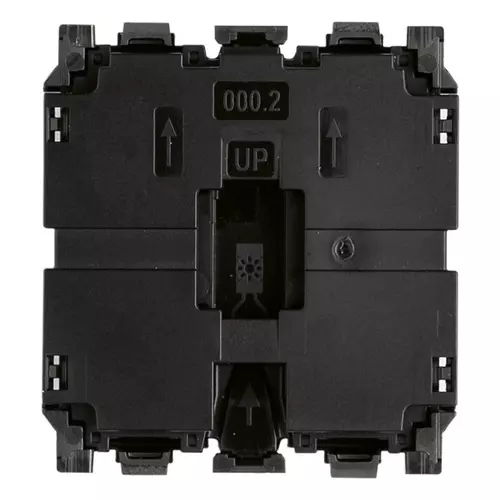

1P 10AX 2M axial reversing switch mech.
1P 10 AX 250 V~ lightable reversing switch mechanism, to be completed with 2-module button - 2 modules. Max 100 W for lamps with built-in power supply unit (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

31000S.2B
31000S.2B - Lower 2M path light button white
31000S.2G
31000S.2G - Lower 2M path light button black
31000S.2C
31000S.2C - Lower 2M path light button canvas
31000A.2B
31000A.2B - Axial button 2M white
31000A.2G
31000A.2G - Axial button 2M black
31000A.2C
31000A.2C - Axial button 2M Canvas
31000.2B
31000.2B - Button 2M white
31000.2G
31000.2G - Button 2M black
31000.2C
31000.2C - Button 2M Canvas
00943.W
00943.W - Linea 110-250V white LED unit

Drawings

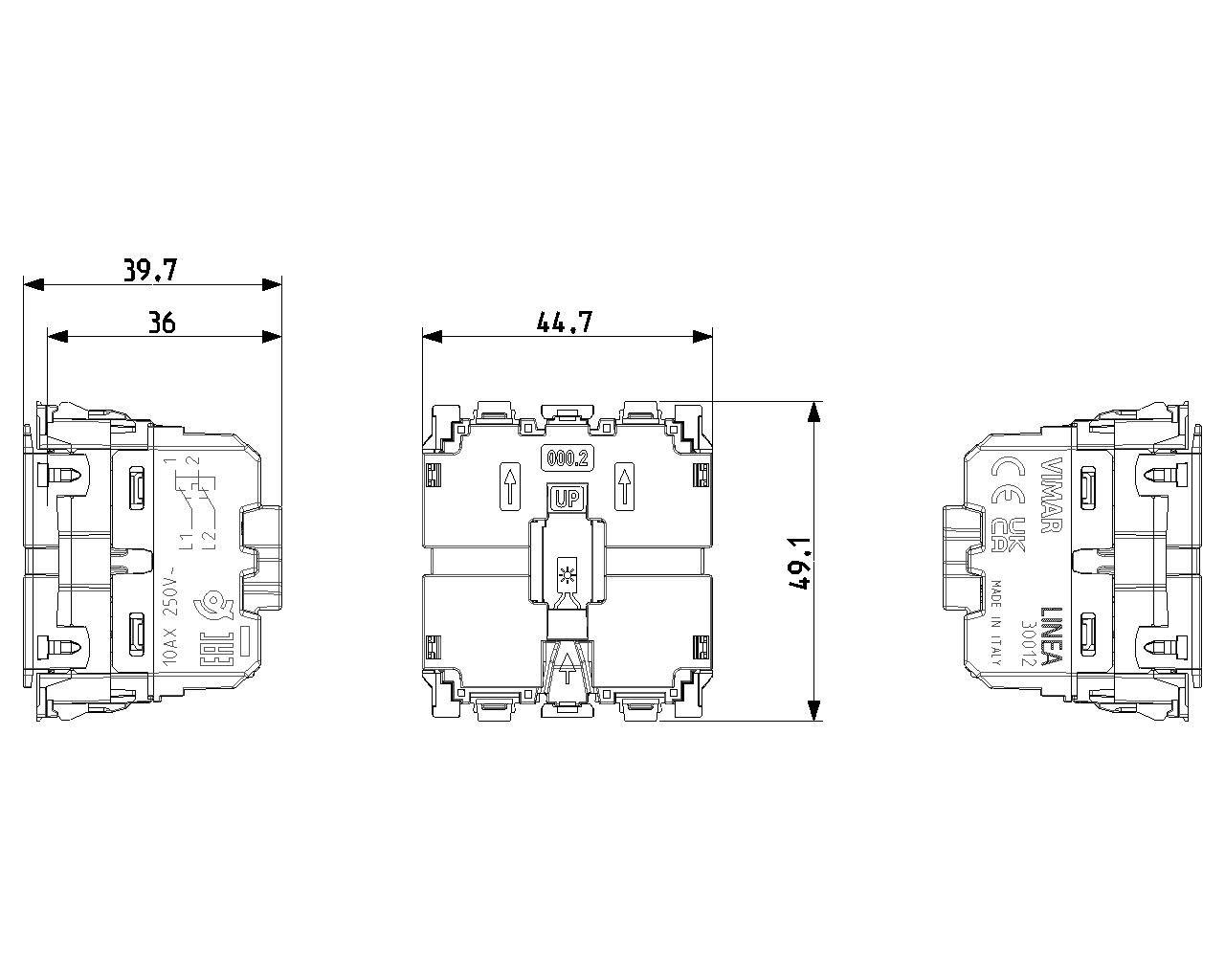

view encumbered art. 30012.2
PNG DXF

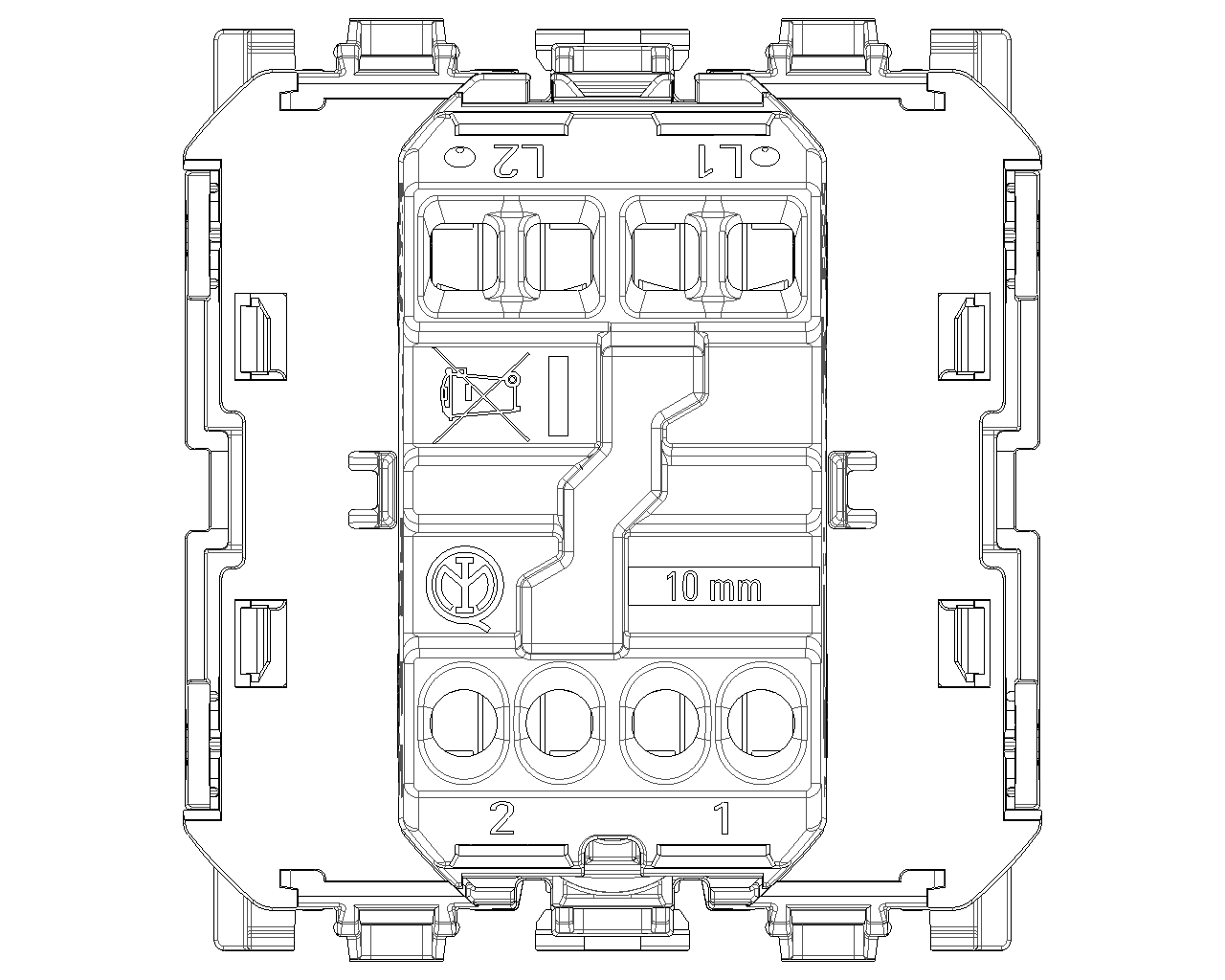

rear view art. 30012.2
PNG DXF
3D view art. 30012.2
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Alternating-/alternating switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
No
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
RAL-number (similar)
7021
Label space/information surface
No
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Impact strength
Other
Nominal voltage
250 V
Rated current
10,00 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device width
44,70 mm
Device height
49,10 mm
Device depth
39,70 mm
Built-in depth
36,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352723153
1 NR
5.2x4.3x5.6 [cm]
43.44 [g]
Barcode Qty 20 NR
8007352723160
20 NR
23x11x12.4 [cm]
964.9 [g]
Barcode Qty 120 NR
8007352723177
120 NR
35x25x27.5 [cm]
6,125.4 [g]
