1P 10AX rocker revers.switch +LED canvas - 30032.LC

Pdf

30032.LC
Wiring devices / Traditional wiring devices / LINEA / Devices

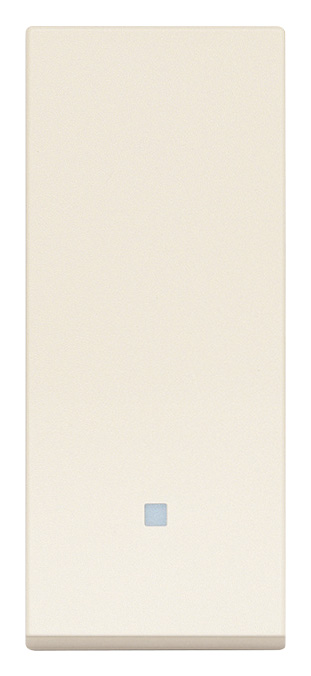

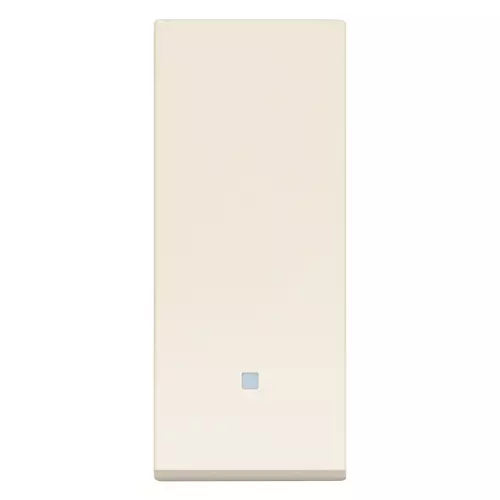

1P 10AX rocker revers.switch +LED canvas
1P 10 AX 250 V~ reversing switch with 250V~ white LED, canvas. Max 100 W for lamps with built-in power supply unit (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

Drawings

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Intermediate switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Beige
RAL-number (similar)
7032
Label space/information surface
No
Illumination
Yes
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Impact strength
Other
Nominal voltage
250 V
Rated current
10,00 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device width
22,30 mm
Device height
52,80 mm
Device depth
35,60 mm
Built-in depth
27,20 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

13. SNI - Indonesia

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352690332
1 NR
3.6x2.7x5.6 [cm]
33.4 [g]
Barcode Qty 50 NR
8007352690349
50 NR
19x14.2x12.4 [cm]
1,766.6 [g]
Barcode Qty 300 NR
8007352690356
300 NR
47x22x27.5 [cm]
10,992 [g]
