1P 10AX switch canvas - 30060.C

Pdf
Vimar - 30060.C - 1P 10AX switch canvas
Vimar - 30060.C - 1P 10AX switch canvas

30060.C
Wiring devices / Traditional wiring devices / LINEA / Devices

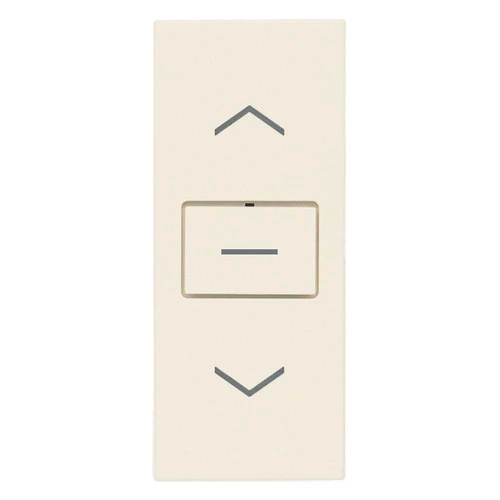

1P 10AX switch canvas
1P 10 AX 250 V~ switch, with two buttons, direction arrows and central OFF position, canvas. Max 100 W for lamps with built-in power supply unit (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 30060.C
PNG DXF
rear view art. 30060.C
PNG DXF
3D view art. 30060.C
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Number of revolving contacts
0
Contactless type
No
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
With light source
No
With signal lamp
No
Feedback-signal contact
No
Connection type
Screwed terminal
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Beige
RAL-number (similar)
7032
Transparent
No
Label space/information surface
No
Imprint
Other
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
52,80 mm
Device depth
30,90 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352690561
1 NR
4.6x2.7x5.6 [cm]
27.8 [g]
Barcode Qty 10 NR
8007352690578
10 NR
14.6x10x6.6 [cm]
324.8 [g]
Barcode Qty 120 NR
8007352690585
120 NR
31x22x21 [cm]
4,175 [g]
