Flat 2P+E P40 Universal outlet white - 30211.B

Pdf
Vimar - 30211.B - Flat 2P+E P40 Universal outlet white
Vimar - 30211.B - Flat 2P+E P40 Universal outlet white

30211.B
Wiring devices / Traditional wiring devices / LINEA / Devices

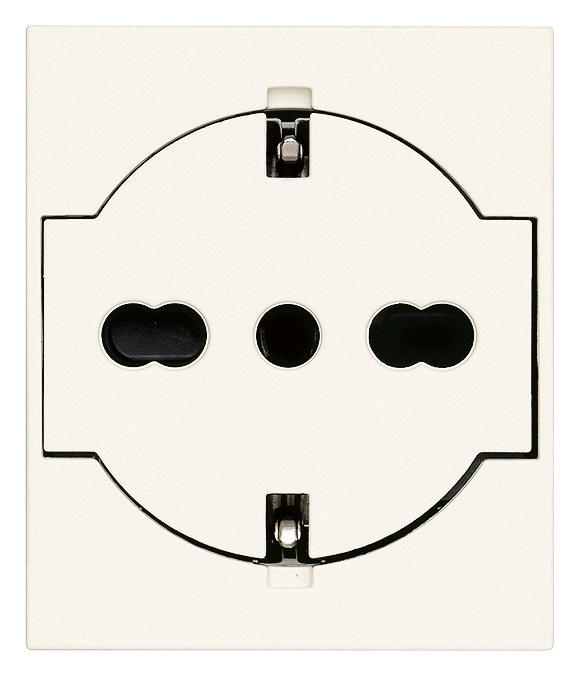

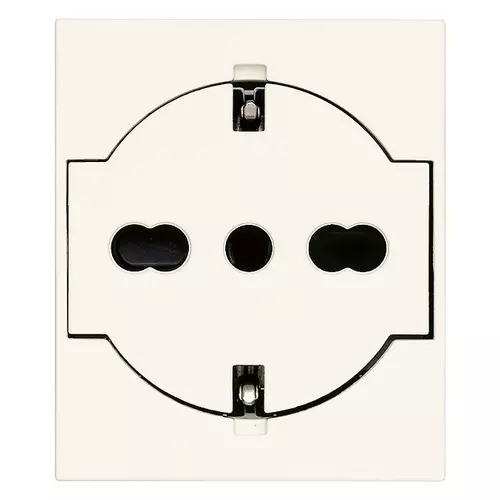

Flat 2P+E P40 Universal outlet white
SICURY 2P+T 16 A 250 V~ universal socket outlet, Italian standard P40, flush-fitting, white - 2 modules

Product Status
3 - Active

Drawings

view encumbered art. 30211.B
PNG DXF
rear view art. 30211.B
PNG DXF
3D view art. 30211.B
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of active contacts (round)
0
Number of active contacts (flat)
0
Number of active contacts (square)
0
With signal lamp
No
Number of ports USB-A
0
Number of ports USB-C
0
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
Other
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
No special power supply
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Rated fault current
0 mA
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
52,80 mm
Device depth
36,10 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
For heavy conditions according to VDE
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352676350
1 NR
5.2x4.3x5.6 [cm]
50 [g]
Barcode Qty 20 NR
8007352676367
20 NR
23x11.2x12.8 [cm]
1,098 [g]
Barcode Qty 120 NR
8007352676374
120 NR
35x25x27.5 [cm]
6,924 [g]
Barcode Qty 3,240 NR
8007352750067
3,240 NR
120x80x105 [cm]
186,948 [g]
