30318.B
Wiring devices / Traditional wiring devices / LINEA / Devices

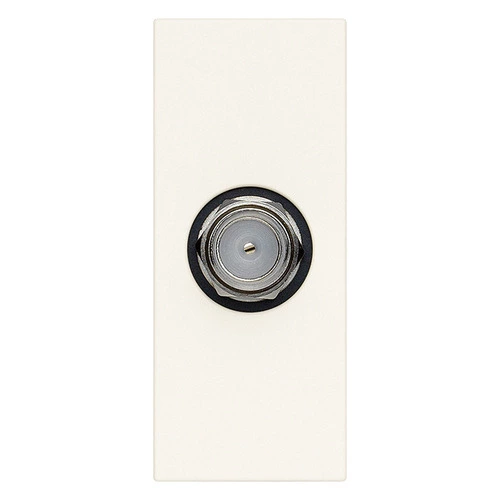

F type female socket connector white
Coaxial socket outlet with female connector type F (IEC 60169-24), white. For frequencies up to 2400 MHz. Connection at input and output via male connector type F 01654
Product Status
3 - Active
Drawings
Class group
Antenna and satellite technique
Antenna and satellite technique
Class
Antenna socket box
Antenna socket box
Model
End socket
End socket
Mounting method
Flush-mounted
Flush-mounted
Number of modules (module system)
1
1
Cover
None
None
Number of outlets
1
1
Suitable for cable modem
No
No
Suitable for remote power supply
Yes
Yes
Type of fastening
Snap mounting (engagement)
Snap mounting (engagement)
Colour
White
White
RAL-number (similar)
9016
9016
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Anti-bacterial treatment
No
No
Degree of protection (IP)
IP20
IP20
Device width
2.230,00 mm
2.230,00 mm
Device height
5.280,00 mm
5.280,00 mm
Device depth
2.985,00 mm
2.985,00 mm
Minimum order quantity: 10 NR
Barcode
8007352681187
1 NR
3.6x2.7x5.6 [cm]
14.4 [g]
8007352681194
10 NR
14.2x7.8x6.2 [cm]
183.2 [g]
8007352681200
160 NR
34x30x15 [cm]
3,272 [g]
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
