LED-step marker lamp black - 30389.G

Pdf
Vimar - 30389.G - LED-step marker lamp black
Vimar - 30389.G - LED-step marker lamp black

30389.G
Wiring devices / Traditional wiring devices / LINEA / Devices

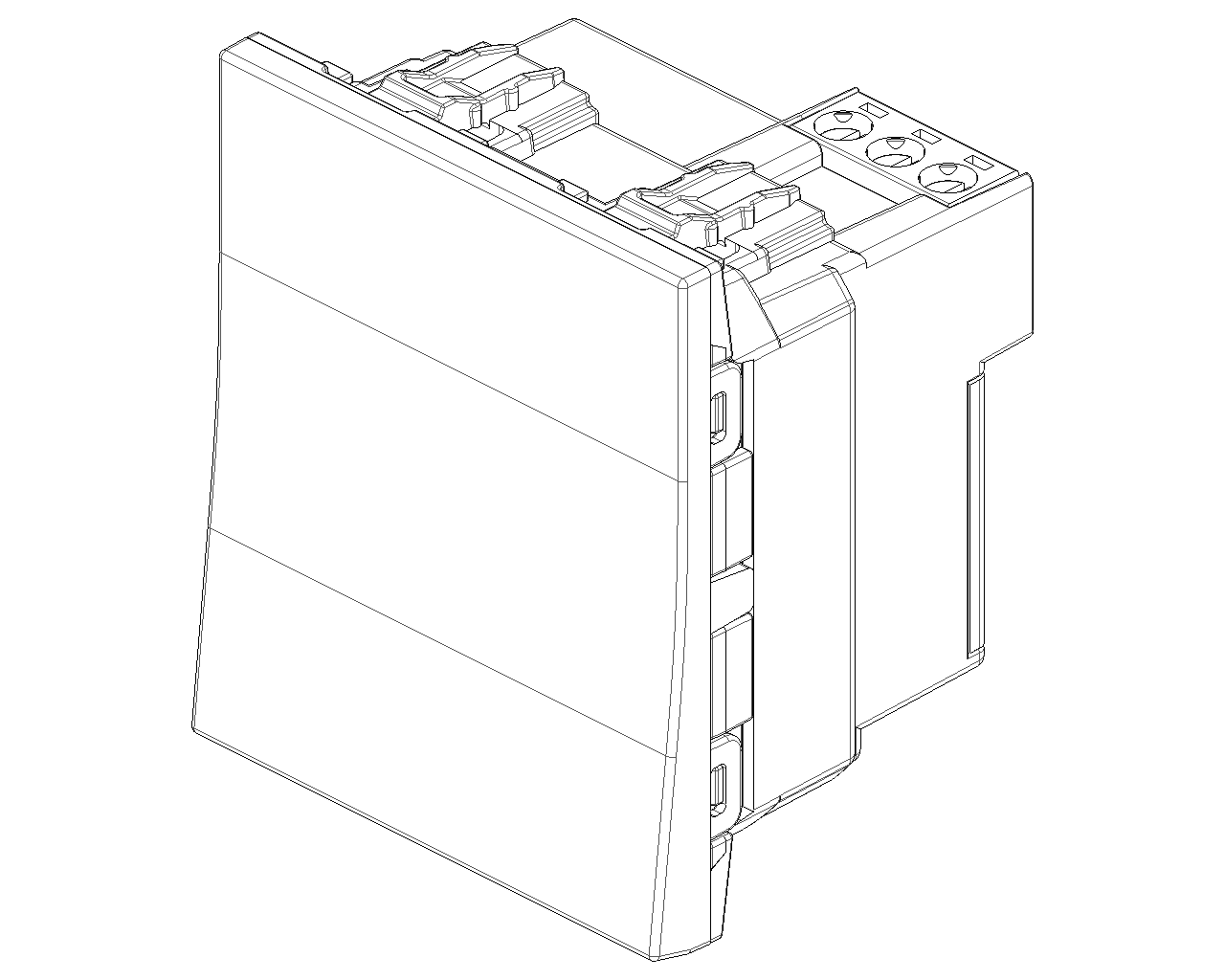

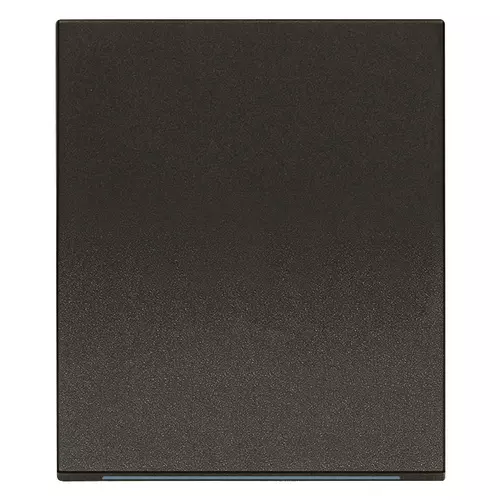

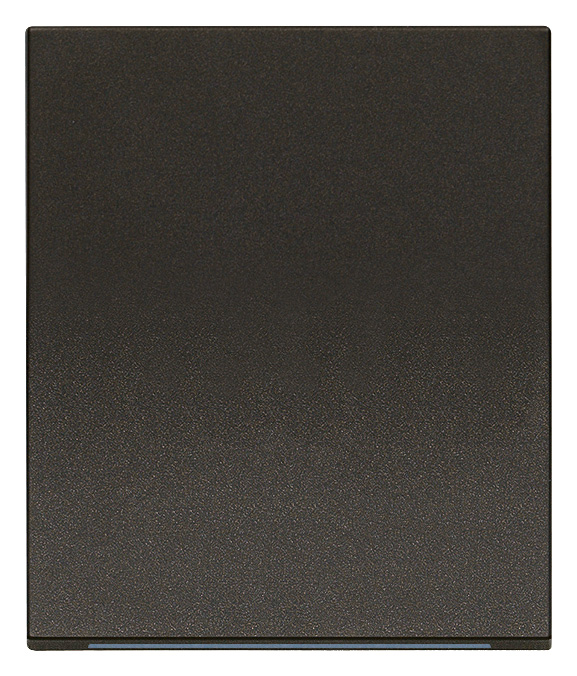

LED-step marker lamp black

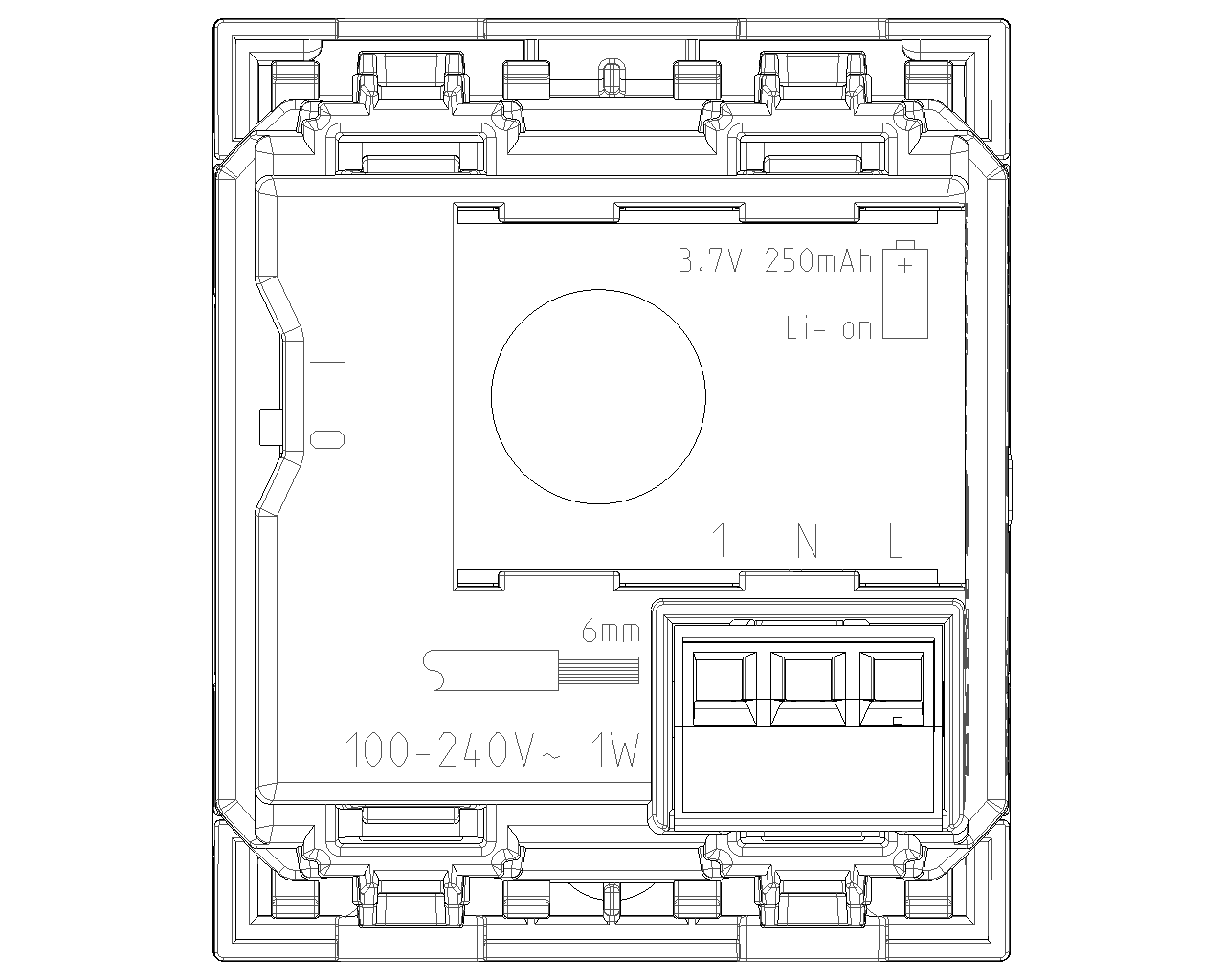

Step marker lamp with high efficiency LEDs 100-240 V~ 50/60 Hz, can also be used as an auxiliary emergency light with the addition of the dedicated Li-ion rechargeable battery, range of 2.5 hours, black- 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
Number of modules (module system)
2
With light source
Yes
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
RAL-number (similar)
7021
Transparent
No
Colour light source
White
Suitable for degree of protection (IP)
IP40
Nominal voltage
240 V
Power consumption
1 W
Device width
44,4 mm
Device height
52,8 mm
Device depth
38,8 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352735439
1 NR
6x5.4x5.2 [cm]
49 [g]
Barcode Qty 10 NR
8007352735446
10 NR
28.1x13.1x6 [cm]
573.2 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
