30575.B
Smart systems&products / KNX / LINEA / Devices

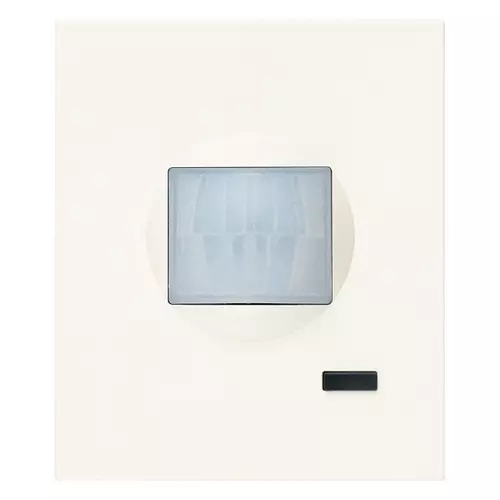

KNX IR detector white
Passive infrared motion detector, KNX standard, white - 2 modules
Product Status
3 - Active
Drawings
Class group
Installation bus systems
Installation bus systems
Class
Movement sensor for bus system
Movement sensor for bus system
Bus system KNX
Yes
Yes
Bus system KNX-RF (Radio Frequency)
No
No
Bus system radio frequency
No
No
Bus system LON
No
No
Bus system Powernet
No
No
Other bus systems
Other
Other
Radio frequency bidirectional
No
No
Model
Movement sensor
Movement sensor
Mounting method
Flush-mounted
Flush-mounted
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
White
White
RAL-number (similar)
9016
9016
Transparent
No
No
With bus connection
Yes
Yes
Substation input
No
No
Creep-under protection
No
No
Operation mode switch
Yes
Yes
Animal zone
No
No
Staircase light controller
Yes
Yes
Response value luminosity adjustable
Yes
Yes
Teach-function for response value luminosity
No
No
Switch-off delay self-learning
No
No
DALI-2 certified
No
No
Max. reach sideways
10,00 m
10,00 m
Max. reach frontally
10 m
10 m
Diameter reach on floor
0 m
0 m
Detection angle vertical
0 - 36
0 - 36
Detection angle horizontal
0,00 - 112,00
0,00 - 112,00
Switching power
0 W
0 W
Minimum order quantity: 1 NR
Barcode
8007352691803
1 NR
6x5.4x5.2 [cm]
44.65 [g]
8007352691810
10 NR
28.1x13.1x6 [cm]
534 [g]
