30654.40
Wiring devices / Traditional wiring devices / LINEA / Cover plates

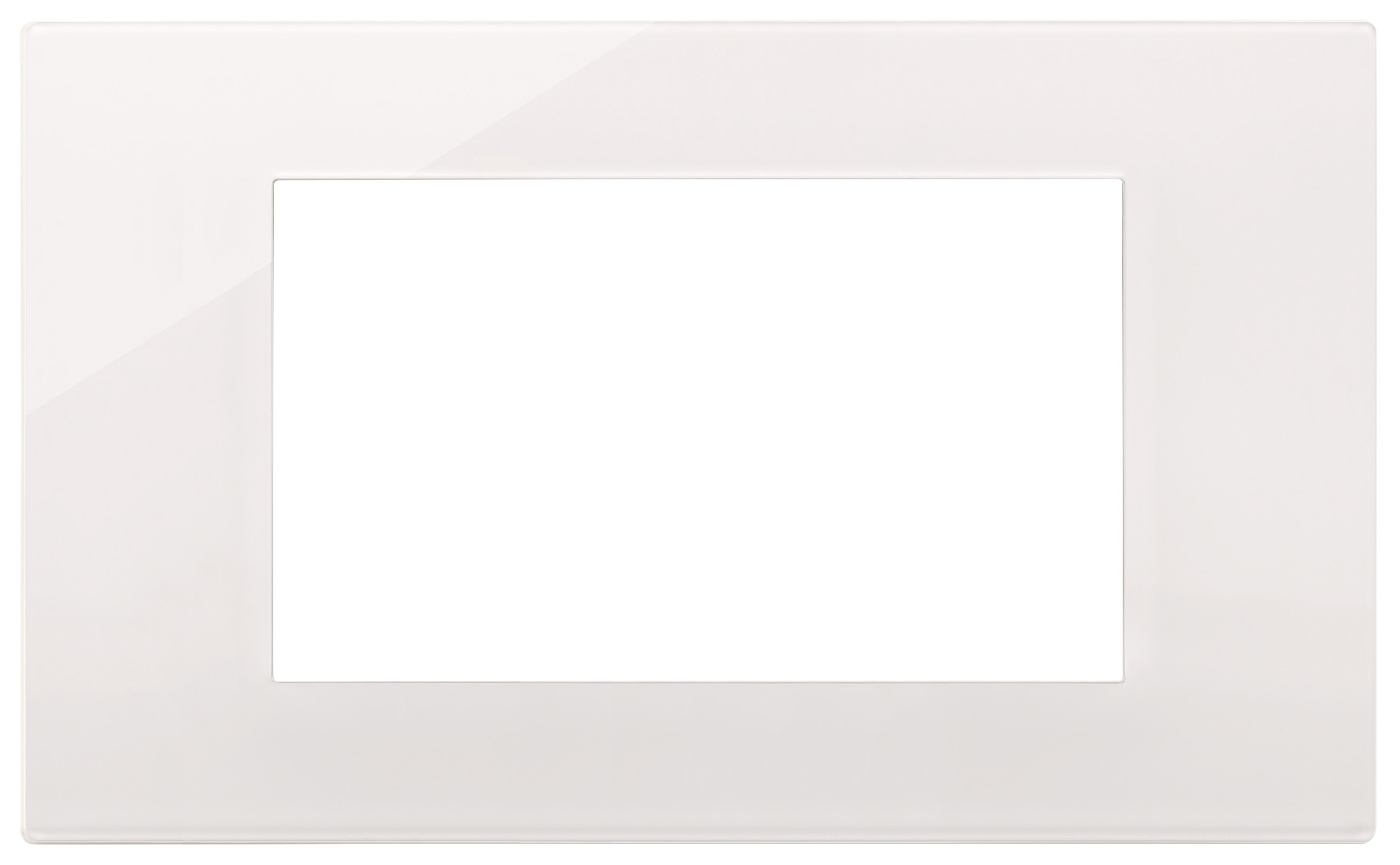

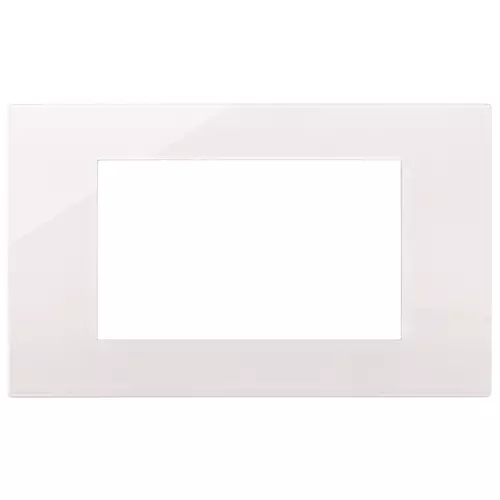

Plate 4M techno Reflex white
4-module cover plate, technopolymer, White Reflex
Product Status
3 - Active
You may also be interested in
Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Cover frame for domestic switching devices
Cover frame for domestic switching devices
Number of units
4
4
Mounting direction
Horizontal and vertical
Horizontal and vertical
Number of units horizontal
4
4
Number of units vertical
1
1
Number of modules horizontal (module system)
4
4
Number of modules vertical (module system)
1
1
With mounting grid
Yes
Yes
Flush-mounted installation
Yes
Yes
Suitable for subfloor installation duct box
Yes
Yes
Suitable for wall duct
Yes
Yes
Suitable for built-in installation
Yes
Yes
Label space/information surface
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Glossy
Glossy
Colour
White
White
RAL-number (similar)
9016
9016
Transparent
No
No
With hinged lid
No
No
Degree of protection (IP)
IP00
IP00
Type of fastening
Engage (snap)
Engage (snap)
Width
146,60 mm
146,60 mm
Height
88,00 mm
88,00 mm
Depth
10,30 mm
10,30 mm
Built-in width
146,60 mm
146,60 mm
Built-in height
4,70 mm
4,70 mm
Diameter bore hole (opening)
0 mm
0 mm
00. CE Marking - EU
Minimum order quantity: 10 NR
Barcode
8007352687523
1 NR
9.7x21x0.9 [cm]
35.2 [g]
8007352687530
10 NR
21.5x11.5x10.5 [cm]
438.2 [g]
8007352787735
100 NR
56.5x25x21.5 [cm]
4,801 [g]
8007352687547
150 NR
59x38.5x24 [cm]
7,330 [g]
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
