Pixel Up A/V entrance panel IP copper - 40415.07

Pdf
Vimar - 40415.07 - Pixel Up A/V entrance panel IP copper
Vimar - 40415.07 - Pixel Up A/V entrance panel IP copper

40415.07
ELVOX Door entry system / IP video door entry system / Video / IP video outdoor stations

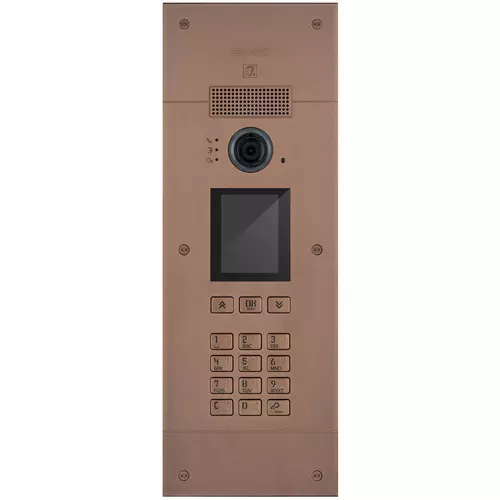

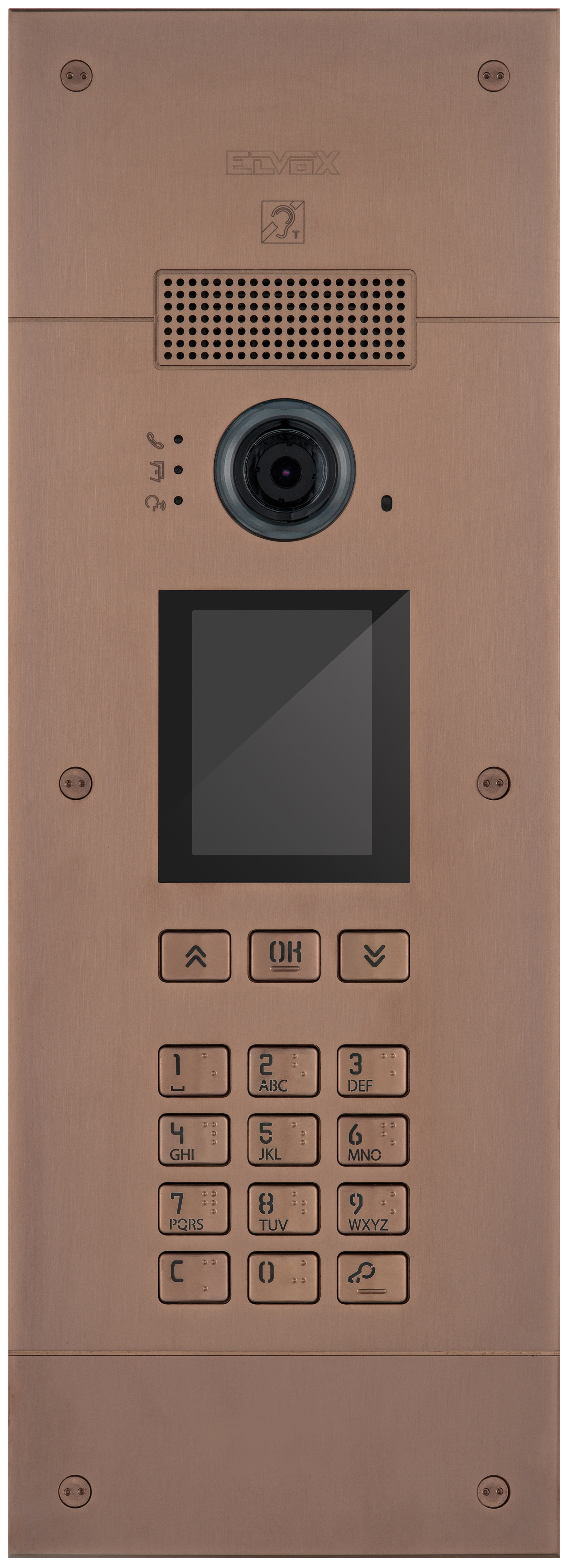

Pixel Up A/V entrance panel IP copper
Colour audio video IP entrance panel with keypad, display and electronic contacts list, complete with metal flush mounting box, copper

Product Status
3 - Active

You may also be interested in

40440.07
40440.07 - Pixel Up surface box copper
Class group
Communication technique (components and systems)
Class
Door station door communication
Installation technique
Bus system
Mounting method
Flush-mounted
Operation mode
Push button
Modular construction
No
With info sign
Yes
With cover
No
With digital door code
Yes
With audio induction loop
Yes
Vandal proof
No
With camera
Yes
Manual adjustable camera
No
Opening angle camera
104
Material front
Stainless steel
Front plate height
405,00 mm
Front plate width
145,00 mm
Colour
Other
Height
405,00 mm
Width
145,00 mm
Depth
63,00 mm
Built-in height
382,00 mm
Built-in width
124,00 mm
Built-in depth
60,00 mm
Degree of protection (IP)
IP54
Impact strength
IK08
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352705722
1 NR
16.5x42x7.5 [cm]
2,150 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
