Entrance panel for 1-fam. 7in video kit - 40921.P1

Pdf
Vimar - 40921.P1 - Entrance panel for 1-fam. 7in video kit
Vimar - 40921.P1 - Entrance panel for 1-fam. 7in video kit

40921.P1
ELVOX Door entry system / Other video door entry systems / Video / Easy Up video outdoor stations

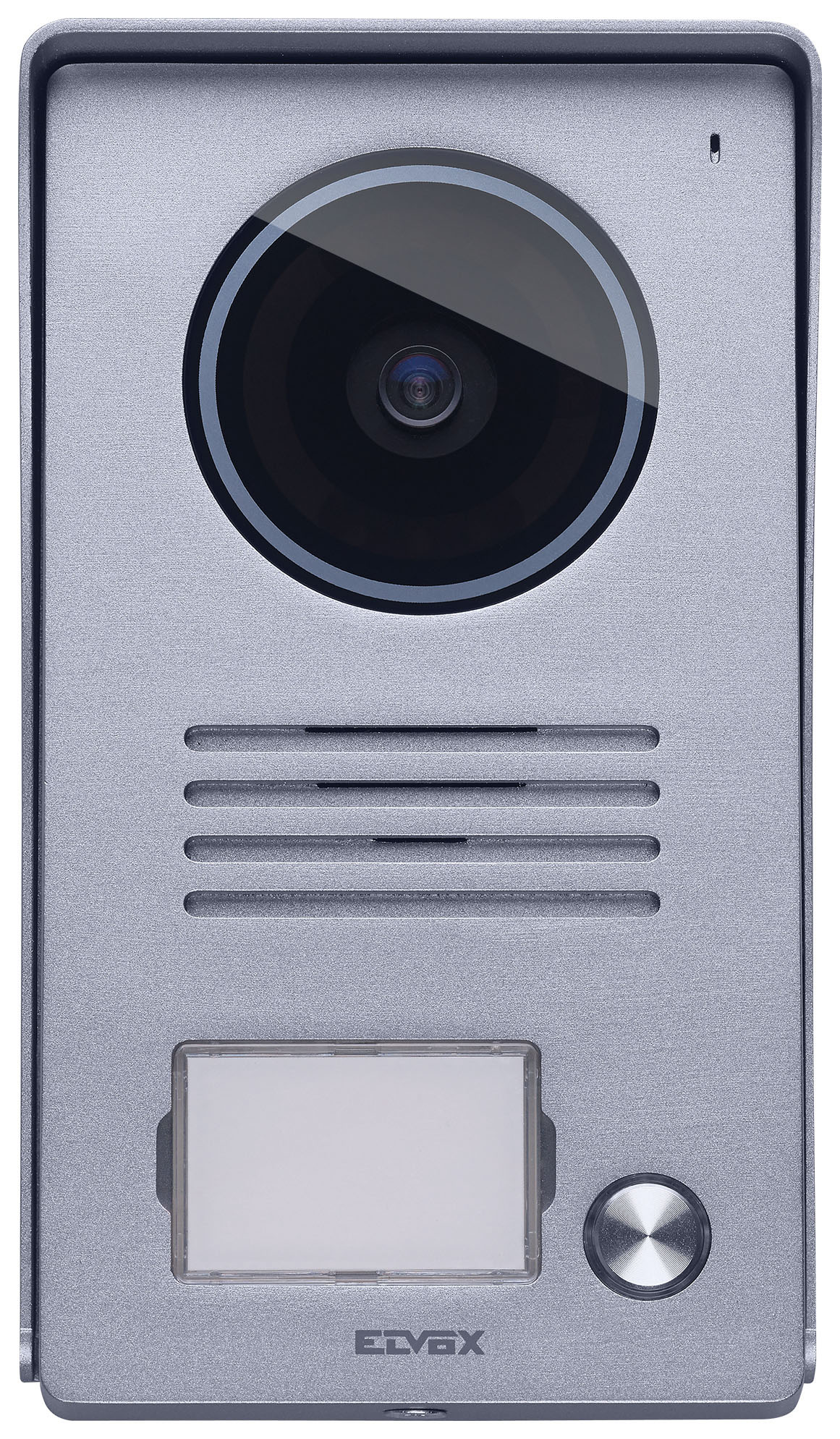

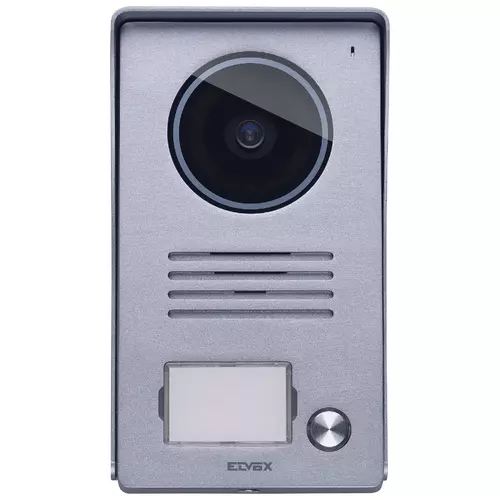

Entrance panel for 1-fam. 7in video kit
1-button audio/video entrance panel for 7in LCD hands-free video entryphone, with rainproof cover, for surface mounting

  • Metal entrance panel complete with rain guard, with high protection degree against atmospheric agents (IP44) and impacts (IK07); easily surface mounted using the screws and plugs supplied
  • Possibility of connecting up to 2 panels in the same system; up to 3 monitors can be associated with each push button
  • Colour camera with a 120° horizontal coverage angle, 1000 TV line resolution and white LEDs for night-time visibility
  • 2-wire connection between panel and monitor, maximum distance between the entrance panel and the last monitor: up to 100 m with 1 mm2
  • Possibility of connecting an ELVOX CCTV camera to each entrance panel in the system

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Communication technique
Class
Door station door communication
Installation technique
Bus system
Mounting method
Surface mounted
Modular construction
No
With info sign
Yes
With cover
No
Vandal proof
No
With camera
Yes
Colour
Grey

00. CE Marking - EU

35. RCM - Australia

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406310941
1 NR
10.7x4.8x19.8 [cm]
484 [g]
Barcode Qty 25 NR
8013406310958
25 NR
56.4x28.8x23 [cm]
12,100 [g]
Question: Can further external lock release push buttons be connected to 2 Fili entryphones?
Answer: This is not possible directly from the kit.
