Entrance panel for 2-fam. 7in video kit - 40921.P2

Pdf
40921.P2

ELVOX Door entry / Exclusive / Exclusive

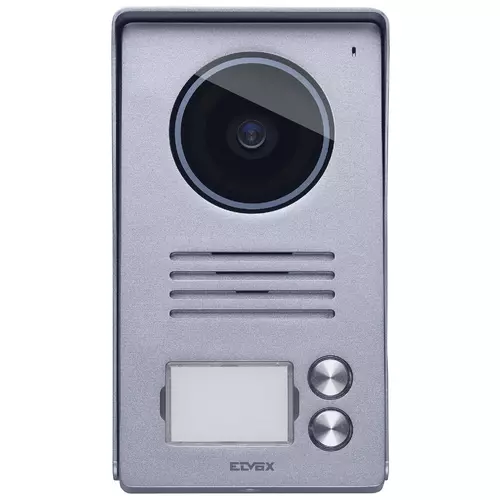

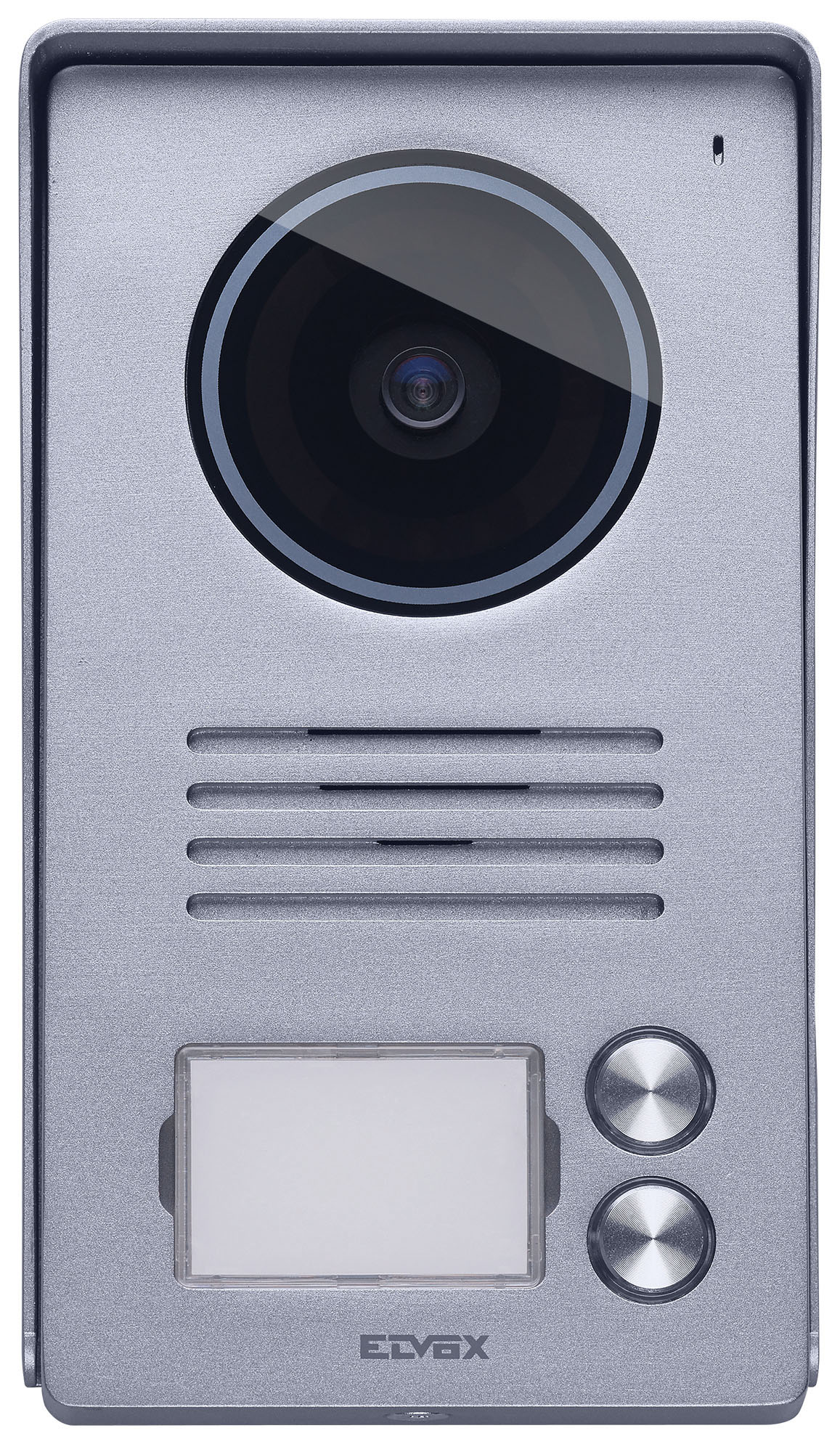

Entrance panel for 2-fam. 7in video kit
2-button audio/video entrance panel for LCD 7in hands-free video entryphone, with rainproof cover, for surface mounting

  • Metal entrance panel complete with rain guard, with high protection degree against atmospheric agents (IP44) and impacts (IK07); easily surface mounted using the screws and plugs supplied
  • Possibility of connecting up to 2 panels in the same system; up to 3 monitors can be associated with each push button
  • Colour camera with a 120° horizontal coverage angle, 1000 TV line resolution and white LEDs for night-time visibility
  • 2-wire connection between panel and monitor, maximum distance between the entrance panel and the last monitor: up to 100 m with 1 mm2
  • Possibility of connecting an ELVOX CCTV camera to each entrance panel in the system

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Communication technique
Class
Door station door communication
Installation technique
Bus system
Mounting method
Surface mounted (plaster)
Modular construction
No
With info sign
Yes
With cover
No
Vandal proof
No
With camera
Yes
Colour
Grey

00. CE Marking - EU

00. CE Marking - EU

28. NSW / RCM - Australia

37. Marking - Morocco

92. RoHS UAE

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406310965
1 NR
10.7x4.8x19.8 [cm]
484 [g]
Barcode Qty 25 NR
8013406310972
25 NR
56.4x28.8x23 [cm]
12,100 [g]
