Heavy teleloop A/V frontmod.4B/2IK10IP54 - 41274

Pdf
41274

ELVOX Door entry / Universal components / Pixel Heavy

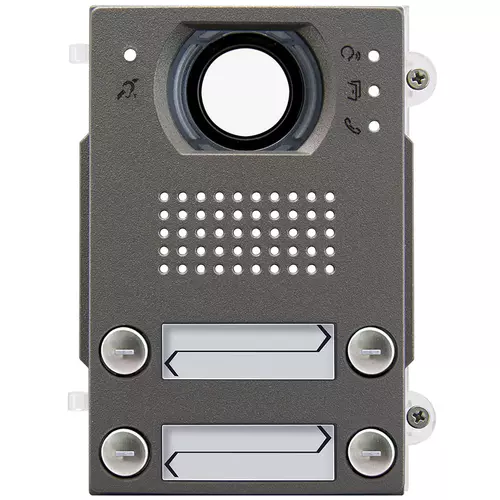

Heavy teleloop A/V frontmod.4B/2IK10IP54
4 (2+2)-button audio/video front module with teleloop symbol for hearing aid function, Pixel Heavy, for 41005 and 41006.1 audio/video electronic unit, sable grey. IP54 protection degree for athmosferic agents and IK10 against impacts

Product Status
3 - Active

Class group
Communication technique
Class
Mounting element for indoor station door communication
Material
Aluminium
Colour
Grey

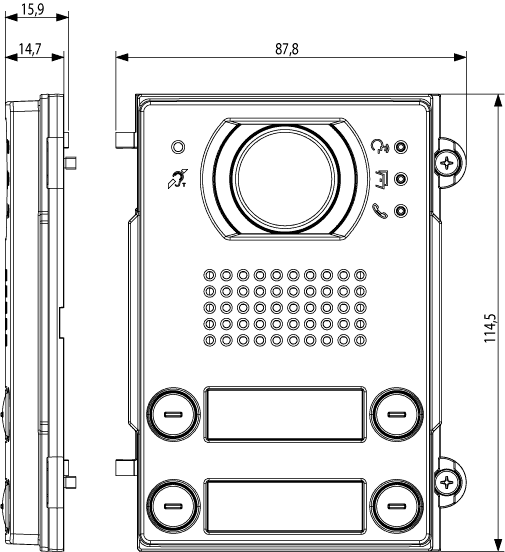

Height
114,50 mm
Depth
15,90 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406276711
1 NR
12x9.1x1.9 [cm]
235.8 [g]
Barcode Qty 5 NR
8013406276728
5 NR
13.3x10.2x10 [cm]
1,226 [g]
