Plate for 7in Video kit with RFID reader - 42920.P

Pdf
Vimar - 42920.P - Plate for 7in Video kit with RFID reader
Vimar - 42920.P - Plate for 7in Video kit with RFID reader

42920.P
ELVOX Door entry system / Other video door entry systems / Video / Easy Up video outdoor stations

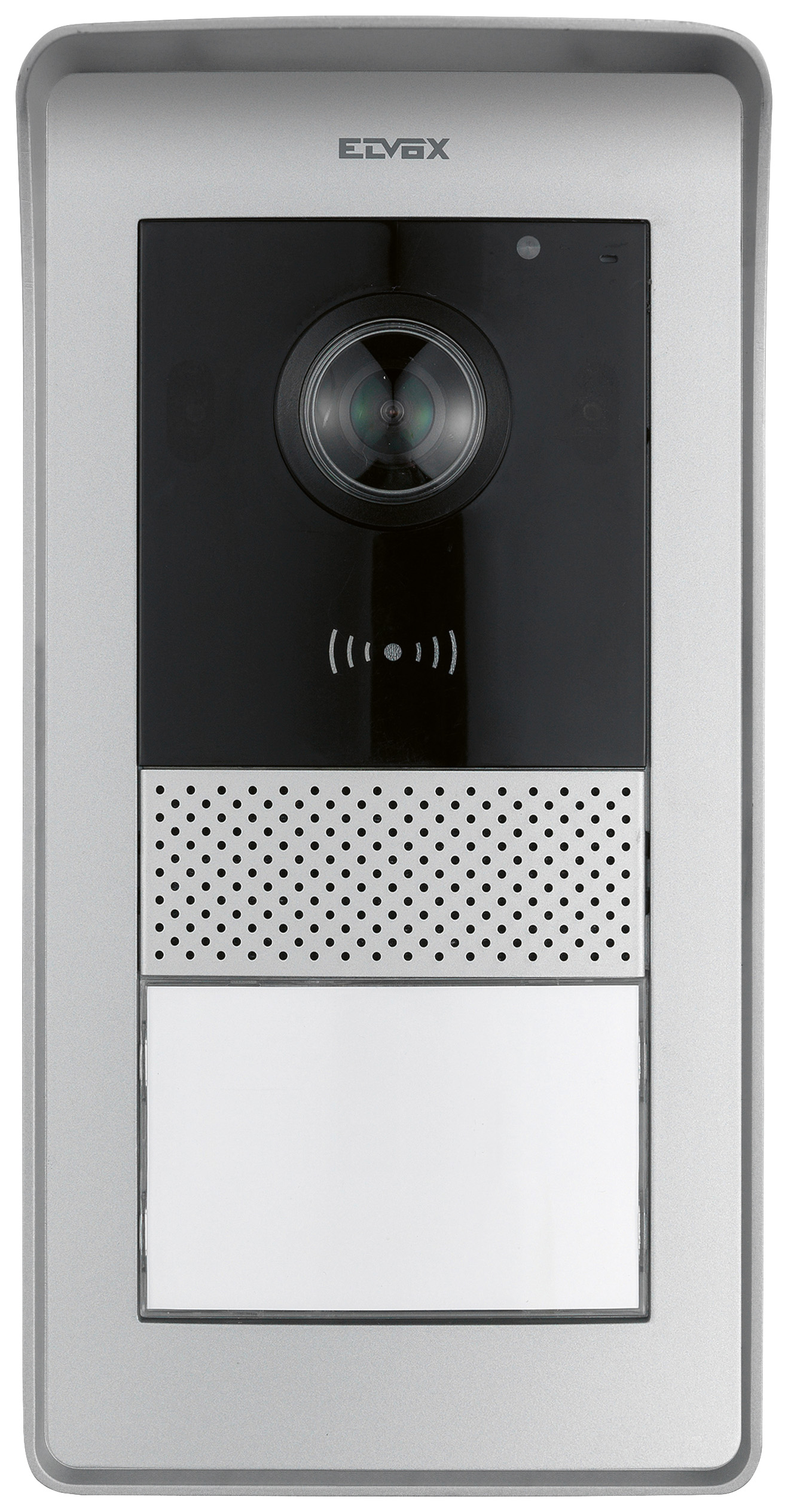

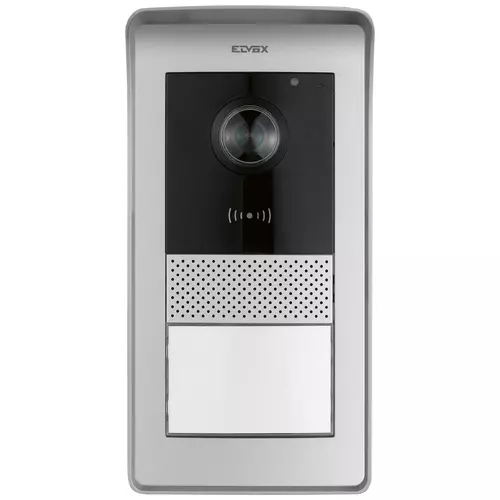

Plate for 7in Video kit with RFID reader
Audiovideo entrance panel for 7-inch LCD colour hands-free video entryphone, RFID door release function, with rain-proof frame, 1 push button, surface mounting, transponder RFID cards not supplied

Product Status
3 - Active

You may also be interested in

40169
40169 - 7 Mifare RFID keys
42920.K
42920.K - 1-2-4 button kit for RFID Video kit plat

Sheets, Manuals, Documentation

Drawings

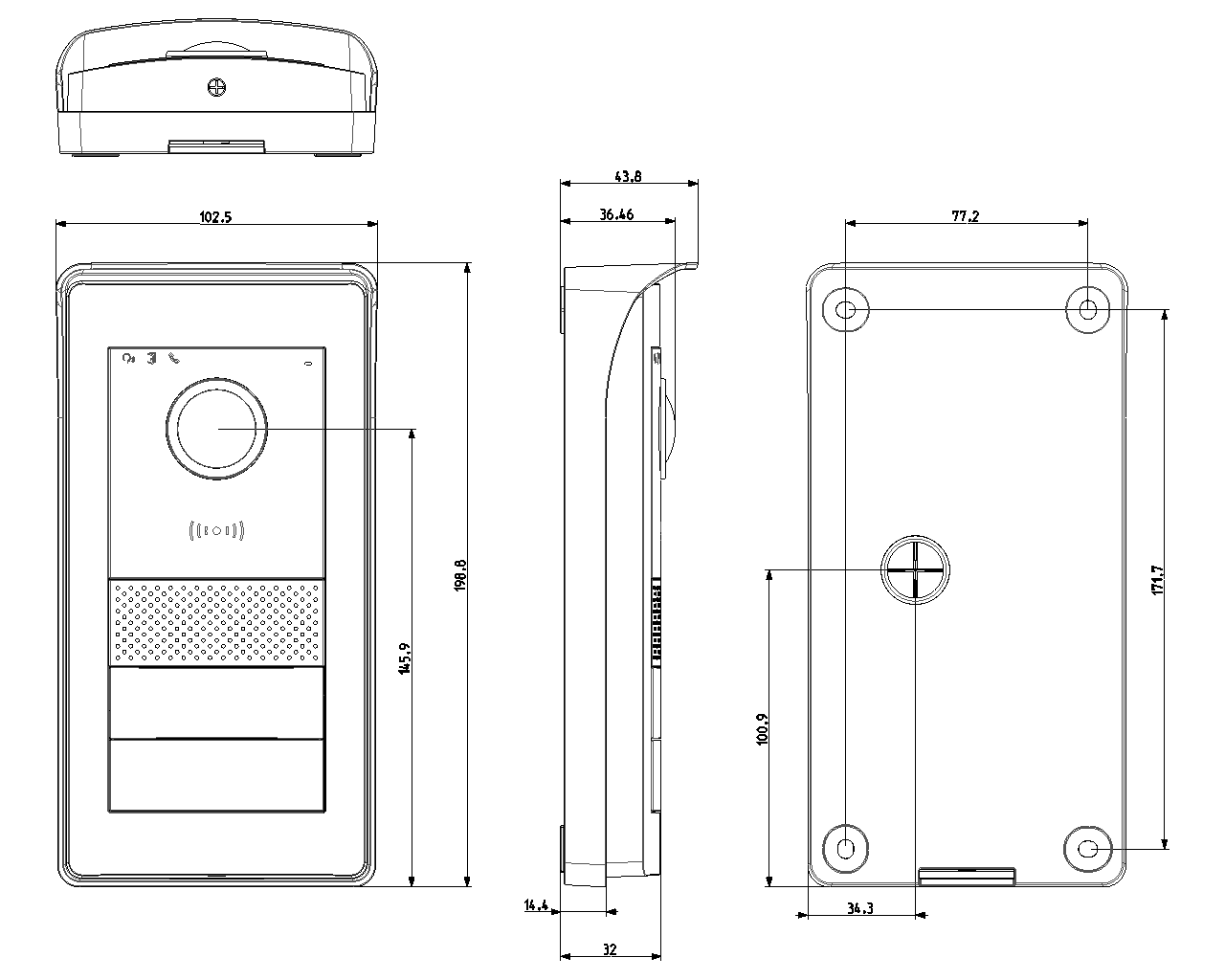

view encumbered art. 42920.P
PNG DXF
rear view art. 42920.P
PNG DXF

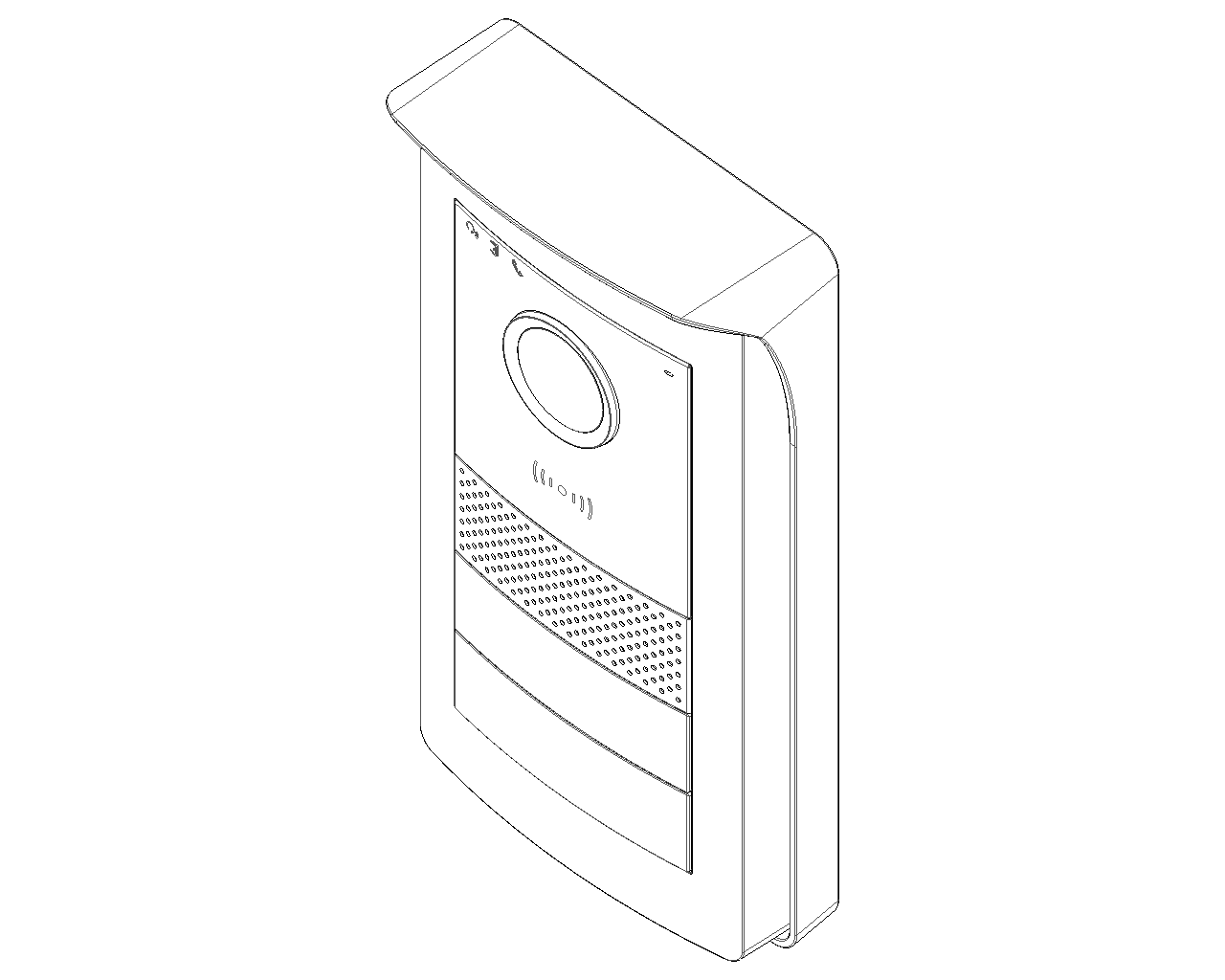

3D view art. 42920.P
PNG DXF
Class group
Communication technique (components and systems)
Class
Door station door communication
Installation technique
2-wire
Mounting method
Surface mounted
Operation mode
Push button
Number of call buttons
4
Group call function
Yes
Modular construction
No
With info sign
Yes
With cover
Yes
With digital door code
No
With audio induction loop
No
Hearing aid compatible
No
Overhear protected
Yes
Vandal proof
Yes
With camera
Yes
Manual adjustable camera
No
Opening angle camera
130
With display
No
Colour display
No
With display backlight
No
Automatic brightness control
No
Material front
Aluminium
Colour
Grey
Integrated door opening circuit
Yes
Voltage type (supply voltage)
DC
Supply voltage DC
24,00 - 24,10 V
Degree of protection (IP)
IP54
Impact strength
IK07
Wi-Fi
No
Operation by app
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

35. RCM - Australia

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352745001
1 NR
11.2x5.3x21.9 [cm]
520 [g]
Barcode Qty 16 NR
8007352747746
16 NR
45.5x28.3x23.2 [cm]
8,320 [g]
